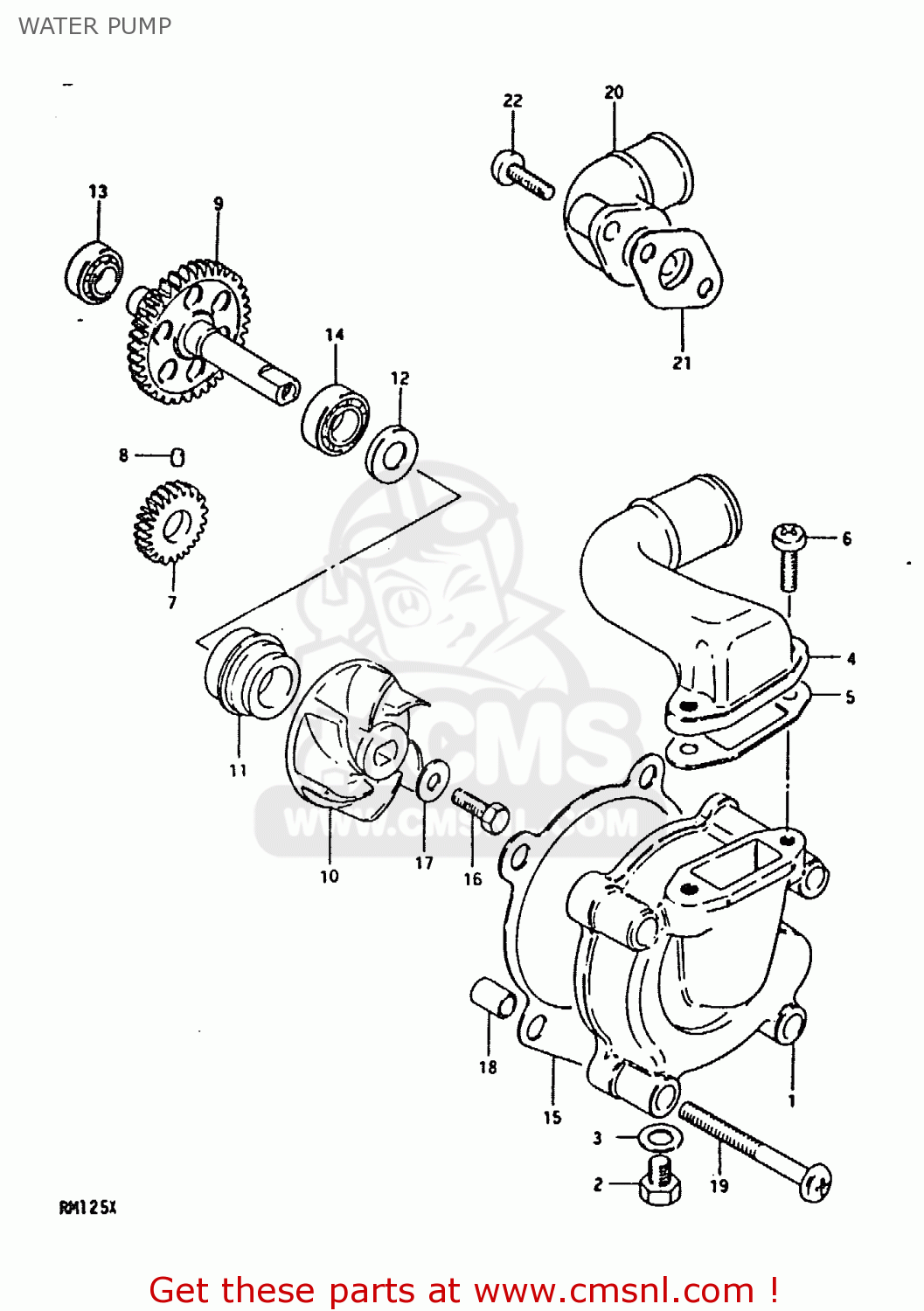

WATER PUMP

ref

part #

description

quantity

1

1741114100
ref: 1

CASE,WATER PUMP

€ 81.50

2

0110708128
ref: 2

BOLT 8X12

€ 2.50

3

1741314100
ref: 3

GASKET,DRAIN (NAS)

€ 1.00

4

1741214100
ref: 4

CONNECTOR

€ 44.00

5

1743214100
ref: 5

GASKET,WATER PUMP INLET (MCA)

€ 2.50

6

0211206165
ref: 6

SCREW

€ 2.00

7

1745114100
ref: 7

GEAR,WATER PUMP DRIVE

€ 19.00

8

0621103052
ref: 8

PIN 3X5

€ 1.50

9

1746114100
ref: 9

SHAFT,WATER PUMP

€ 89.50

10

1749114100
ref: 10

IMPELLER,WATER PUMP

€ 17.00

11

1747014100
ref: 11

SEAL,WATER PUMP SHAFT

€ 21.50

12

0928310004
ref: 12

SEAL,OIL(10X21X5)

€ 4.50

13

0926210004
ref: 13

BEARING(10X22X6)

€ 20.50

14

0926212003
ref: 14

BEARING

€ 19.00

15

1743114100
ref: 15

GASKET,WATER PUMP CASE (MCA)

€ 16.00

16

0910006019
ref: 16

BOLT

€ 1.50

17

0916806016
ref: 17

GASKET (NAS)

€ 3.00

18

0421109129
ref: 18

PIN

€ 2.00

19

0211206458
ref: 19

SCREW (6X45)

€ 2.00

20

1743514100
ref: 20

O-RING,WATER PUMP CASE

€ 25.00

21

1743614100
ref: 21

GASKET,WATER PUMP OUTLET (MCA)

€ 1.50

22

0211206258
ref: 22

SCREW

€ 2.00

all assemblies
