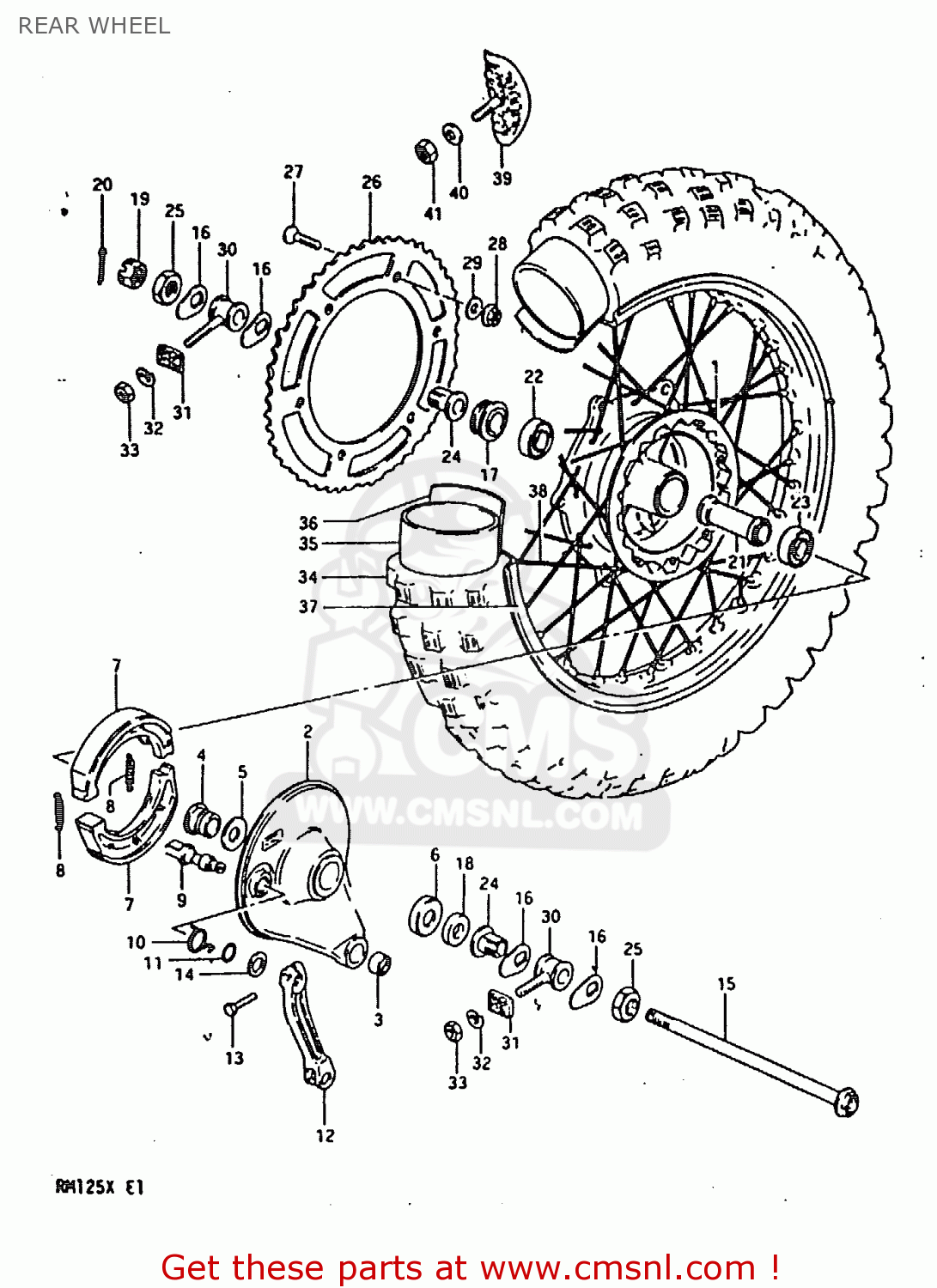

REAR WHEEL

ref

part #

description

quantity

1

6411014102
ref: 1

DRUM,REAR HUB

€ 212.50

2

6420014811
ref: 2

PANEL SET,REAR HUB

€ 177.00

3

6435240401
ref: 3

SPHERICAL BRNG,TORQUE LINK

€ 69.50

4

6421314100
ref: 4

SPACER,RR BRAKE ANCHOR PANEL

€ 17.00

5

0928320031
ref: 5

SEAL,OIL(20X27X5)

€ 5.00

6

6484514100
ref: 6

CVR,RR BRAKE AHR PNL DUST SEAL

€ 10.00

7

6441014100
ref: 7

SHOE,BRAKE (MCA)

€ 41.50

8

0944307001
ref: 8

SPRING(L:34)

€ 2.50

9

5444114100
ref: 9

CAM,FRONT BRAKE

€ 16.00

10

0944830007
ref: 10

SPRING

€ 19.00

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445114100
ref: 12

LEVER,RR BRAKE CAM

€ 62.50

13

0110706258
ref: 13

BOLT

€ 2.00

14

0916012011
ref: 14

WASHER(12.5X20X1)

€ 1.50

15

6471114101
ref: 15

AXLE,REAR

€ 150.50

16

6471214201
ref: 16

WASHER,CHAIN ADJUST GUIDE

€ 3.50

17

6475014200
ref: 17

SPACER,RR AXLE,L

€ 16.00

18

6474114200
ref: 18

SPACER,REAR AXLE,RIGHT

€ 9.50

19

0914114004
ref: 19

NUT

€ 5.00

20

0411130308
ref: 20

COTTER PIN

€ 1.50

21

6473014100
ref: 21

SPACER,REAR HUB BEARING

€ 31.50

22

0812362027
ref: 22

BEARING

€ 14.50

23

0814362027
ref: 23

BEARING

€ 12.50

24

6478114201
ref: 24

SPACER,CHAIN ADJUSTER

€ 27.00

25

0914022006
ref: 25

NUT

€ 6.00

26

6451140261
ref: 26

SPROCKET,RR(NT:51 AL)

€ 87.50

27

0912008004
ref: 27

SCREW(8X33.5)

€ 3.00

28

0831931088
ref: 28

NUT

€ 2.50

29

0832211088
ref: 29

WASHER

€ 2.00

30

6141014201
ref: 30

ADJUSTER,CHAIN

€ 14.00

31

6142114210
ref: 31

PLATE,CHAIN ADJUSTER GUIDE,R

€ 139.50

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0831012088
ref: 33

NUT

€ 2.00

34-1

6510014100
ref: 34-1
IRC

TIRE

€ 114.50

34-2

6510014130
ref: 34-2
BS

TIRE

€ 0.00

35

6520041330
ref: 35

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

36

6526133030
ref: 36

PROTECTOR,INNER TUBE

€ 5.50

37

6531114100
ref: 37

RIM,REAR WHEEL

€ 276.00

38

6532014110
ref: 38

SPOKE SET,REAR WHEEL

€ 50.00

39

6527046910
ref: 39

STOPPER,BEAD

€ 30.50

40

0832211088
ref: 40

WASHER

€ 2.00

41

0831012088
ref: 41

NUT

€ 2.00
