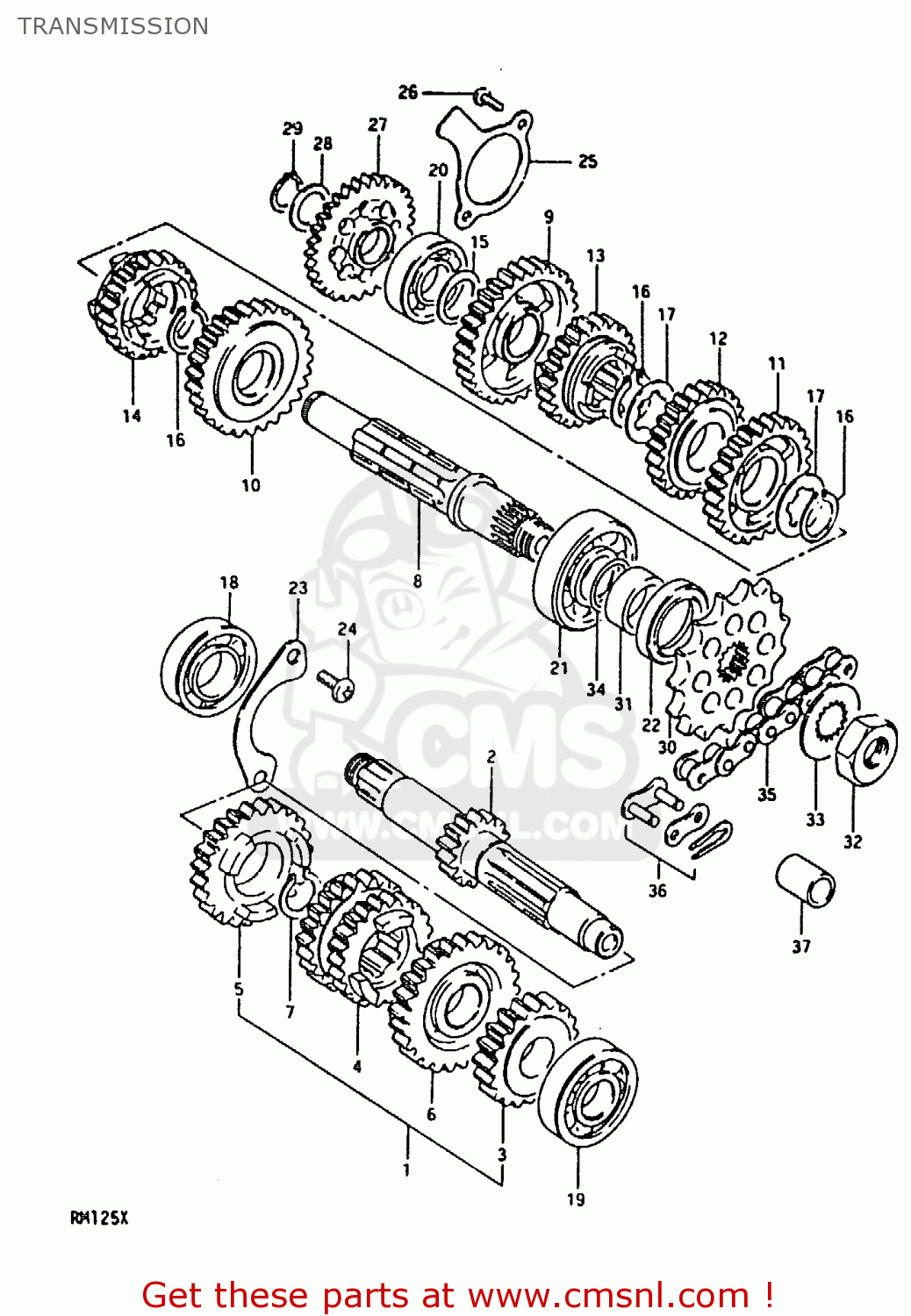

TRANSMISSION

ref

part #

description

quantity

1

2412014101
ref: 1

SHAFT,COUNTER

€ 0.00

2

2412114101
ref: 2

SHAFT,COUNTER

€ 116.50

3

2422114100
ref: 3

GEAR,SECOND DRIVE

€ 42.00

4

2423114101
ref: 4

GEAR,THIRD/FOURTH DRIVE

€ 146.00

5

2425114101
ref: 5

GEAR,FIFTH DRIVE

€ 103.50

6

2426014101
ref: 6

GEAR,SIXTH DRIVE

€ 46.00

7

0938020007
ref: 7

CIRCLIP

€ 3.00

8

2413114101
ref: 8

SHAFT,DRIVE

€ 99.00

9

1431014101
ref: 9

GEAR, 1ST DRIVEN (NT:28)

€ 0.00

10

2432114101
ref: 10

GEAR,SECOND DRIVEN

€ 54.50

11

2433114100
ref: 11

GEAR,THIRD DRIVEN

€ 55.50

12

2434114101
ref: 12

GEAR,FOURTH DRIVEN

€ 55.50

13

2435114101
ref: 13

GEAR,FIFTH DRIVEN

€ 41.00

14

2436114101
ref: 14

GEAR,SIXTH DRIVEN

€ 75.00

15

0821115241
ref: 15

WASHER,THRUST

€ 4.00

16

0938022006
ref: 16

CIRCLIP

€ 3.00

17

0916722011
ref: 17

WASHER,LOCK

€ 3.00

18

0811362040
ref: 18

Bearing

€ 28.00

19

0811360020
ref: 19

BEARING

€ 14.00

20

0811362020
ref: 20

BEARING, RH

€ 14.50

21

0926220043
ref: 21

BEARING(20X47X14)

€ 27.00

22

0928325035
ref: 22

SEAL,OIL(25X40X7)

€ 6.50

23

2474148000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 5.50

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

2475114101
ref: 25

RETAINER,DRIVESHAFT

€ 7.00

26

0211206128
ref: 26

SCREW 6X12

€ 2.00

27

2626014100
ref: 27

GEAR,KICK STARTER IDLE

€ 61.50

28

0821115241
ref: 28

WASHER,THRUST

€ 4.00

29

0833131159
ref: 29

CIRCLIP,15MM

€ 2.00

30-1

2751114110
ref: 30-1
STD

SPROCKET,ENGINE

€ 19.00

30-2

2751114100
ref: 30-2
OPT

SPROCKET,ENGINE

€ 23.50

30-3

2751114120
ref: 30-3
OPT

SPROCKET,ENGINE

€ 27.50

31

0918020039
ref: 31

SPACER(20X25X12.5)

€ 9.50

32

0914016013
ref: 32

NUT

€ 14.00

33

0916720012
ref: 33

WASHER,LOCK

€ 2.50

34

0928020001
ref: 34

O RING(D:1,ID:19.5)

€ 2.00

35

2760014120
ref: 35

CHAIN ASSEMBLY,DRIVE

€ 72.50

36-1

2762010220
ref: 36-1

JOINT ASSEMBLY,CHAIN

€ 4.50

36-2

2762036110
ref: 36-2

JOINT ASSEMBLY,CHAIN

€ 8.50

37

0932013001
ref: 37

CUSHION

€ 6.00
