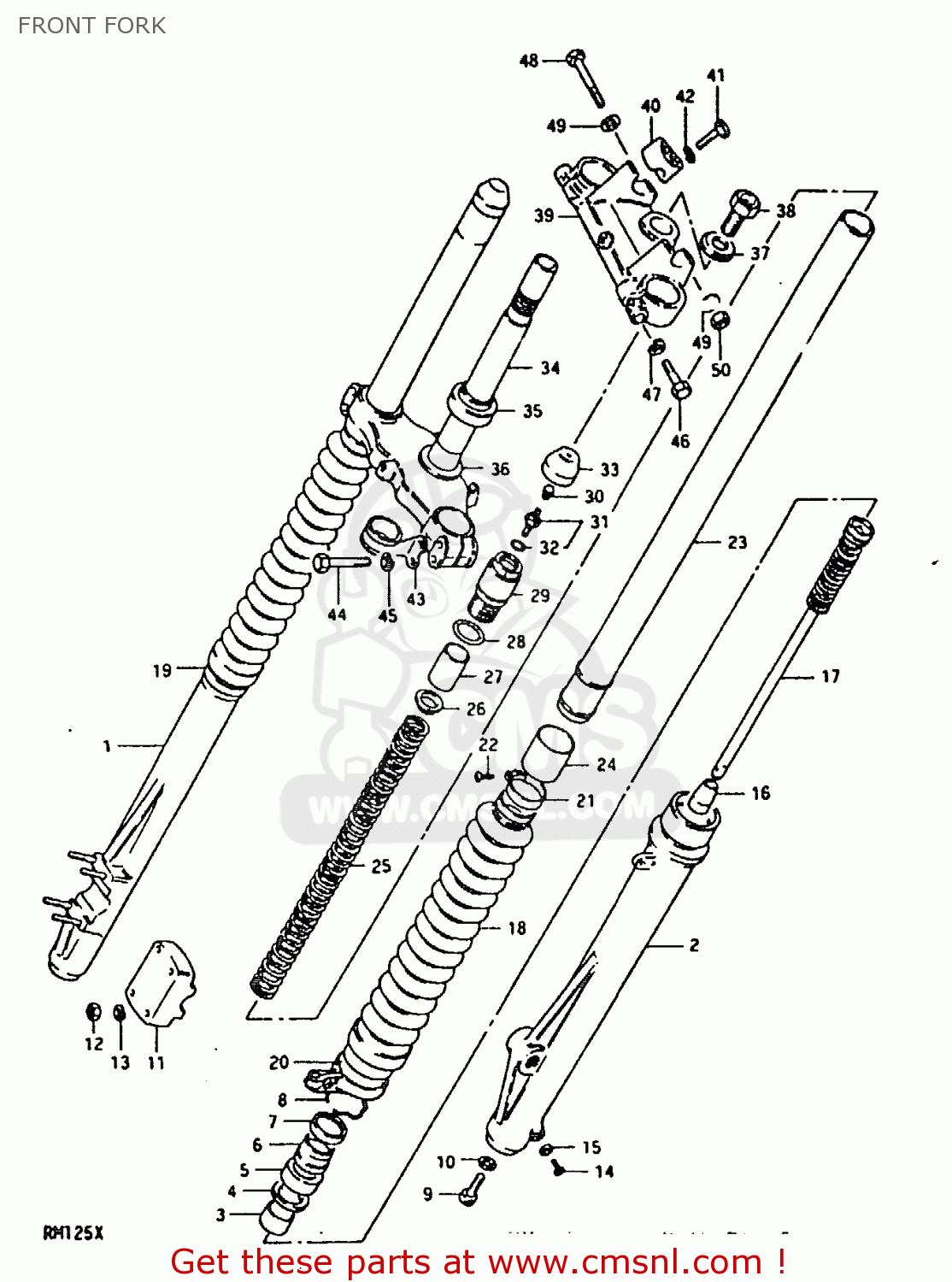

FRONT FORK

ref

part #

description

quantity

0

511001410003C
ref: 0

FRONT FORK ASSY (GOLD)

€ 0.00

1

5113014100
ref: 1

TUBE,OUTER,RIGHT

€ 166.50

2

5114114100
ref: 2

TUBE,OUTER,LEFT

€ 190.50

3

5116714100
ref: 3

METAL,SLIDE

€ 7.00

4

5115814100
ref: 4

WASHER(40X50X2.3)

€ 2.50

5

5115340300
ref: 5

SEAL,OIL

€ 11.50

6

5117340301
ref: 6

SEAL,DUST

€ 12.50

7

5114940301
ref: 7

CASE,DUST SEAL

€ 12.50

8

5115640301
ref: 8

RING,STOPPER

€ 4.50

9

5114740300
ref: 9

BOLT,CYLINDER

€ 5.50

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

5113214100
ref: 11

HOLDER,AXLE

€ 20.50

12

0831012068
ref: 12

NUT

€ 2.50

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

0211204088
ref: 14

SCREW

€ 1.50

15

5118303010
ref: 15

GASKET,DRAIN,PLUG (NAS)

€ 3.00

16

5119514100
ref: 16

PIECE,OIL LOCK

€ 8.50

17

5114614100
ref: 17

CYLINDER,FRONT FORK

€ 59.50

18

5157140300
ref: 18

BOOT

€ 31.50

19

5157340300
ref: 19

BAND,FRONT FORK COVER BOOT

€ 5.00

20

5157240300
ref: 20

BAND,FRONT FORK COVER BOOT

€ 9.00

21

5157540300
ref: 21

BAND,BOOT

€ 9.00

22

0211204108
ref: 22

SCREW 4X10

€ 2.00

23

5111014100
ref: 23

TUBE,FORK,INNER

€ 120.00

24

5112114100
ref: 24

PISTON

€ 10.50

25

5117114100
ref: 25

SPRING,FRONT FORK

€ 41.50

26

5117240300
ref: 26

GUIDE

€ 5.00

27

5117614100
ref: 27

SPACER,FRONT FORK SPRING

€ 28.50

28

5111740300
ref: 28

O RING

€ 2.50

29

5135140300
ref: 29

CAP,FORK INNER TUBE

€ 37.00

30

5129440400
ref: 30

CAP,VALVE AIR

€ 4.00

31

5129349001
ref: 31

VALVE

€ 18.00

32

5111741211
ref: 32

O RING

€ 6.50

33

5118941220
ref: 33

CAP

€ 6.00

34

514101410008C
ref: 34

STEM,STEERING

€ 157.00

35

0926530005
ref: 35

BEARING

€ 49.50

36

0821130402
ref: 36

WASHER,THRUST

€ 4.00

37

5135641310
ref: 37

WASHER

€ 6.00

38

5135141320
ref: 38

BOLT

€ 8.50

39

513114020008C
ref: 39

HEAD,STEERING STEM

€ 155.00

40

562114030008C
ref: 40

HOLDER,HANDLEBAR

€ 7.00

41

0110708358
ref: 41

BOLT

€ 3.50

42

0832121088
ref: 42

LOCK WASHER

€ 2.00

43

5862140301
ref: 43

CLIP,CABLE

€ 14.50

44

0110708458
ref: 44

BOLT 8X45

€ 2.50

45

0832121088
ref: 45

LOCK WASHER

€ 2.00

46

0110710458
ref: 46

BOLT

€ 2.00

47

0832121108
ref: 47

LOCK WASHER

€ 2.00

48

0110708508
ref: 48

BOLT 8X50

€ 3.00

49

0832221088
ref: 49

WASHER

€ 2.00

50

0831012088
ref: 50

NUT

€ 2.00
