CARBURETOR (MODEL G/MODEL H ~E.NO.106550)
RM125 1987 (H) USA (E03)

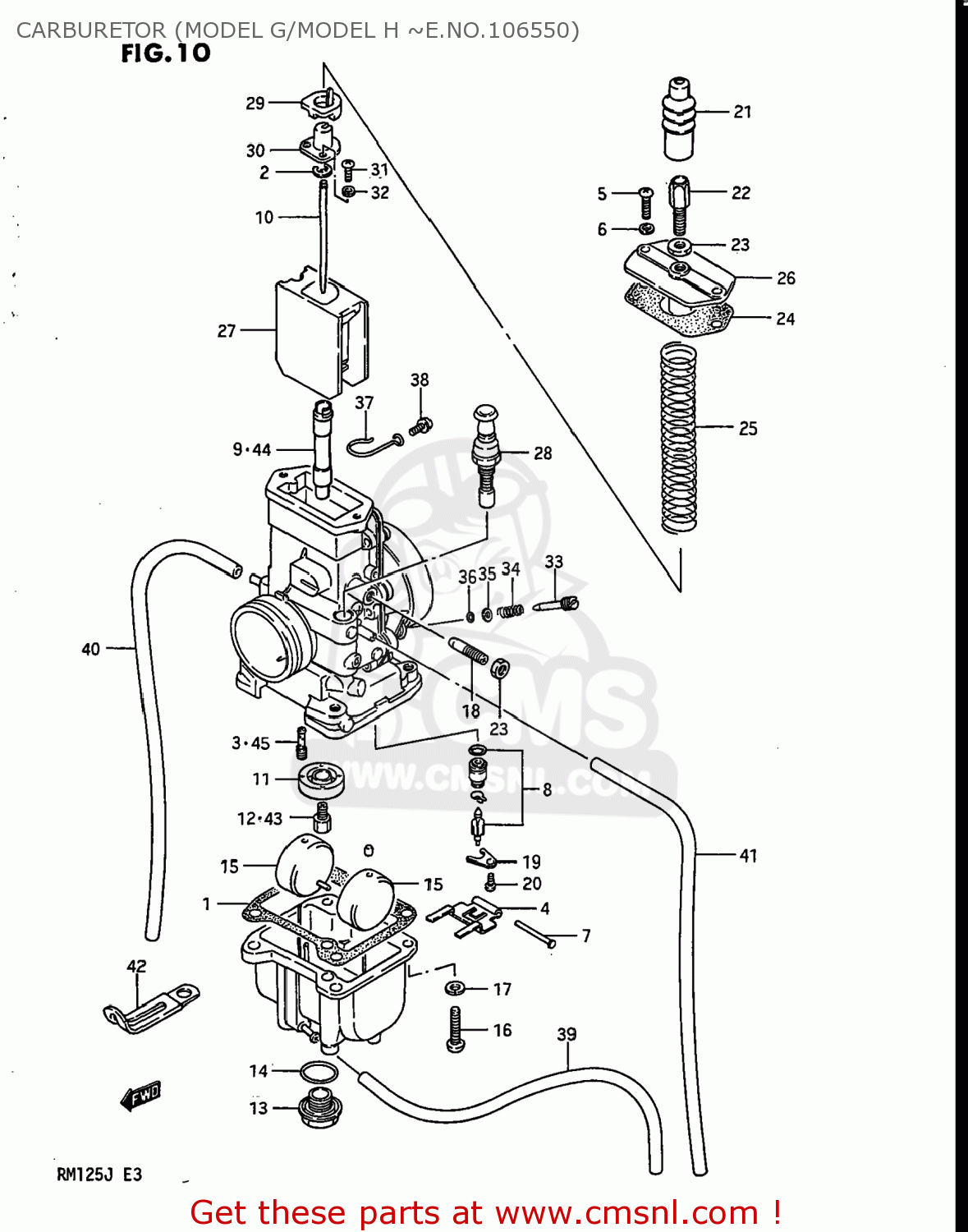

Carburetor (model g/model h ~e.no.106550) diagram RM125 1987 (H) USA (E03)
CARBURETOR (MODEL G/MODEL H ~E.NO.106550) RM125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320001B00
ref:
CARBURETOR ASSEMBLY (VM34)
€ 406.00
1320001B20
ref:
13200-01B21
CARBURETOR ASSEMBLY
€ 335.00
1320001B20
ref:
13200-01B21
CARBURETOR ASSEMBLY
€ 335.00
1
1325114300
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
2-1
1339410010
ref: 2-1
CLIP
€ 4.50
2-2
1339431210
ref: 2-2
CLIP,NEEDLE
€ 3.50
3-1
0949255005
ref: 3-1
JET,PILOT
€ 6.50
3-2
0949240004
ref: 3-2
JET,PILOT(40)
€ 17.50
4
1325340010
ref: 4
ARM,FLOAT
€ 8.00
5
0211204126
ref: 5
02112-0412A
SCREW
€ 1.50
6
0832121046
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337014300
ref: 8
13370-43B00
VALVE ASSEMBLY,NEEDLE
€ 52.50
9-1
0949400357
ref: 9-1
JET,NEEDLE(R-0)
€ 16.50
9-2
0949400558
ref: 9-2
JET,NEEDLE
€ 22.50
10-1
1338314510
ref: 10-1
NEEDLE,JET
€ 14.50
10-2
1338301B15
ref: 10-2
NEEDLE JET
€ 9.00
11
1333114510
ref: 11
RING,MAIN JET FITTING
€ 10.50
12-1
0949156001
ref: 12-1
09491-56003
JET
€ 14.50
12-2
0949162005
ref: 12-2
JET,MAIN(310)
€ 10.50
13
1324732210
ref: 13
SCREW,GUIDE
€ 13.00
14
1324941310
ref: 14
O RING,DRAIN PLUG
€ 5.00
15
1325218620
ref: 15
FLOAT
€ 27.50
16
0211205166
ref: 16
02112-0516A
SCREW
€ 2.00
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18
1326714500
ref: 18
SCREW,THROTTLE SCREW
€ 9.00
19
1337339110
ref: 19
PLATE
€ 6.50
20
0211204066
ref: 20
02112-0406B
SCREW
€ 2.00
21
1368141510
ref: 21
CAP,CABLE ADJUSTER
€ 11.00
22
1357741612
ref: 22
ADJUSTER,CABLE
€ 8.00
23
1366116600
ref: 23
NUT
€ 5.00
24
1326614500
ref: 24
GASKET,TOP (NAS)
€ 4.00
25
1357314500
ref: 25
SPRING,THROTTLE VALVE
€ 6.50
26
1326114500
ref: 26
CAP,CARBURETOR,TOP
€ 13.50
26
1326114500
ref: 26
CAP,CARBURETOR,TOP
€ 13.50
26
1326114500
ref: 26
CAP,CARBURETOR,TOP
€ 13.50
27-1
1355114500
ref: 27-1
13551-01C00
VALVE,THROTTLE
€ 79.50
27-2
1355101B20
ref: 27-2
VALVE,PISTON (CA:6.0)
€ 96.00
28
1340014500
ref: 28
PLUNGER ASSEMBLY
€ 39.00
29
1362916700
ref: 29
RING
€ 11.50
30
1339816700
ref: 30
JOINT
€ 7.00
31
0211203106
ref: 31
02112-0310B
SCREW
€ 1.50
32
0832121036
ref: 32
08321-2103B
LOCK WASHER
€ 1.50
33
1326948030
ref: 33
SCREW,PILOT AIR
€ 10.00
34
1326848700
ref: 34
SPRING,THROTTLE SCREW
€ 3.50
35
1327744080
ref: 35
13291-29900
GASKET
€ 2.00
36
1327844080
ref: 36
13295-29900
O-RING
€ 4.00
37
1369214500
ref: 37
CLIP
€ 4.00
38
1360104148
ref: 38
SCREW
€ 2.50
39
0934304104
ref: 39
09352-40703-600
HOSE
€ 3.00
40
0934304104
ref: 40
09352-40703-600
HOSE
€ 3.00
41
0934304104
ref: 41
09352-40703-600
HOSE
€ 3.00
42
0940406401
ref: 42
09404-06432
CLAMP L:35
€ 2.50
43-1
0949152001
ref: 43-1
09491-52006
JET
€ 7.50
43-2
0949154001
ref: 43-2
09491-54002
JET
€ 11.50
43-3
0949158002
ref: 43-3
JET,MAIN(290)
€ 7.50
43-4
0949160007
ref: 43-4
JET,MAIN(300)
€ 9.50
43-5
0949164002
ref: 43-5
JET,MAIN(320)
€ 8.50
43-6
0949166002
ref: 43-6
JET,MAIN(330)
€ 10.50
43-7
0949168002
ref: 43-7
JET,MAIN(340)
€ 8.50
43-8
0949170011
ref: 43-8
JET,MAIN(350)
€ 8.50
44-1
0949400393
ref: 44-1
JET,NEEDLE
€ 20.00
44-2
0949400357
ref: 44-2
JET,NEEDLE(R-0)
€ 16.50
44-3
0949400453
ref: 44-3
JET
€ 19.50
44-4
0949400403
ref: 44-4
JET,NEEDLE
€ 18.50
44-5
0949400404
ref: 44-5
JET,NEEDLE
€ 20.00
45-1
0949240004
ref: 45-1
JET,PILOT(40)
€ 17.50
45-2
0949250010
ref: 45-2
JET,PILOT(50)
€ 8.00
45-3
0949260004
ref: 45-3
JET,PILOT
€ 7.50
45-3
0949260004
ref: 45-3
JET,PILOT
€ 7.50
45-3
0949260004
ref: 45-3
JET,PILOT
€ 7.50
