FRONT FORK (MODEL H)
RM125 1987 (H) USA (E03)

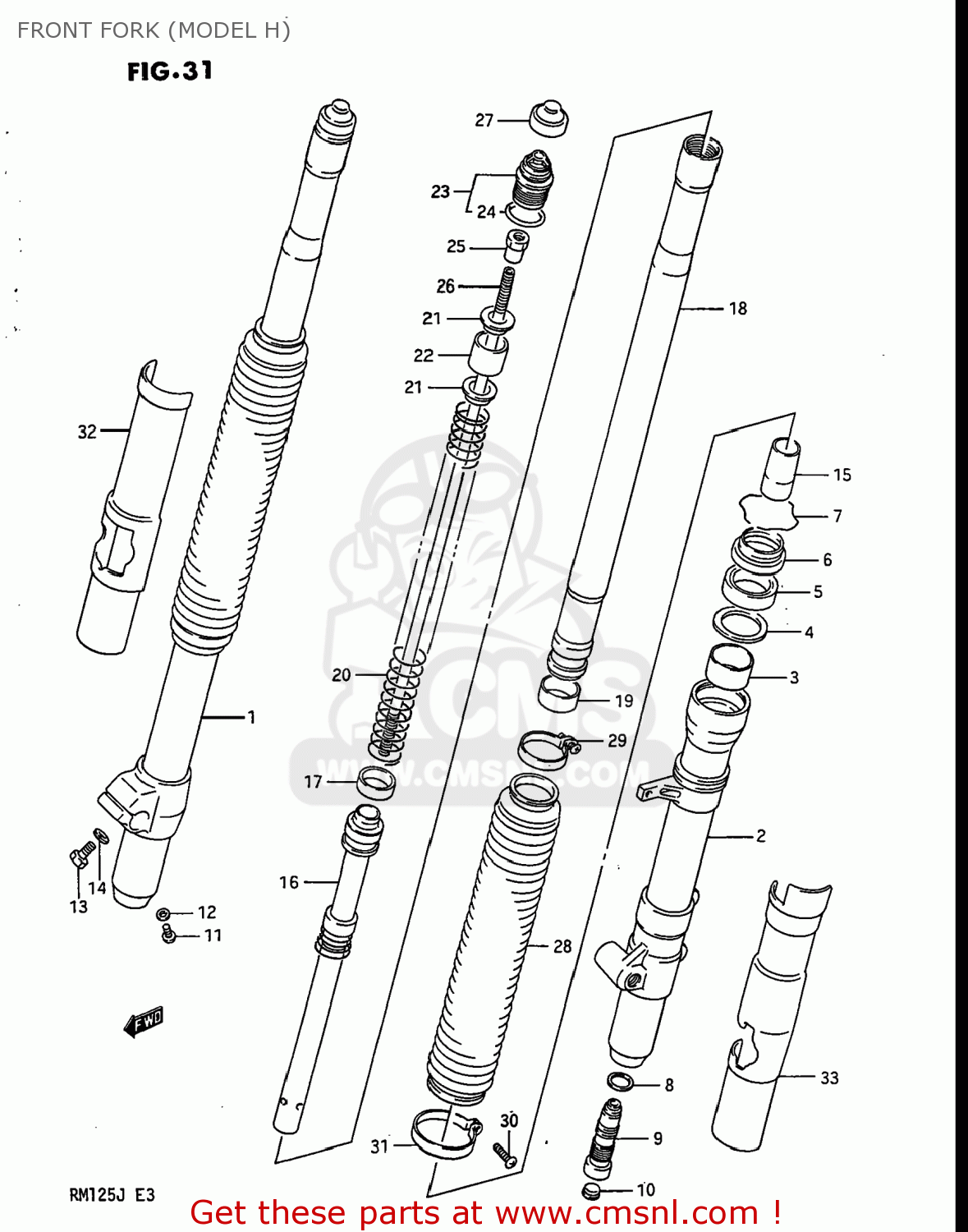

Front fork (model h) diagram RM125 1987 (H) USA (E03)
FRONT FORK (MODEL H) RM125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110301B30
ref:
DAMPER ASSEMBLY,FRONT FORK,RIGHT
€ 627.50
5110401B30
ref:
DAMPER ASSEMBLY,FRONT FORK,LEFT
€ 627.50
1
5113001B20
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114001B20
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714200
ref: 3
51167-40C00
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115301B20
ref: 5
51153-14330
OIL SEAL,FRONT FORK
€ 11.00
6
5117314330
ref: 6
SEAL,DUST
€ 9.50
7
5115614200
ref: 7
RING,STOPPER
€ 4.50
8
5114801B20
ref: 8
GASKET
€ 2.50
9
5117001B30
ref: 9
VALVE
€ 0.00
10
5118914500
ref: 10
CAP,FRONT FORK DF
€ 5.00
11
0211204068
ref: 11
02112-0406B
SCREW 4X6
€ 2.00
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0110708307
ref: 13
01500-08307
BOLT
€ 2.50
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
5119501B20
ref: 15
PIECE,OIL LOCK
€ 17.50
16
5114601B20
ref: 16
CYLINDER,FRONT FORK
€ 0.00
17
5119601B20
ref: 17
RING,FRONT FORK PISTON
€ 13.50
18
5111001B20
ref: 18
TUBE,INNER
€ 266.50
19
5112114200
ref: 19
PISTON
€ 14.00
20
5117101B20
ref: 20
SPRING,FRONT FORK
€ 73.00
21
5117214200
ref: 21
GUIDE,SPRING
€ 5.00
22
5117601B20
ref: 22
SPACER
€ 5.00
23
5135101B20
ref: 23
CAP
€ 110.50
24
5111714200
ref: 24
O RING
€ 2.00
25
5112901B20
ref: 25
NUT
€ 18.50
26
5112801B20
ref: 26
ROD,PISTON
€ 185.50
27
5118801B20
ref: 27
CAP
€ 7.50
28
5157101B2025Y
ref: 28
51571-32E00-38K
BOOT
€ 45.50
29
5157501B20
ref: 29
BAND,BOOT UPR
€ 7.50
30
5157701B20
ref: 30
SCREW,BAND BOOT(3.5X10)
€ 2.50
31
5157600B00
ref: 31
BAND,BOOT LWR
€ 6.50
32
5120114500163
ref: 32
PROTECTOR,RIGHT
€ 0.00
33
5120214501163
ref: 33
PROTECTOR,LEFT
€ 25.50
33
5120214501163
ref: 33
PROTECTOR,LEFT
€ 25.50
