RM125 1987 (H) USA (E03)

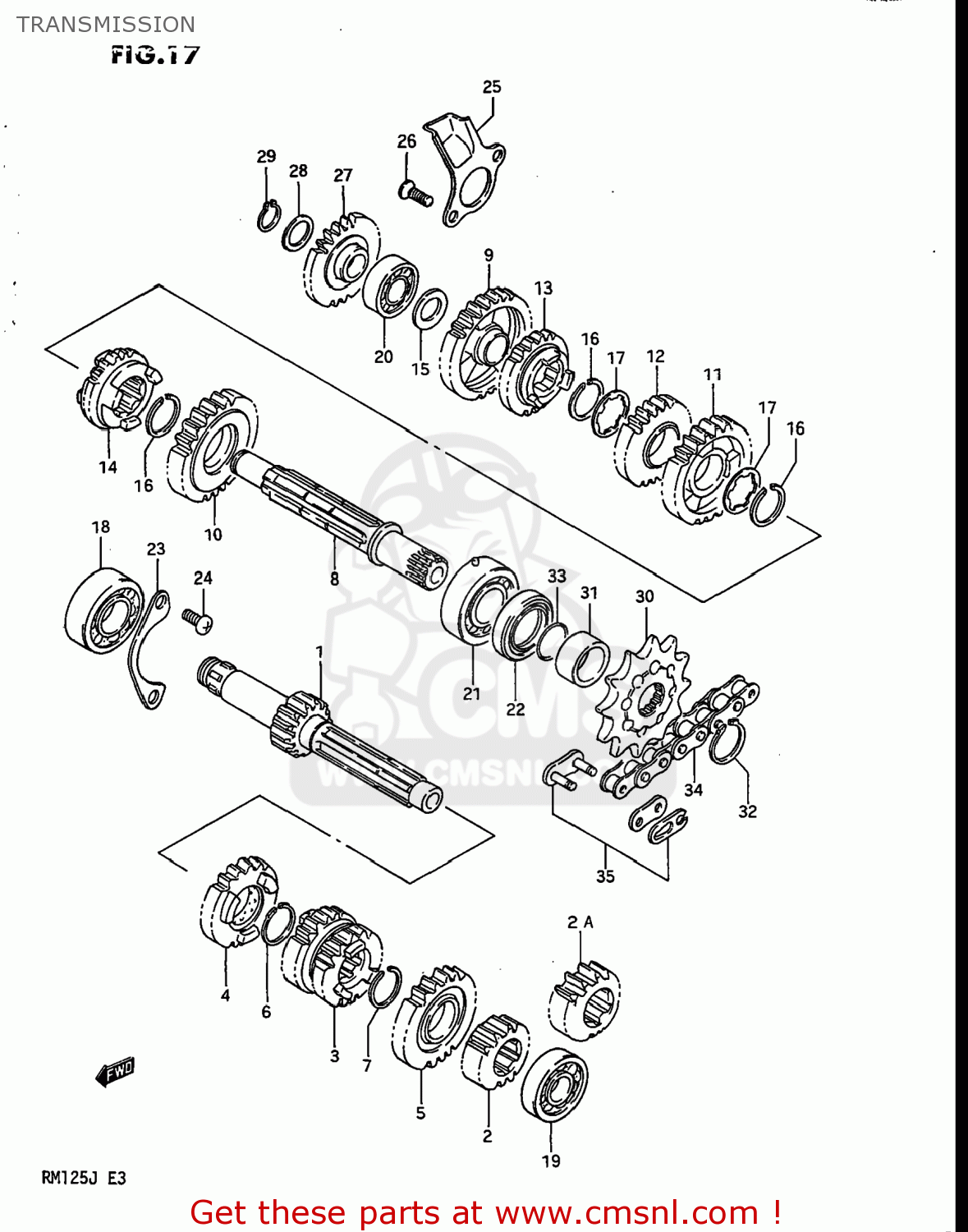

Transmission diagram RM125 1987 (H) USA (E03)
TRANSMISSION RM125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412101B01
ref: 1-1
24121-01B03
SHAFT,COUNTER
€ 82.50
1-2
2412101B02
ref: 1-2
24121-01B03
SHAFT,COUNTER
€ 82.50
1-3
2412101B41
ref: 1-3
24121-01X00
SHAFT,COUNTER
€ 173.00
2
2422101B01
ref: 2
GEAR,SECOND DRIVE (NT:13)
€ 24.00
2A
2422101B40
ref: 2A
24221-27C10
GEAR,SECOND DRIVE
€ 60.00
3-1
2423101B01
ref: 3-1
GEAR,THIRD & FOURTH DRIVE,N
€ 56.50
3-2
2423101B41
ref: 3-2
24231-27C10
GEAR,THIRD & FOURTH DRIVE
€ 83.50
4
2425001B00
ref: 4
GEAR,FIFTH DRIVE (NT:19)
€ 56.50
5-1
2426101B01
ref: 5-1
GEAR,SIXTH DRIVE (NT:20)
€ 67.50
5-2
2426101B40
ref: 5-2
GEAR,SIXTH DRIVE (NT:20)
€ 81.50
6
0938020007
ref: 6
CIRCLIP
€ 3.00
7
0938020012
ref: 7
CIRCLIP
€ 2.50
8
2413114510
ref: 8
SHAFT,DRIVE
€ 110.00
9-1
2431101B02
ref: 9-1
GEAR,FIRST DRIVEN (NT:26)
€ 45.00
9-2
2431101B40
ref: 9-2
24311-01B41
GEAR,FIRST DRIVEN
€ 72.00
10-1
2432101B02
ref: 10-1
GEAR,SECOND DRIVEN (NT:22)
€ 26.50
10-2
2432101B40
ref: 10-2
24321-01B42
GEAR,SECOND DRIVEN
€ 148.00
11
2433101B02
ref: 11
24331-27C30
GEAR,THIRD DRIVEN
€ 65.50
12
2434101B02
ref: 12
24341-27C10
GEAR,FOURTH DRIVEN
€ 41.50
13
2435101B02
ref: 13
24351-27C30
GEAR,FIFTH DRIVEN
€ 67.50
14
2436101B02
ref: 14
24361-01B05
GEAR,SIXTH DRIVEN
€ 37.00
15
0821115261
ref: 15
09181-15195
WASHER,THRUST
€ 2.50
16
0938022006
ref: 16
CIRCLIP
€ 3.00
17
0916722011
ref: 17
WASHER,LOCK
€ 3.00
18
0926220062
ref: 18
09262-20069
BEARING
€ 28.00
19
0812362027
ref: 19
BEARING
€ 14.50
20
0812362027
ref: 20
BEARING
€ 14.50
21
0926220043
ref: 21
BEARING(20X47X14)
€ 27.00
22
0928325035
ref: 22
SEAL,OIL(25X40X7)
€ 6.50
23
2474101B00
ref: 23
RETAINER,CENTER SHAFT BEARING
€ 4.00
24
0211206128
ref: 24
02112-06127
SCREW 6X12
€ 2.00
25
2475101B01
ref: 25
PLATE,DRIVESHAFT BEARING
€ 11.50
26
0212206128
ref: 26
02122-06127
SCREW
€ 3.00
27
2626001B00
ref: 27
26260-01B02
GEAR,KICK STARTER IDLE
€ 32.50
28
0821115241
ref: 28
09181-15166
WASHER,THRUST
€ 4.00
29
0833131159
ref: 29
08331-3115A
CIRCLIP,15MM
€ 2.00
30-1
2751114111
ref: 30-1
SPROCKET,ENGINE
€ 19.00
30-2
2751114121
ref: 30-2
SPROCKET,ENGINE
€ 27.50
30-3
2751114101
ref: 30-3
SPROCKET,ENGINE
€ 23.50
30-4
2751114121
ref: 30-4
SPROCKET,ENGINE
€ 27.50
31
0918020102
ref: 31
SPACER(20X25X12.8)
€ 8.00
32
0938020007
ref: 32
CIRCLIP
€ 3.00
33
0928020001
ref: 33
O RING(D:1,ID:19.5)
€ 2.00
34
2760001B10114
ref: 34
27600-43D02-114
CHAIN ASSEMBLY,DRIVE
€ 72.50
35-1
2762001B10
ref: 35-1
JOINT ASSEMBLY,CHAIN
€ 5.00
35-2
2762001B40
ref: 35-2
27620-43D00
JOINT ASSEMBLY,CHAIN
€ 5.00
