EXHAUST VALVE (MODEL G)
RM125 1987 (H) USA (E03)

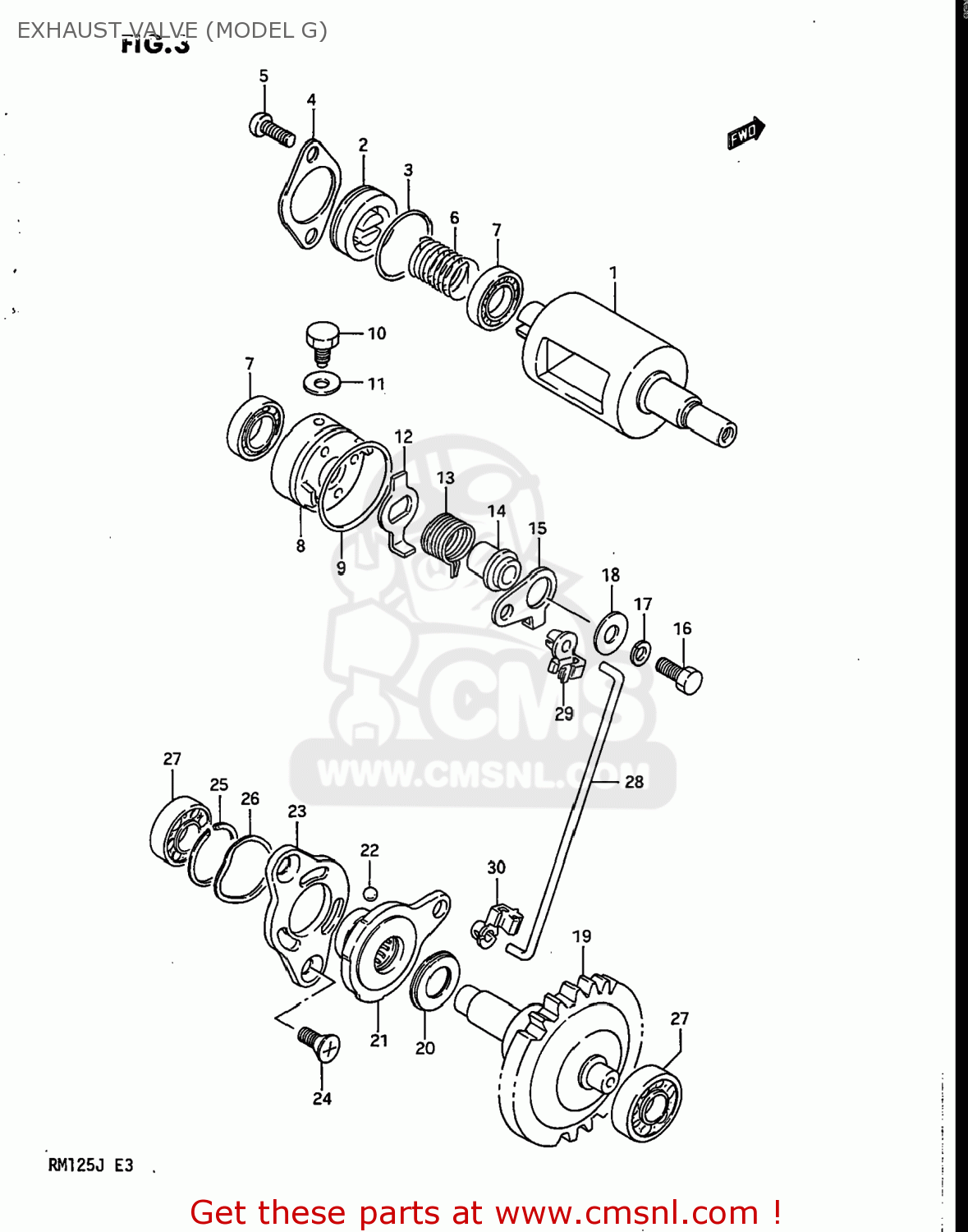

Exhaust valve (model g) diagram RM125 1987 (H) USA (E03)
EXHAUST VALVE (MODEL G) RM125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1125601B00
ref: 1
VALVE,EXHAUST
€ 87.00
2
1125801B00
ref: 2
11258-27C01
CAP,EXHAUST VALVE
€ 52.00
3
0928023002
ref: 3
O RING(D:1.9,ID:22.6)
€ 2.50
4
1126501B00
ref: 4
RETAINER,EXHAUST VALVE
€ 1.50
5
0211205128
ref: 5
02112-05127
SCREW
€ 2.50
6
0944415005
ref: 6
SPRING
€ 4.00
7
0811068010
ref: 7
BEARING
€ 25.50
8
1126301B00
ref: 8
HOLDER,EXHAUST VALVE
€ 78.00
9
0928028005
ref: 9
O RING(D:2.4,ID:27.7)
€ 2.00
10
0913506002
ref: 10
09135-06501
BOLT
€ 2.50
11
0916806004
ref: 11
GASKET(6.2X11X1).2 (NAS)
€ 1.50
12
1126701B00
ref: 12
LEVER,EXHAUST VALVE NO
€ 1.50
13
0944415004
ref: 13
SPRING
€ 4.50
14
1126801B00
ref: 14
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
15
1126601B00
ref: 15
LEVER,EXHAUST VALVE NO.1
€ 5.50
16
0110405126
ref: 16
01500-0512B
BOLT
€ 1.50
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18
0916005017
ref: 18
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
19
1267001B00
ref: 19
12670-27C00
GOVERNOR ASSEMBLY,EXHAUST
€ 87.00
20
0926310002
ref: 20
BEARING(10X22X2.8)
€ 8.50
21
1268001810
ref: 21
ACTUATOR,EXHAUST VALVE
€ 56.00
22
0611106003
ref: 22
BALL
€ 1.50
23
1268201B01
ref: 23
12682-01B02
STATOR,EXHAUST VALVE ACTUATOR
€ 26.50
24
0212205128
ref: 24
09126-05003
SCREW 5X12
€ 2.50
25
0938019003
ref: 25
CIRCLIP
€ 2.50
26
0916419001
ref: 26
WASHER
€ 7.00
27
0926208005
ref: 27
BEARING(8X22X7)
€ 12.50
28
1268501B00
ref: 28
ROD,EXHAUST VALVE
€ 2.50
29
1268601B00
ref: 29
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
30
1268701B00
ref: 30
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
30
1268701B00
ref: 30
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
