MUFFLER (MODEL G)
RM125 1987 (H) USA (E03)

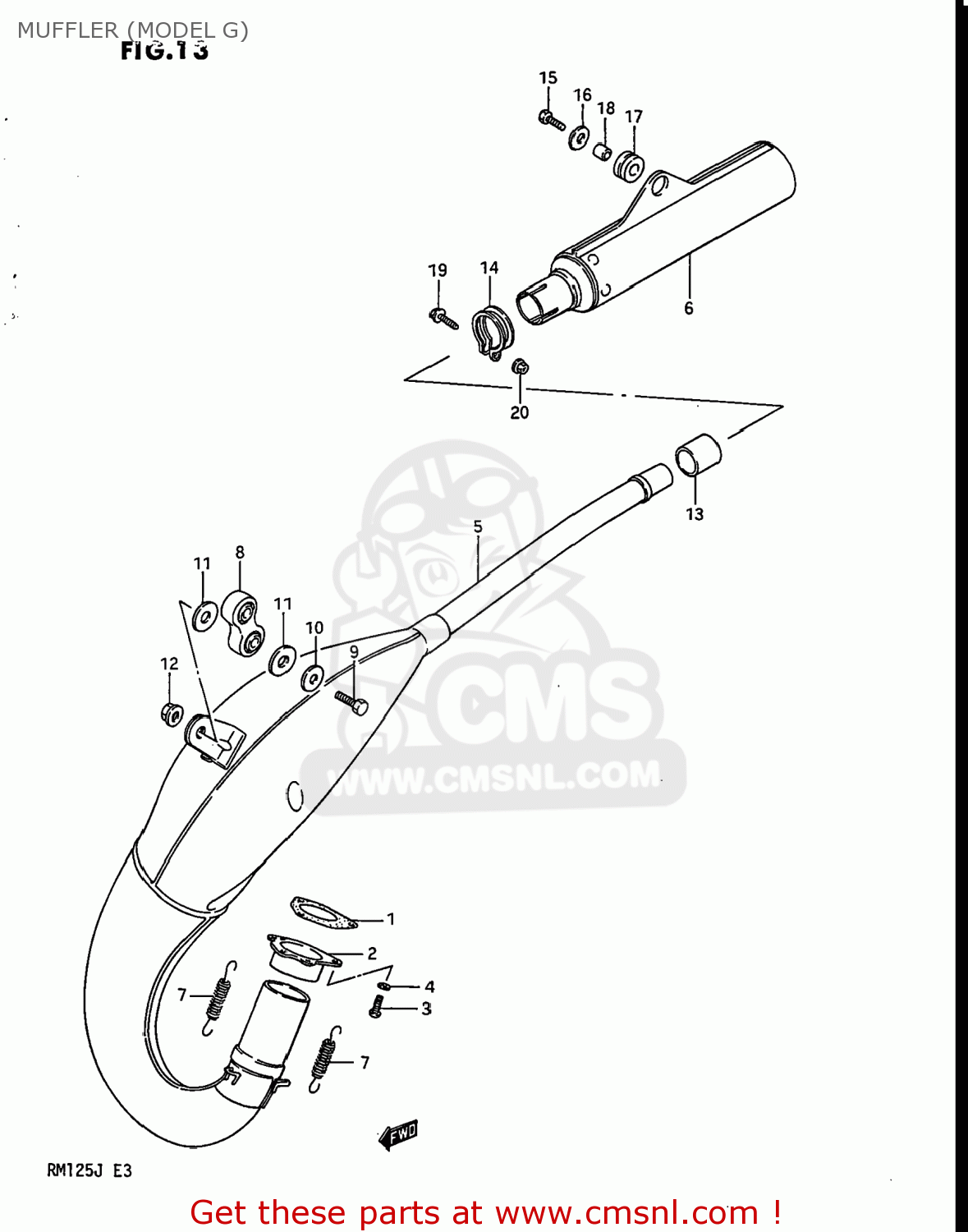

Muffler (model g) diagram RM125 1987 (H) USA (E03)
MUFFLER (MODEL G) RM125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418140200
ref: 1
14181-40200-H17
GASKET,EXHAUST PIPE (MCA)
€ 6.00
2
1417001B00
ref: 2
FLANGE COMP,EXHAUST PIPE
€ 24.50
3
0211206167
ref: 3
SCREW
€ 2.50
4
0832121067
ref: 4
08321-01067
WASHER,LOCK
€ 2.50
5
1431001B14H01
ref: 5
14310-01B14
BODY,MUFFLER,FIRST
€ 130.00
6
1433001B14H01
ref: 6
14330-01B15
BODY,MUFFLER
€ 275.00
7
0944312034
ref: 7
09443-10034-XC0
SPRING
€ 6.50
8
1477040000
ref: 8
DAMPER,MUFFLER
€ 139.00
9
0910008176
ref: 9
BOLT(8X32)
€ 2.00
10
0916008035
ref: 10
09160-08130
WASHER
€ 2.00
11
0916113001
ref: 11
WASHER(13X28X1.6)
€ 2.50
12
0831626088
ref: 12
08316-20087
NUT
€ 3.00
13
1477114510
ref: 13
14771-14510-H17
GASKET,SECOND MUFFLER (NAS)
€ 20.00
14
1477214500
ref: 14
CLAMP,MUFFLER SECOND
€ 4.00
15
0910006039
ref: 15
01500-0625A
BOLT 6X22
€ 2.50
16
0916006004
ref: 16
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
17
0932009027
ref: 17
CUSHION
€ 4.00
18
0918006138
ref: 18
SPACER(6.3X9.1X11.5)
€ 1.00
19
0151706258
ref: 19
01550-06257
BOLT
€ 2.50
20
0831626068
ref: 20
08316-2006A
NUT 6MM
€ 2.00
20
0831626068
ref: 20
08316-2006A
NUT 6MM
€ 2.00
