EXHAUST VALVE

RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

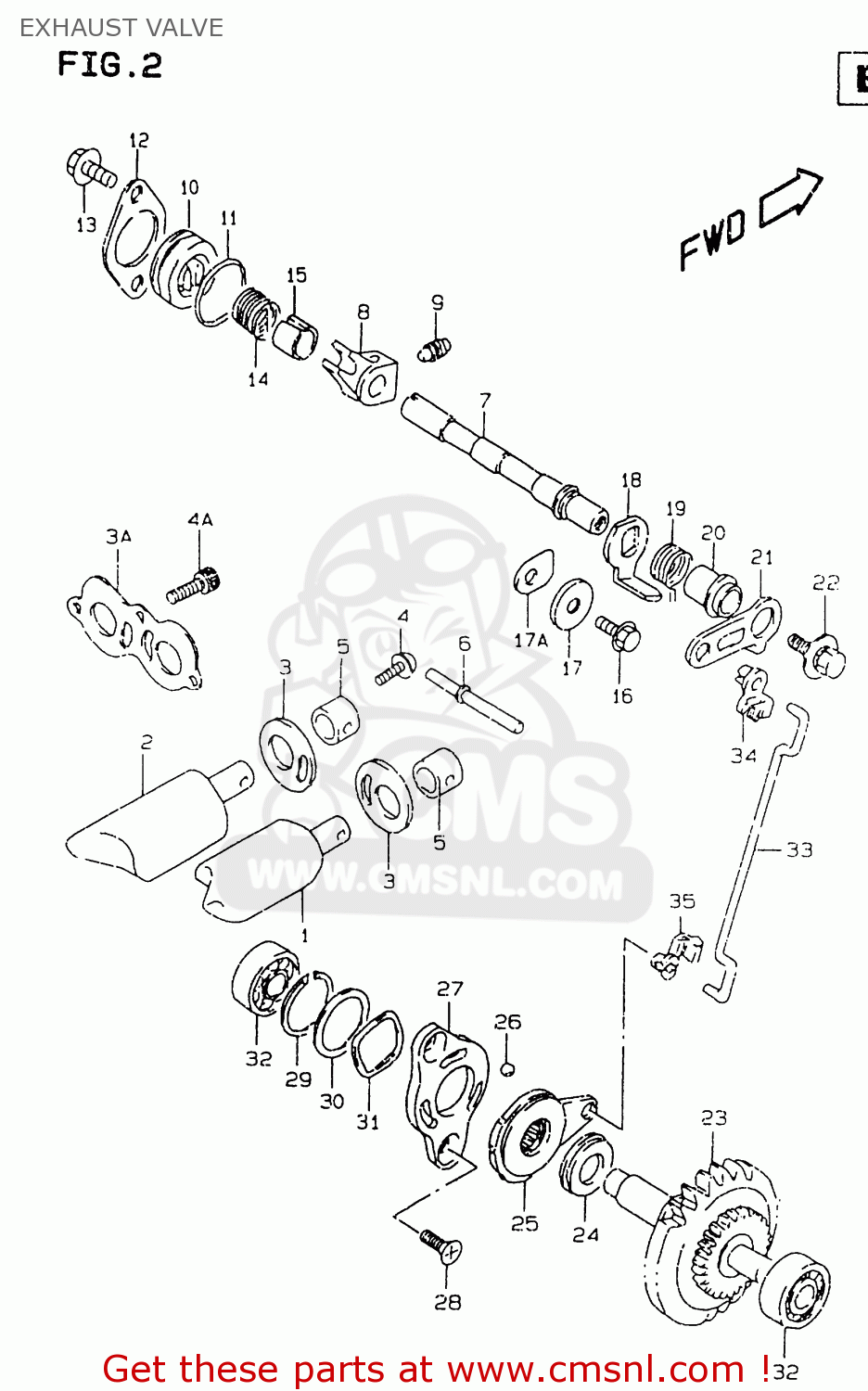

Exhaust valve diagram RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

EXHAUST VALVE RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
EXHAUST VALVE RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
EXHAUST VALVE RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1125436E00
ref: 1-1
MODEL T/V
VALVE,EXHAUST,RIGHT
€ 151.00
1-2
1125436E10
ref: 1-2
MODEL W
VALVE,EXHAUST,R
1125436E10
€ 151.00
2-1
1125536E00
ref: 2-1
MODEL T/V
VALVE,EXHAUST,LEFT
€ 151.00
2-2
1125536E10
ref: 2-2
MODEL W
VALVE,EXHAUST,L
1125536E10
€ 151.00
3
1126136E00
ref: 3
MODEL T
PLATE,EXHAUST VALVE
1126136E00
€ 5.50
3A
1126136E10
ref: 3A
MODEL V/W
PLATE,EXHAUST VALVE
1126136E10
€ 12.50
4
0211215123
ref: 4
MODEL T
SCREW 5X12
0211215123
€ 1.50
4A
0713005123
ref: 4A
MODEL V/W
BOLT
€ 2.50
5
1126308D11
ref: 5
SPACER,EXHAUST VALVE
1126308D11
€ 13.00
6
1125319D80
ref: 6
PIN,EXHAUST VALVE
1125319D80
€ 29.50
7-1
1125927C30
ref: 7-1
MODEL T
SHAFT,EXHAUST VALVE
1125927C30
€ 60.00
7-2
1125936E00
ref: 7-2
MODEL V/W
SHAFT,EXHAUST VALVE
€ 72.50
8
1126400B23
ref: 8
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 17.00
9
0913406013
ref: 9
SCREW(6X10)
0913406013
€ 4.50
10
1125827C01
ref: 10
CAP,EXHAUST VALVE
1125827C01
€ 52.00
11
0928023002
ref: 11
O RING(D:1.9,ID:22.6)
0928023002
€ 2.50
12
1126500B21
ref: 12
RETAINER,EXHAUST VALVE
€ 2.50
13
0216205123
ref: 13
BOLT
0216205123
€ 2.00
14-1
0944416008
ref: 14-1
MODEL T
SPRING
0944416008
€ 7.00
14-2
1125736E00
ref: 14-2
MODEL V/W
SPRING,EXHAUST VALVE
1125736E00
€ 6.00
15
1126900B20
ref: 15
MODEL T/V
SPACER,EXHAUST VALVE SPRING
1126900B20
€ 19.00
16
0154706103
ref: 16
BOLT
0154706103
€ 3.00
17
0821206201
ref: 17
MODEL T
WASHER
0821206201
€ 1.50
17A
2474121A00
ref: 17A
MODEL V/W
RETAINER
2474121A00
€ 2.00
18
1126700B21
ref: 18
LEVER,EXHAUST VALVE NO.2
1126700B21
€ 5.50
19-1
0944415010
ref: 19-1
MODEL T
SPRING
0944415010
€ 5.50
19-2
0944416010
ref: 19-2
MODEL V/W
SPRING
0944416010
€ 9.00
20
1126801B00
ref: 20
SPACER,EXHAUST VALVE
1126801B00
€ 8.50
21
1126600B21
ref: 21
LEVER,EXHAUST VALVE NO.1
1126600B21
€ 3.50
22
0911805003
ref: 22
BOLT(5X12)
0911805003
€ 4.00
23-1
1267027C10
ref: 23-1
MODEL T
GOVERNOR ASSY,EXHAUST VALVE
1267027C10
€ 86.00
23-2
1267036E00
ref: 23-2
MODEL V
GOVERNOR ASSEMBLY,EXHAUST
€ 90.00
23-3
1267036E10
ref: 23-3
MODEL W
GOVERNOR ASSEMBLY,EXHAUST
€ 90.00
24
0926310002
ref: 24
BEARING(10X22X2.8)
0926310002
€ 8.50
25
1268001820
ref: 25
ACTUATOR,EXHAUST VALVE
1268001820
€ 47.50
26
0611106003
ref: 26
BALL
0611106003
€ 1.50
27
1268201B02
ref: 27
STARTER,EXHAUST VALVE ACTUATOR
1268201B02
€ 26.50
28
0912005003
ref: 28
SCREW(5X10)
0912005003
€ 2.00
29
0938019003
ref: 29
CIRCLIP
0938019003
€ 2.50
30
0918119004
ref: 30
SHIM(19.1X25X0.3)
0918119004
€ 4.00
31
0916419001
ref: 31
WASHER
0916419001
€ 7.00
32
0926208005
ref: 32
BEARING(8X22X7)
0926208005
€ 12.50
33-1
1268527C00
ref: 33-1
MODEL T
ROD,EXHAUST VALVE
1268527C00
€ 7.50
33-2
1268536E00
ref: 33-2
MODEL V
ROD,EXHAUST VALVE
1268536E00
€ 6.50
33-3
1268536E10
ref: 33-3
MODEL W
ROD,EXHAUST VALVE
1268536E10
€ 4.00
34-1
1268601B00
ref: 34-1
MODEL T
BUSH,EXHAUST VALVE ROD NO.1
1268601B00
€ 2.00
34-2
1268636E00
ref: 34-2
MODEL V/W
BUSH,EXHAUST VALVE ROD NO.1
1268636E00
€ 2.00
35
1268701B00
ref: 35
BUSH,EXHAUST VALVE ROD NO.2
1268701B00
€ 2.00
