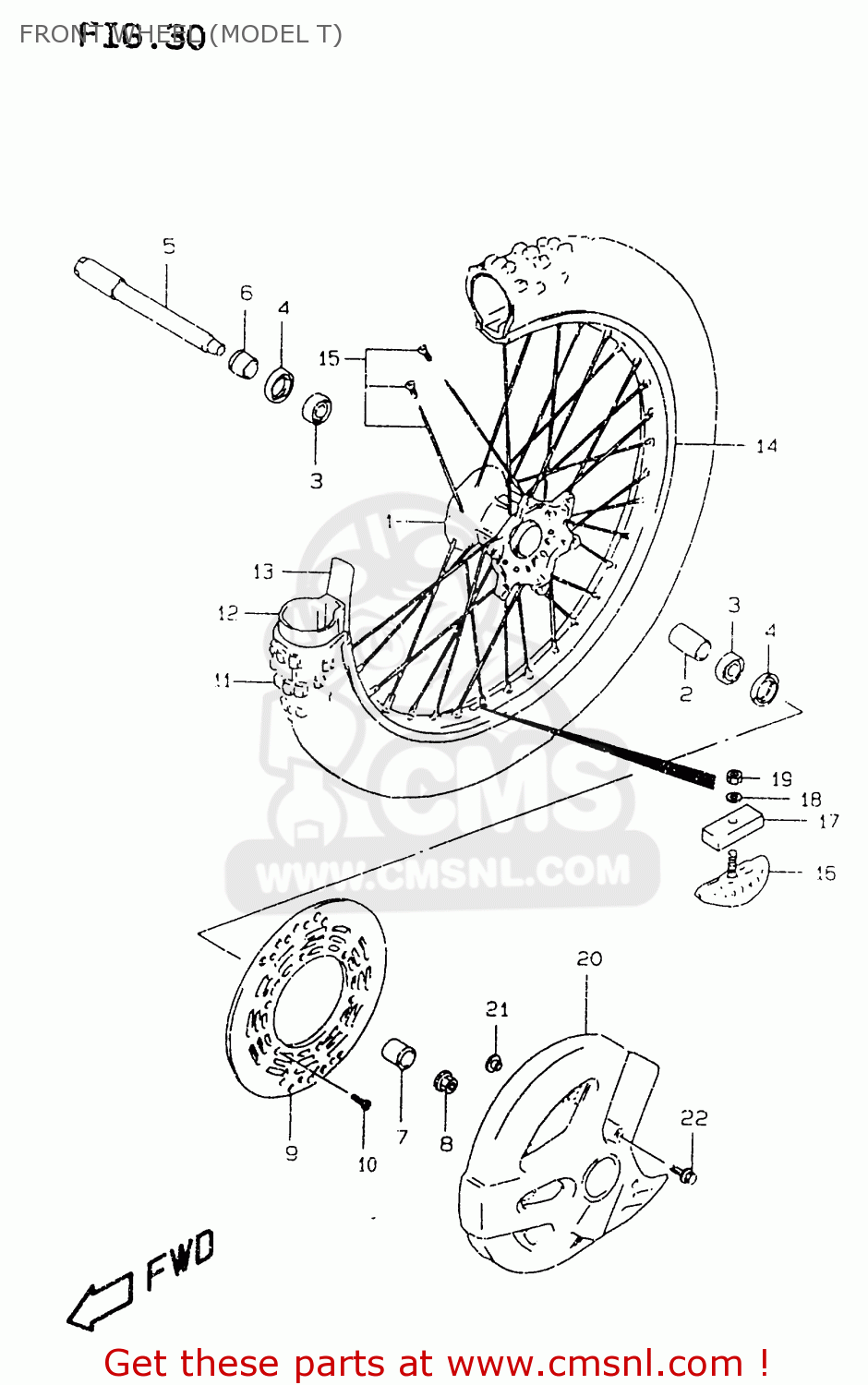

FRONT WHEEL (MODEL T)

RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

Front wheel (model t) diagram RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

5411136E00
ref: 1

HUB,FR WHEEL

€ 253.50

5473136E00
ref: 2

SPACER,FR HUB BEARING

€ 15.50

0813069047
ref: 3

BEARING

€ 37.50

0928325083
ref: 4

SEAL,OIL(25X37X6)

€ 5.00

5471136E00
ref: 5

AXLE,FRONT

€ 57.00

5474136E00
ref: 6

SPACER,FRONT AXLE,RIGHT

€ 13.00

5475136E00
ref: 7

SPACER,FR AXLE,L

€ 19.50

0915918016
ref: 8

NUT

€ 9.00

5922128C00
ref: 9

DISC,FR BRAKE

€ 193.00

0912006011
ref: 10

SCREW

€ 2.50

5511043D10
ref: 11

TIRE,FRONT 80/100-21

€ 164.00

5520016510
ref: 12

TUBE

€ 32.50

5526114540
ref: 13

PROTECTOR,WHEEL INNER

€ 5.00

5531128C00
ref: 14

RIM,FRONT WHEEL (1.60X2

€ 322.50

5532028E00
ref: 15

SPOKE SET,FR WHEEL

€ 97.00

6527014300
ref: 16

STOPPER,BEAD

€ 26.00

6527127C00
ref: 17

CUSHION,BEAD STOPPER

€ 5.50

0832201083
ref: 18

WASHER

€ 1.50

0831000083
ref: 19

NUT

€ 1.50

5923136E0025Y
ref: 20

COVER,FRONT BRAKE DISC

€ 39.50

0916906054
ref: 21

WASHER

€ 2.00

0911606170
ref: 22

BOLT(6X16)

€ 3.00

FRONT WHEEL (MODEL T)

all assemblies
