HANDLE LEVER

RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

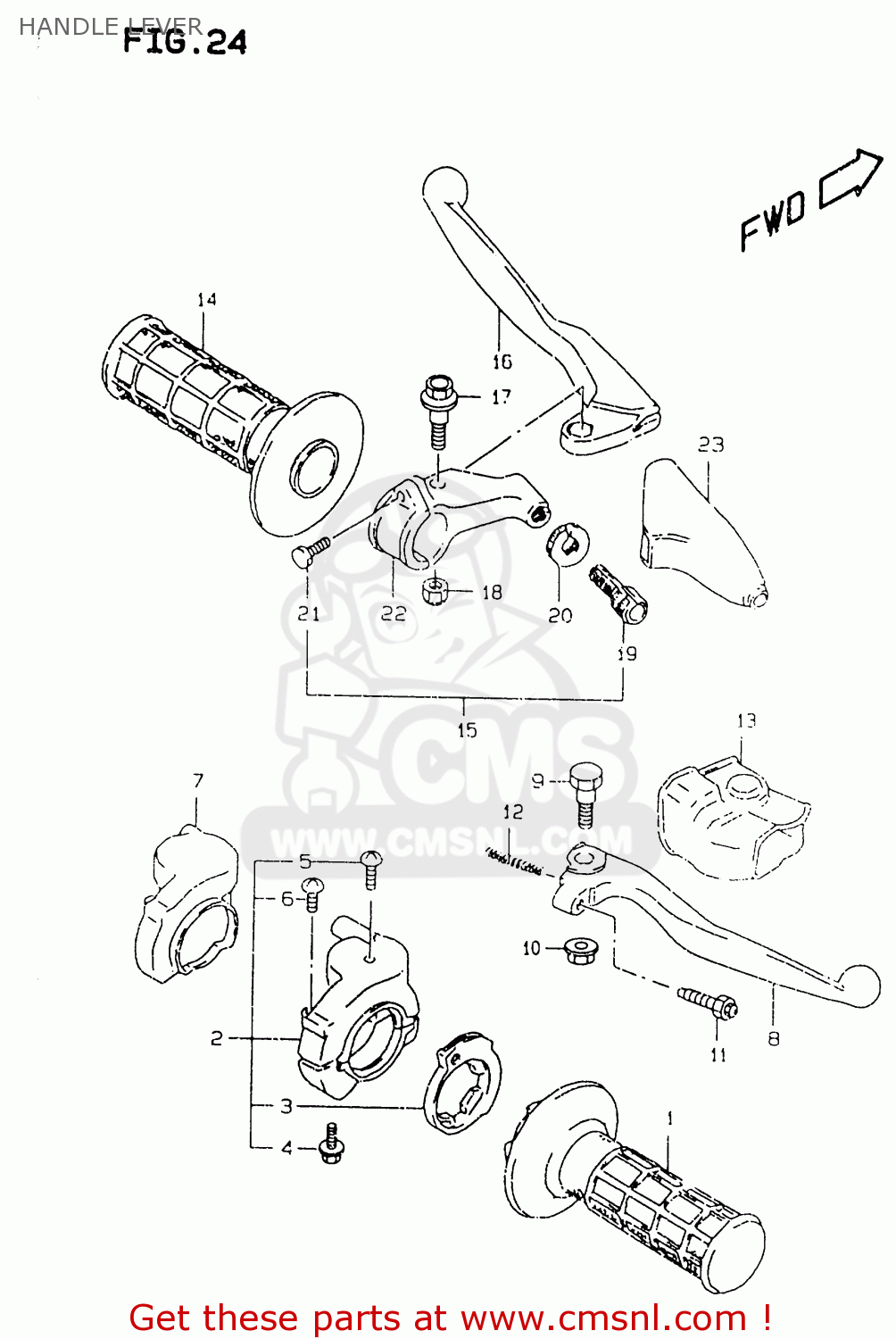

Handle lever diagram RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

HANDLE LEVER RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
HANDLE LEVER RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
HANDLE LEVER RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
5711028E00
ref: 1
GRIP,THROTTLE
5711028E00
€ 24.00
2
5710028E01
ref: 2
CASE ASSY,THROTTLE
5710028E01
€ 83.00
3
5711428E00
ref: 3
ROTOR,THROTTLE
5711428E00
€ 7.50
4
0154706254
ref: 4
BOLT 6X25
0154706254
€ 2.50
5
0212204103
ref: 5
SCREW,UPPER
€ 2.50
6
0212204163
ref: 6
SCREW
€ 2.00
7
5712928E01
ref: 7
COVER,THROTTLE CASE
5712928E01
€ 27.00
8-1
5742136E00
ref: 8-1
MODEL T
LEVER,BRAKE
5742136E00
€ 30.00
8-2
5742136E10
ref: 8-2
MODEL V/W
LEVER,BRAKE
5742136E10
€ 38.50
9
5743114500
ref: 9
BOLT,BRAKE LEVER
5743114500
€ 4.00
10
5744214500
ref: 10
NUT,BRAKE LEVER
5744214500
€ 2.50
11
5743036E00
ref: 11
BOLT,ADJUSTER
5743036E00
€ 5.00
12
5731814502
ref: 12
SPRING,RETURN
5731814502
€ 3.00
13
5734136E00
ref: 13
COVER,BRAKE LEVER
5734136E00
€ 14.50
14
5721127C00
ref: 14
GRIP,L
5721127C00
€ 11.00
15-1
5750028C20
ref: 15-1
MODEL T
LEVER ASSEMBLY,CLUTCH
5750028C20
€ 43.00
15-2
5750028C40
ref: 15-2
MODEL V/W
LEVER ASSEMBLY,CLUTCH
€ 43.00
16-1
5762128C20
ref: 16-1
MODEL T
LEVER,CLUTCH
5762128C20
€ 19.50
16-2
5762128C40
ref: 16-2
MODEL V/W
LEVER,CLUTCH
5762128C40
€ 37.50
17
5743128C01
ref: 17
BOLT,LEVER
5743128C01
€ 4.50
18
0831921068
ref: 18
NUT 6MM
0831921068
€ 2.00
19
5744128C10
ref: 19
ADJUSTER,WIRE
5744128C10
€ 9.50
20
5744228C00
ref: 20
NUT,LOCK
5744228C00
€ 11.50
21
0150005163
ref: 21
BOLT
0150005163
€ 1.50
22-1
5751228C20
ref: 22-1
MODEL T
BRACKET,LEVER HOLDER
5751228C20
€ 14.50
22-2
5751228C00
ref: 22-2
MODEL V/W
BRACKET,CLUTCH LEVER HOLDER
5751228C00
€ 13.00
23
5734140001
ref: 23
COVER,CLUTCH LEVER
5734140001
€ 7.50
