FRONT DAMPER (MODEL W)

RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

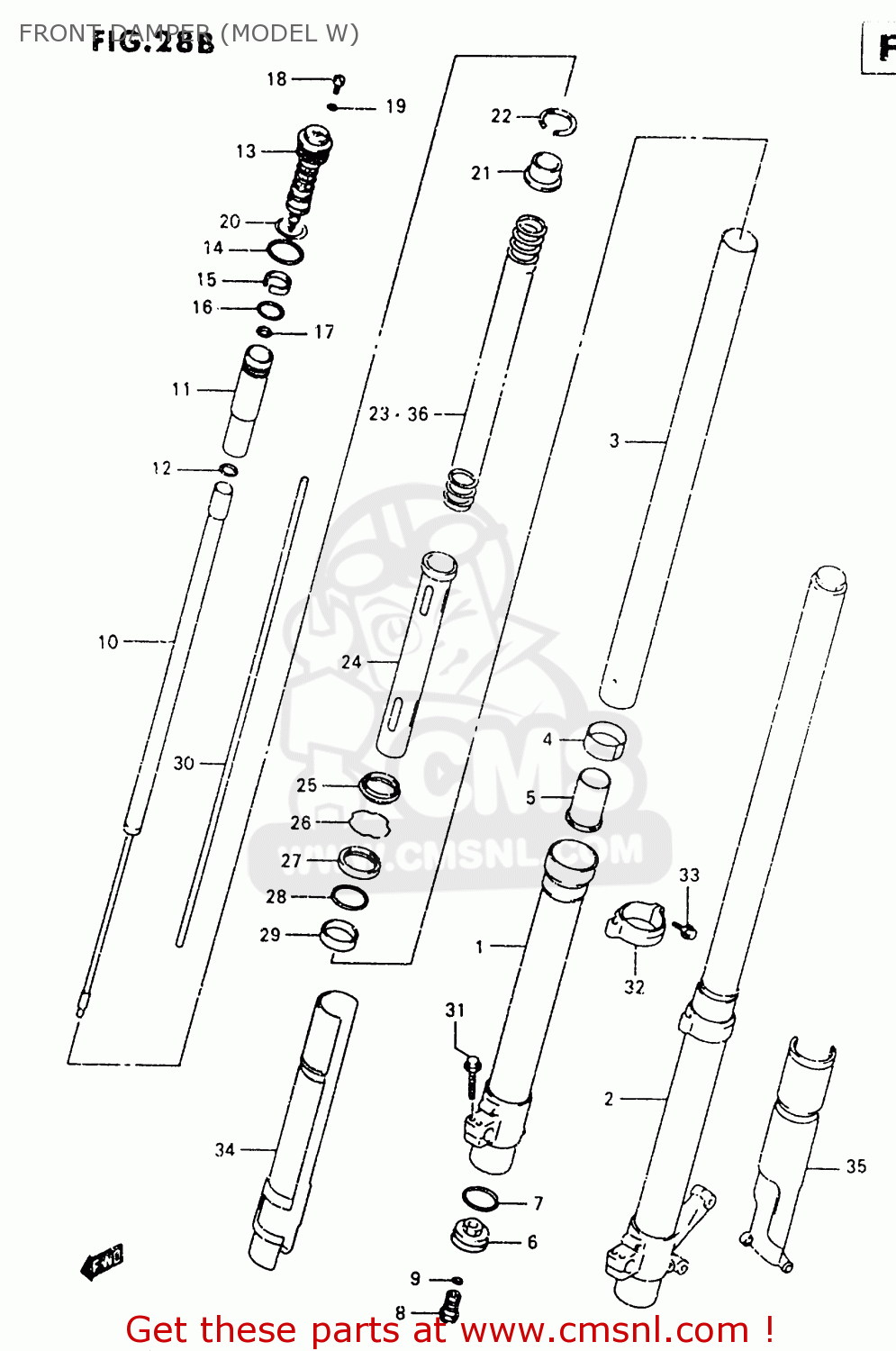

Front damper (model w) diagram RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

FRONT DAMPER (MODEL W) RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRONT DAMPER (MODEL W) RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRONT DAMPER (MODEL W) RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
5110336E50
ref: 0
DAMPER ASSEMBLY,FRONT FORK
5110336E50
€ 1,395.00
0
5110436E50
ref: 0
DAMPER ASSY, FRONT FORK LH
5110436E50
€ 1,395.00
1
5113036E40
ref: 1
TUBE,OUTER,R
5113036E40
€ 594.50
2
5114036E40
ref: 2
TUBE,OUTER,LEFT
5114036E40
€ 463.50
3
5111036E40
ref: 3
TUBE,INNER
5111036E40
€ 363.00
4
5112136E40
ref: 4
BUSH,SLIDE
5112136E40
€ 19.00
5
5119536E50
ref: 5
PIECE,OIL LOCK
€ 40.00
6
5120536E00
ref: 6
PLATE,END
5120536E00
€ 41.00
7
5111727C40
ref: 7
O RING
5111727C40
€ 3.50
8
5117036E40
ref: 8
BOLT,CTR
€ 121.50
9
5117728E30
ref: 9
O RING,CTR BOLT
5117728E30
€ 2.50
10
5119036E50
ref: 10
ROD,FRONT DAMPER
5119036E50
€ 486.00
11
5119836E40
ref: 11
TANK,SUB
€ 125.50
12
5117436E30
ref: 12
O-RING
€ 3.50
13
5135136E50
ref: 13
BOLT,FORK
5135136E50
€ 249.50
14
5111736E00
ref: 14
O RING
5111736E00
€ 3.50
15
5112336E40
ref: 15
BUSHING,SLIDE
€ 9.50
16
5117436E40
ref: 16
O RING
5117436E40
€ 2.50
17
5117536E20
ref: 17
O RING
5117536E20
€ 2.50
18
5135728E30
ref: 18
BOLT,PLUG
5135728E30
€ 8.00
19
5135828E30
ref: 19
O RING,PLUG
5135828E30
€ 2.50
20
5111729EA0
ref: 20
O RING
5111729EA0
€ 5.50
21
5135536E20
ref: 21
SPRING,STOPPER
€ 15.00
22
5135436E20
ref: 22
RING,STOPPER
5135436E20
€ 2.50
23
5117136E50
ref: 23
SPRING,FRONT (K=0.40)
5117136E50
€ 63.00
24
5117636E40
ref: 24
COLLAR,SPRING
€ 115.50
25
5117336E00
ref: 25
SEAL,DUST
5117336E00
€ 19.50
26
5115636E00
ref: 26
RING,STOPPER
5115636E00
€ 4.50
27
5115336E00
ref: 27
SEAL,OIL
5115336E00
€ 19.00
28
5115836E00
ref: 28
SPACER,SEAL
5115836E00
€ 5.00
29
5116736E40
ref: 29
BUSH,GUIDE
5116736E40
€ 19.50
30
5119136E20
ref: 30
ROD,PUSH
€ 10.00
31
5132127C40
ref: 31
BOLT,HANDLE HOLDER(8X35)
5132127C40
€ 3.00
32-1
5121136E00
ref: 32-1
GUIDE,FR PROTECTOR,R
5121136E00
€ 33.50
32-2
5122136E00
ref: 32-2
GUIDE,FR PROTECTOR,L
5122136E00
€ 33.50
33
0154706207
ref: 33
BOLT
0154706207
€ 2.50
34
5155136E101KY
ref: 34
OPT
PROTECTOR,OUTER TUBE,R
5155136E101KY
€ 41.50
35
5155236E101KY
ref: 35
OPT
PROTECTOR,OUTER TUBE,L
5155236E101KY
€ 45.50
36-1
5117136E40
ref: 36-1
OPT
SPRING,FRONT (K=0.38)
€ 190.00
36-2
5117136E60
ref: 36-2
OPT
SPRING,FRONT (K=0.42)
€ 167.00
