KICK STARTER

RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

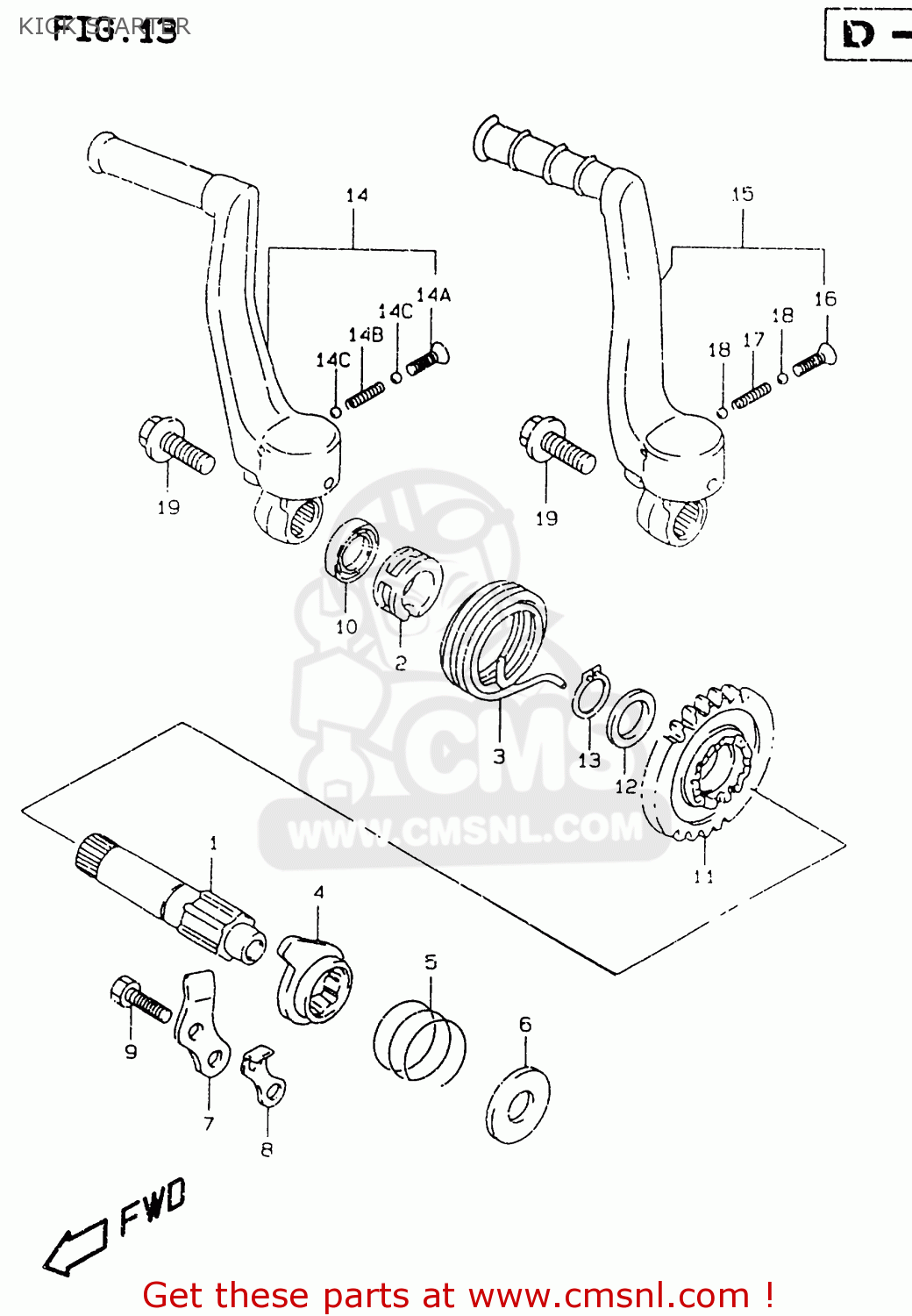

Kick starter diagram RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

KICK STARTER RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
KICK STARTER RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
KICK STARTER RM125 1996 (T) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2621127C01
ref: 1
<-26211-27C00
SHAFT,KICK STARTER
€ 113.50
2
2622127C00
ref: 2
GUIDE,KICK STARTER SFT SPRING
2622127C00
€ 3.50
3
0944845013
ref: 3
SPRING
0944845013
€ 11.00
4-1
2623102B00
ref: 4-1
MODEL T/V
STARTER,KICK
2623102B00
€ 15.50
4-2
2623102B01
ref: 4-2
MODEL W
STARTER,KICK
2623102B01
€ 15.50
5
0944031002
ref: 5
SPRING
0944031002
€ 2.00
6
0821112301
ref: 6
WASHER
0821112301
€ 2.00
7
2623240200
ref: 7
GUIDE,KICK STARTER
2623240200
€ 3.00
8-1
2623340200
ref: 8-1
MODEL T
STOPPER,KICK STARTER
2623340200
€ 2.50
8-2
2623340201
ref: 8-2
MODEL V
STOPPER,KICK STARTER
2623340201
€ 2.50
9
0150006123
ref: 9
BOLT
0150006123
€ 2.00
10
0928316004
ref: 10
SEAL,OIL(15.8X24X5)
0928316004
€ 6.00
11
2624143D00
ref: 11
GEAR,KICK STARTER DRIVE
2624143D00
€ 85.00
12-1
0822116245
ref: 12-1
MODEL T
WASHER
€ 3.50
12-2
0918116158
ref: 12-2
MODEL V/W
SHIM(16X24X0.5)
0918116158
€ 3.50
13
0833131166
ref: 13
CIRCLIP 16MM
0833131166
€ 2.00
14-1
2630027C34
ref: 14-1
MODEL T
LEVER ASSEMBLY,KICK STARTER
€ 286.00
14-2
2630027C35
ref: 14-2
MODEL V
LEVER ASSEMBLY,KICK STARTER
2630027C35
€ 286.00
14A
0912706016
ref: 14A
SCREW(6X27.5)
0912706016
€ 3.00
14B
0944005031
ref: 14B
SPRING
0944005031
€ 1.50
14C
0611107004
ref: 14C
BALL
0611107004
€ 1.50
15
2630036E10
ref: 15
MODEL W
LEVER ASSY,KICK STARTER
2630036E10
€ 286.00
16
0912706016
ref: 16
SCREW(6X27.5)
0912706016
€ 3.00
17
0944005031
ref: 17
SPRING
0944005031
€ 1.50
18
0611107004
ref: 18
BALL
0611107004
€ 1.50
19
0910308253
ref: 19
BOLT(8X14)
0910308253
€ 4.00
