FRONT WHEEL (MODEL Z)
RM250 1982 (Z) USA (E03)

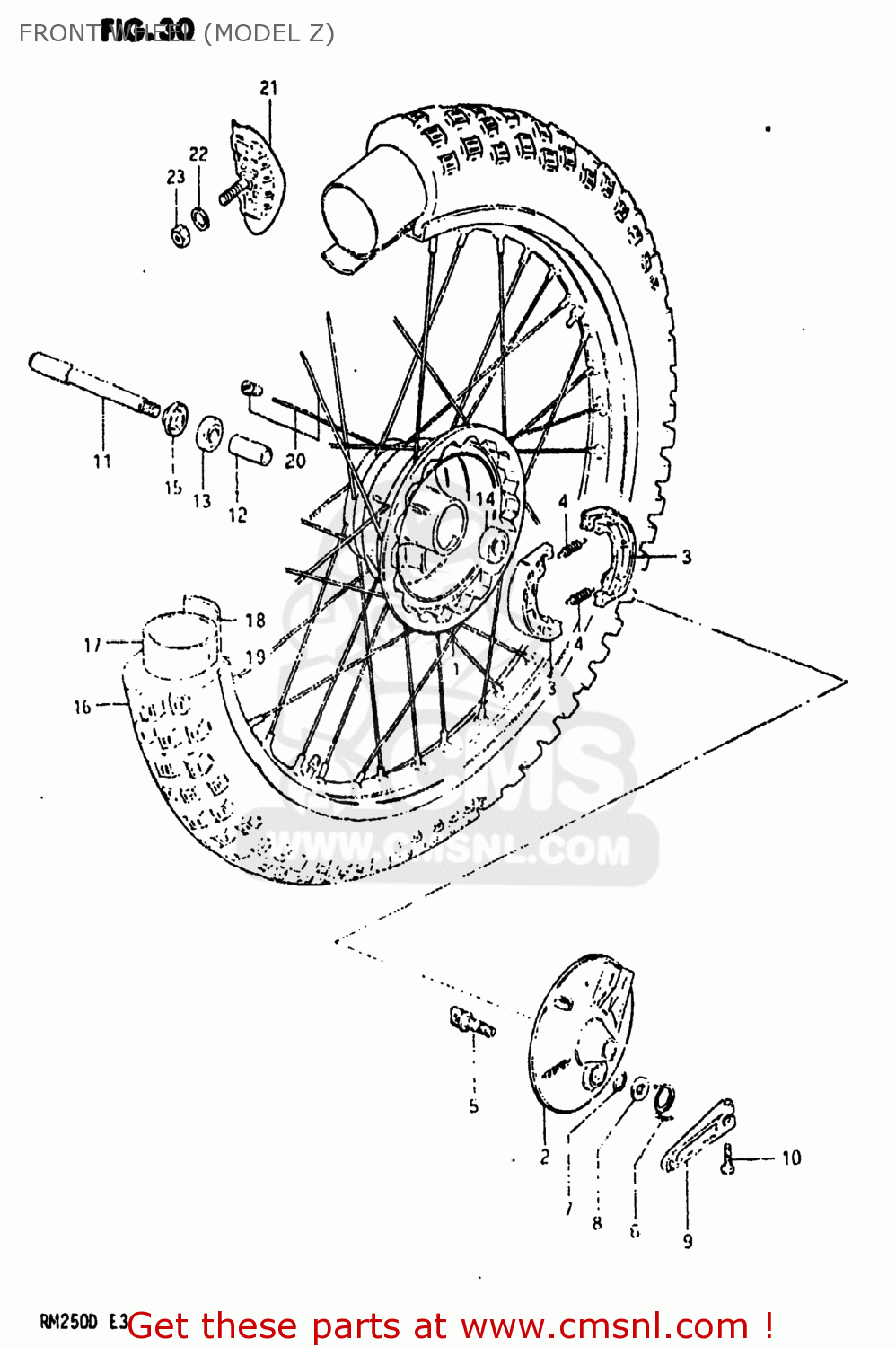

Front wheel (model z) diagram RM250 1982 (Z) USA (E03)
FRONT WHEEL (MODEL Z) RM250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411014202
ref: 1
HUB,FRONT
€ 156.50
2
5421014201
ref: 2
PANEL,FRONT HUB
€ 122.00
3
5441014200
ref: 3
54400-14860
SHOE,BRAKE
€ 45.00
4
0944308022
ref: 4
SPRING
€ 3.50
5
5444114201
ref: 5
CAM,FRONT BRAKE
€ 12.50
6
0944832007
ref: 6
SPRING
€ 8.00
7
0928012001
ref: 7
O RING(D:2.5,ID:11.4)
€ 2.50
8
0916012011
ref: 8
WASHER(12.5X20X1)
€ 1.50
9
5445114101
ref: 9
LEVER,FRONT BRAKE CAM
€ 35.50
10
0110706258
ref: 10
01500-06257
BOLT
€ 2.00
11
5471114202
ref: 11
54711-14500
AXLE,FRONT
€ 46.50
12
5473014100
ref: 12
SPACER,FRONT HUB BEARING
€ 23.00
13
0812362027
ref: 13
BEARING
€ 14.50
14
0814362027
ref: 14
BEARING
€ 12.50
15
5474014200
ref: 15
SPACER,FRONT AXLE,RIGHT
€ 8.50
16-1
5510014120
ref: 16-1
TIRE,FRONT
€ 0.00
16-2
5510014240
ref: 16-2
TIRE,FRONT
€ 0.00
17
5520028330
ref: 17
55200-16510
TUBE,INNER
€ 32.50
18
5526128330
ref: 18
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
19
5531114200
ref: 19
55311-14500
RIM,FRONT WHEEL
€ 124.50
20
5532014212
ref: 20
SPOKE SET,FRONT
€ 40.50
21
6527014300
ref: 21
STOPPER,BEAD
€ 26.00
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
23
0831022088
ref: 23
08310-00087
NUT 8MM
€ 2.00
