STAND - FOOTREST
RM250 1982 (Z) USA (E03)

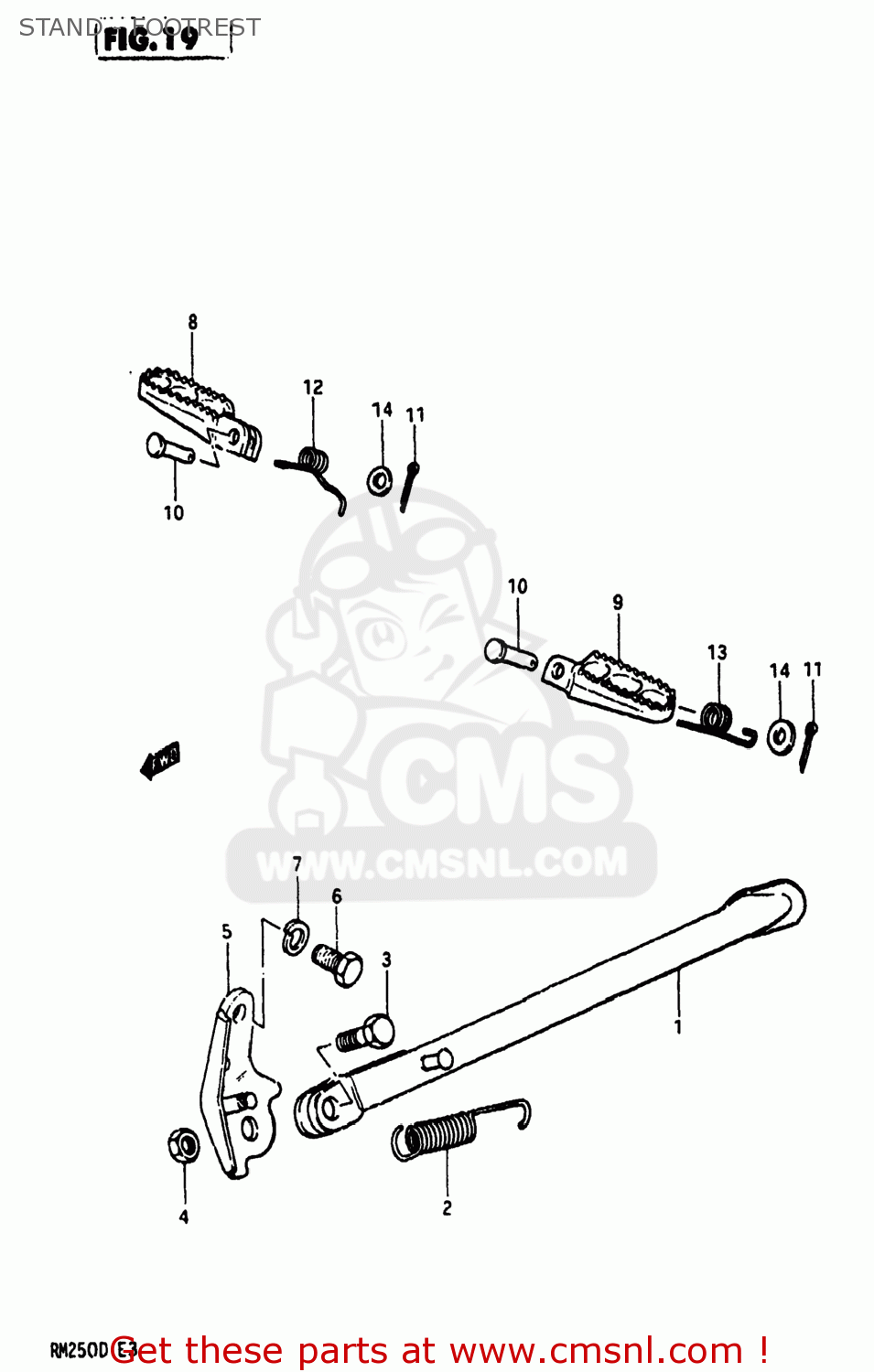

Stand - footrest diagram RM250 1982 (Z) USA (E03)
STAND - FOOTREST RM250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231014201
ref: 1
42310-14400-019
STAND,SIDE
€ 79.00
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4233014100
ref: 5
42330-14400-019
BRACKET,SIDE STAND
€ 97.50
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121108
ref: 7
08321-01107
LOCK WASHER
€ 2.00
8-1
4355137201
ref: 8-1
43551-37202-019
FOOTREST,RIGHT
€ 31.00
8-2
4355137202
ref: 8-2
43551-37202-019
FOOTREST,RIGHT
€ 31.00
9
4356140401
ref: 9
43561-40401-019
FOOTREST
€ 24.50
10
0920008035
ref: 10
09200-08064
PIN
€ 6.50
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
4358114300
ref: 12
SPRING
€ 6.00
13
4358214300
ref: 13
43582-14600
SPRING,FOOTREST,LEFT
€ 5.50
14
0832221088
ref: 14
08322-01087
WASHER
€ 2.00
