REAR SWINGING ARM (MODEL Z)
RM250 1982 (Z) USA (E03)

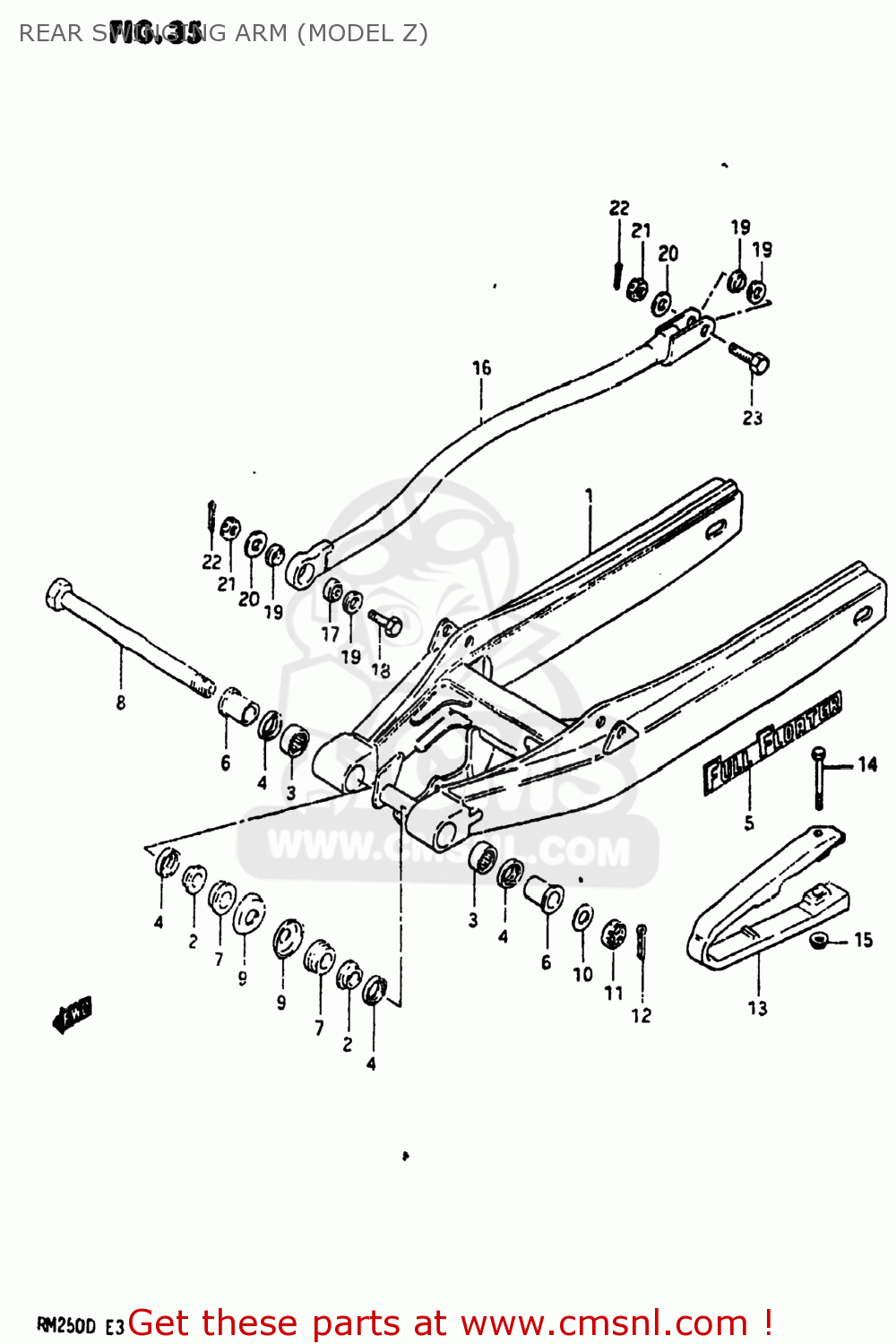

Rear swinging arm (model z) diagram RM250 1982 (Z) USA (E03)
REAR SWINGING ARM (MODEL Z) RM250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100014300
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
6126114110
ref: 2
BUSH,RR SWINGINGARM PIVOT
€ 10.00
3
0926320041
ref: 3
BEARING(20X27X20)
€ 15.00
4
0928520005
ref: 4
09283-20031
OIL SEAL
€ 5.00
5
683811410064D
ref: 5
EMBLEM,SWING ARM
€ 3.50
6
6125114100
ref: 6
SPACER,RR SWGARM PIVOT
€ 16.00
7
6125214100
ref: 7
SPACER,RR SWGARM PIVOT INNER
€ 12.50
8
6121114102
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 47.50
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
€ 4.00
10
0832211148
ref: 10
08322-01147
WASHER
€ 2.00
11
0831441148
ref: 11
08314-4014B
NUT 14MM
€ 3.00
12
0411130308
ref: 12
04111-3030A
COTTER PIN
€ 1.50
13
6127314210
ref: 13
61273-14211
BUFFER,CHAIN TOUCH DEFLECTOR
€ 25.00
14
0110706708
ref: 14
09100-06062
BOLT
€ 3.50
15
0831931068
ref: 15
08319-31067
NUT
€ 2.50
16
6430014813
ref: 16
LINK,REAR TORQUE
€ 133.50
17
6435240410
ref: 17
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
18
0910108003
ref: 18
BOLT 8X28
€ 2.00
19
6433940410
ref: 19
6433940410
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
21
0831441088
ref: 21
08314-4008B
NUT 8MM
€ 2.50
22
0411120208
ref: 22
04111-2020A
PIN 20X20
€ 1.50
23
0910108014
ref: 23
BOLT 8X29.5
€ 1.50
