FRAME -SEAT
RM250 1982 (Z)

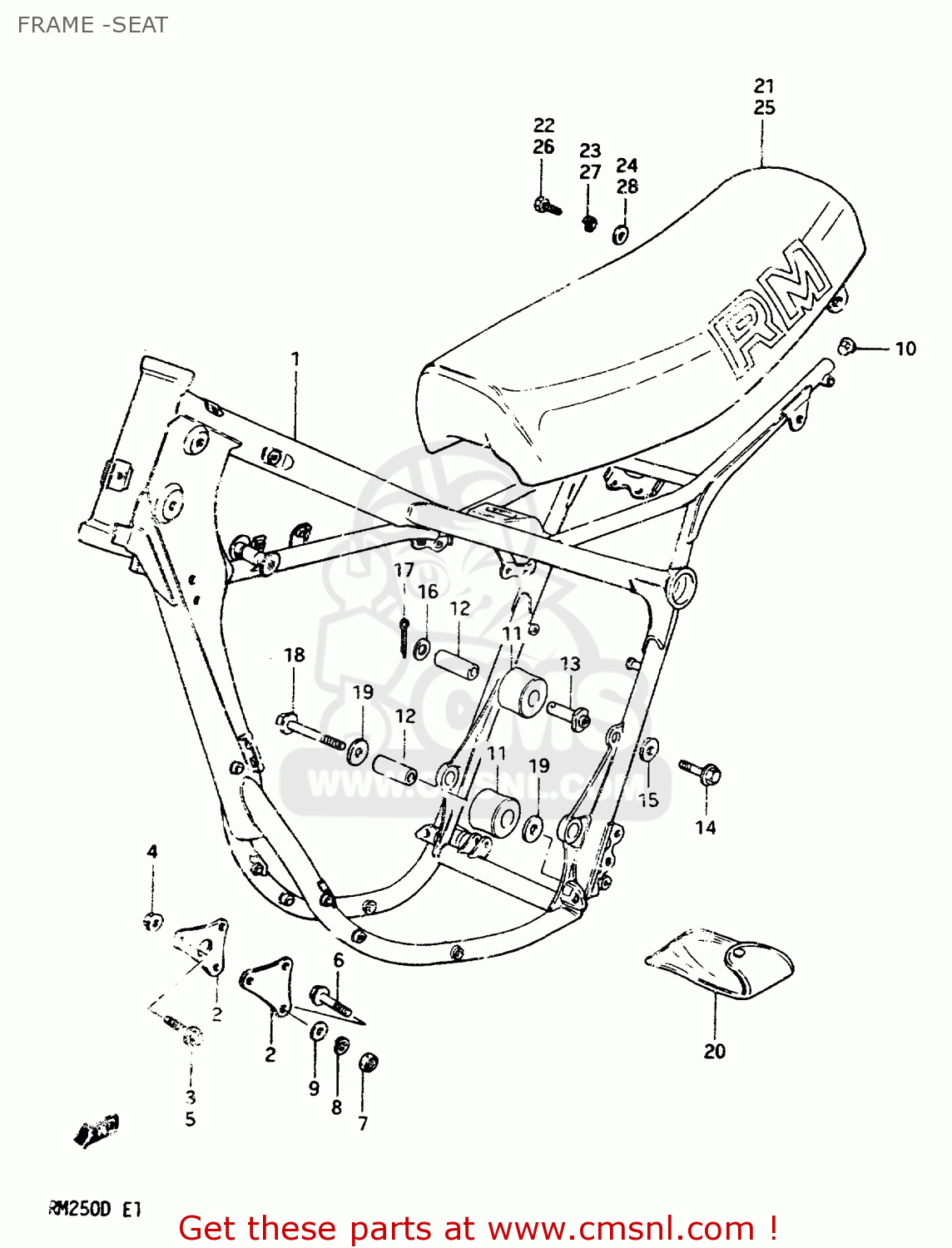

Frame -seat diagram RM250 1982 (Z)
FRAME -SEAT RM250 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110014301019
ref: 1-1
MODEL Z
FRAME
€ 0.00
1-2
4110014331019
ref: 1-2
MODEL D
FRAME
€ 661.50
2
4199114300
ref: 2
PLATE,ENGINE MOUNTING
€ 17.50
3
0910308027
ref: 3
MODEL Z
BOLT 8X55
€ 3.50
4
0831931087
ref: 4
MODEL Z
NUT
€ 2.50
5
0910308027
ref: 5
BOLT 8X55
€ 3.50
6
0910308103
ref: 6
BOLT
€ 5.00
7
0831000087
ref: 7
NUT
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
€ 2.00
9
0832211088
ref: 9
WASHER
€ 2.00
10
0925014006
ref: 10
PLUG(OD:17)
€ 3.00
11
4391114200
ref: 11
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
12
4391340400
ref: 12
SPACER,CHAIN LENGTH ROLLER
€ 8.00
13
4391514301
ref: 13
BOSS,CHAIN LENGTH ROLLER
€ 16.50
14
0151706207
ref: 14
BOLT 6X20
€ 2.50
15
0916006006
ref: 15
WASHER
€ 2.00
16
0832211128
ref: 16
WASHER
€ 2.00
17
0411125208
ref: 17
PIN 25X20
€ 2.00
18
0910308043
ref: 18
BOLT(8X45)
€ 4.50
19
0916008035
ref: 19
WASHER
€ 2.00
20
0980000233
ref: 20
TOOL SET
€ 0.00
21
451001413049R
ref: 21
MODEL Z
SEAT ASSEMBLY
€ 213.50
22
0110708168
ref: 22
MODEL Z
BOLT
€ 2.00
23
0832131087
ref: 23
MODEL Z
WASHER,LOCK
€ 2.00
24
0916008033
ref: 24
MODEL Z
WASHER (8.5X20X2.6)
€ 1.50
25
451001413049R
ref: 25
MODEL D
SEAT ASSEMBLY
€ 213.50
26
0150008207
ref: 26
MODEL D
BOLT
€ 3.00
27
0832121088
ref: 27
MODEL D
LOCK WASHER
€ 2.00
28
0916008065
ref: 28
MODEL D
WASHER
€ 1.50
