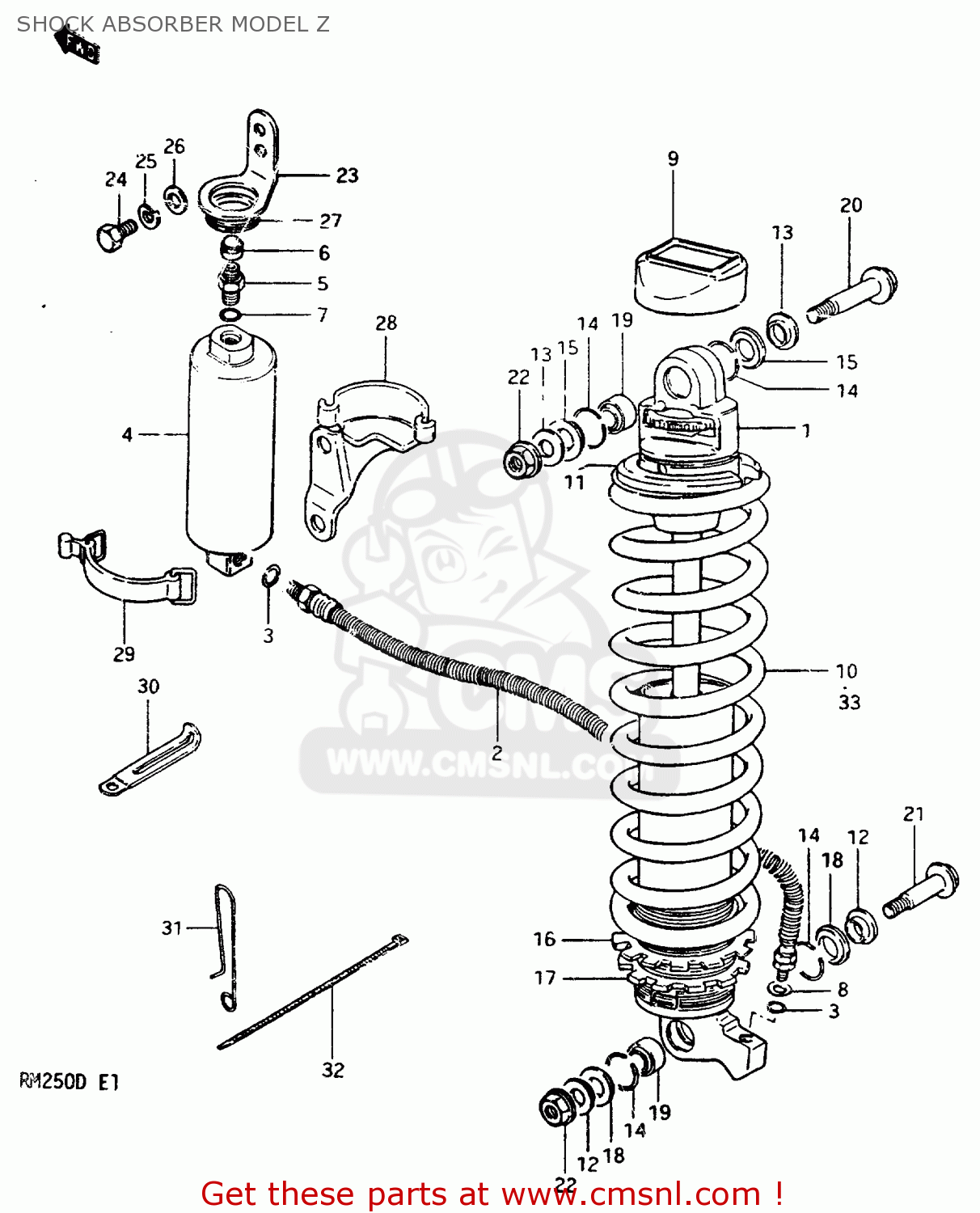

SHOCK ABSORBER MODEL Z

ref

part #

description

quantity

1

6210014300
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 68.00

2

6228014300
ref: 2

HOSE,REAR SHOCK ABSORBER

€ 0.00

3

6215440200
ref: 3

O-RING,RESERVE TANK

€ 1.50

4

6227014300
ref: 4

RESERVE TANK,REAR SHOCK

€ 0.00

5

6227414100
ref: 5

VALVE ASSEMBLY,REAR CUSHION

€ 15.00

6

5129440400
ref: 6

CAP,VALVE AIR

€ 4.00

7

5111741211
ref: 7

O RING

€ 6.50

8

6228514100
ref: 8

WASHER,REAR SHOCK HOSE

€ 3.00

9

6217914100
ref: 9

CAP REAR SHOCK

€ 5.50

10

6221114100
ref: 10

SPRING

€ 82.50

11

6222514100
ref: 11

SPRING, GUIDE

€ 0.00

12

6217714100
ref: 12

COLLAR

€ 16.00

13

6217714200
ref: 13

SPACER,REAR SHOCK,UPPER

€ 11.50

14

6265734A01
ref: 14

RING,STOPPER

€ 1.50

15

6222614200
ref: 15

DUST SEAL,UPR

€ 7.50

16

6219114100
ref: 16

GUIDE,SPRING

€ 20.50

17

6219414100
ref: 17

GUIDE,REAR SHOCK ABSORBER SPRING

€ 18.50

18

6222614100
ref: 18

DUST SEAL,LWR

€ 8.00

19

0926910007
ref: 19

BEARING

€ 66.00

20

0910310039
ref: 20

BOLT

€ 6.50

21

0910310040
ref: 21

BOLT(10X54)

€ 5.50

22

0831931107
ref: 22

NUT

€ 3.00

23

6241114301
ref: 23

BRACKET,RESERVOIR TANK

€ 0.00

24

0150006127
ref: 24

BOLT

€ 2.00

25

0832101067
ref: 25

WASHER,LOCK

€ 2.50

26

0916006006
ref: 26

WASHER

€ 2.00

27

6242314211
ref: 27

CUSHION,RESERVOIR TANK

€ 2.50

28

6242014303
ref: 28

BRACKET,RESERVOIR TANK

€ 19.50

29

0946200075
ref: 29

BAND

€ 8.50

30

0940406415
ref: 30

CLAMP

€ 3.00

31

6243114100
ref: 31

GUIDE RES HOSE CLAMP

€ 0.00

32

0940716401
ref: 32

CLAMP

€ 4.50

33-1

6221114110
ref: 33-1
OPT

SPRING

€ 82.50

33-2

6221114120
ref: 33-2
OPT

SPRING

€ 82.50

all assemblies
