REAR BRAKE MODEL Z
RM250 1982 (Z)

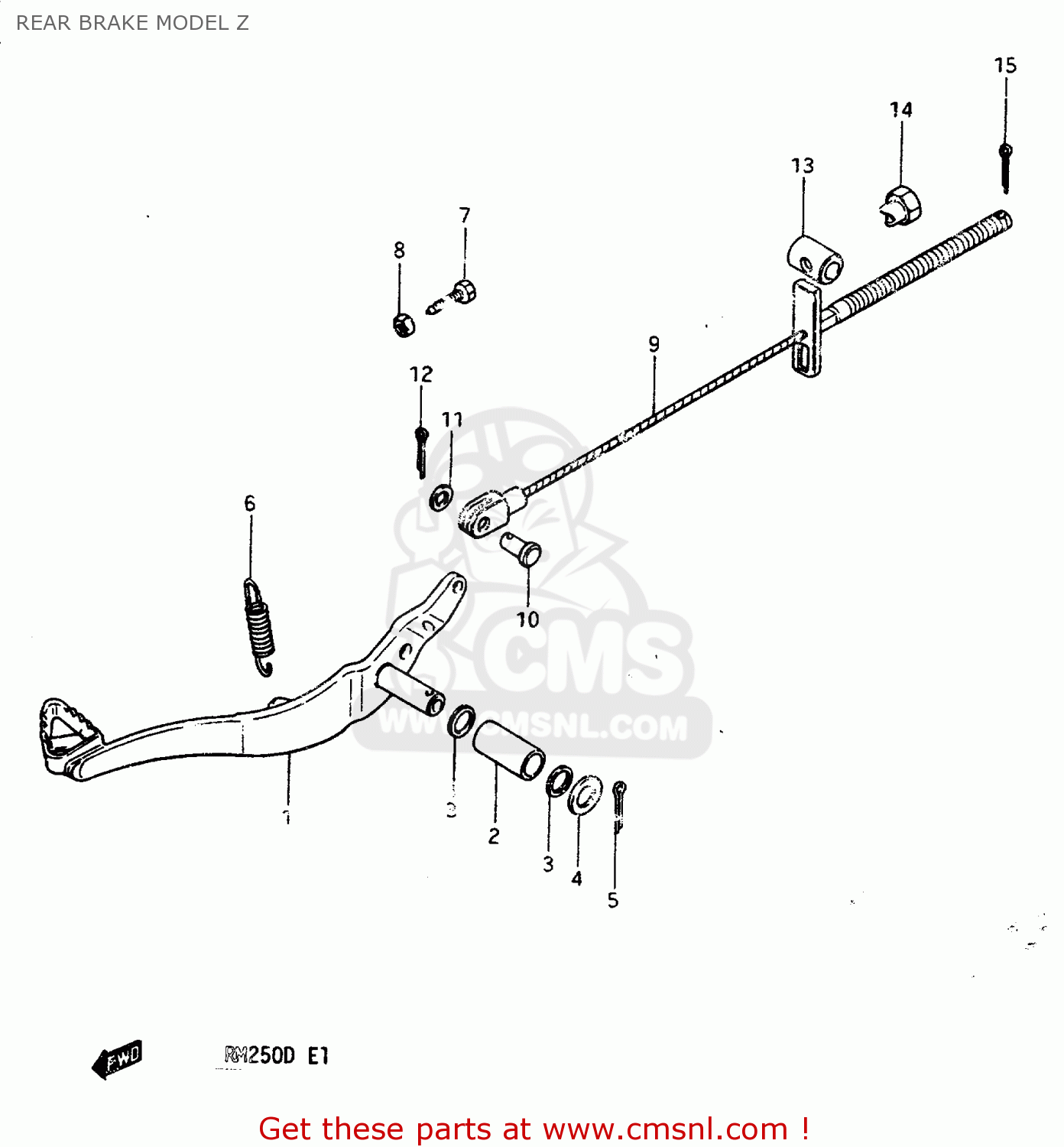

Rear brake model z diagram RM250 1982 (Z)
REAR BRAKE MODEL Z RM250 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
4311014212
ref: 1
PEDAL,BRAKE
€ 45.50
2
0931912022
ref: 2
BUSHING
€ 19.50
3
0928012006
ref: 3
O RING(D:2.2,ID:11.8)
€ 2.50
4
0821112223
ref: 4
WASHER
€ 2.50
5
0411130208
ref: 5
PIN 30X20
€ 1.50
6
0944831024
ref: 6
SPRING
€ 9.00
7
0912806028
ref: 7
SCREW(6X23)
€ 2.00
8
0831000067
ref: 8
NUT
€ 2.50
9
5851014201
ref: 9
CABLE,REAR BRAKE
€ 13.00
10
0920005001
ref: 10
PIN(L:17.5)
€ 1.50
11
0832201067
ref: 11
WASHER
€ 2.00
12
0411120208
ref: 12
PIN 20X20
€ 1.50
13
0920913004
ref: 13
PIN
€ 7.50
14
0915006009
ref: 14
NUT (6MM)
€ 3.50
15
0411120158
ref: 15
PIN
€ 1.50
