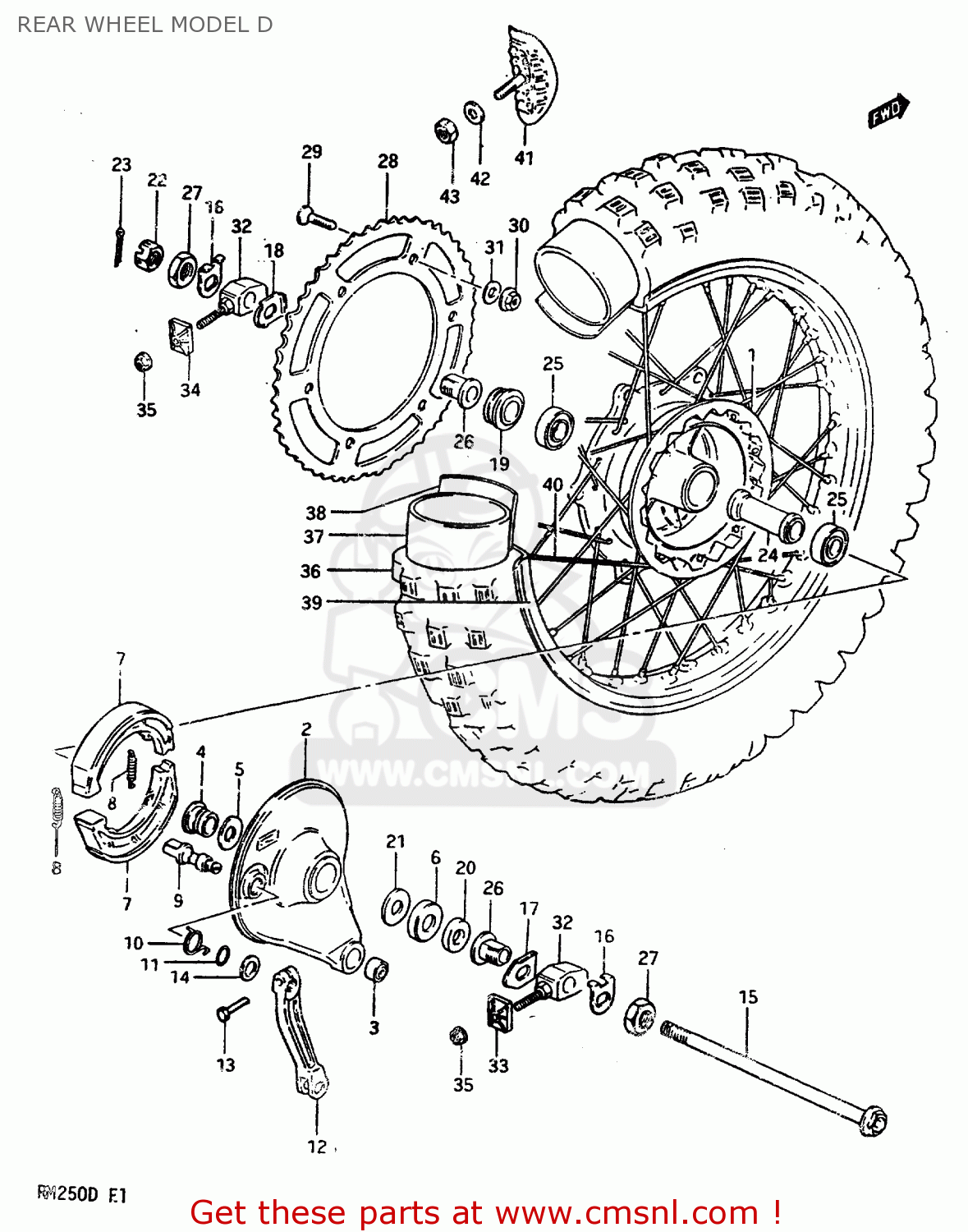

REAR WHEEL MODEL D

ref

part #

description

quantity

1

6411001B02
ref: 1

HUB,REAR WHEEL

€ 310.50

2

6420014841
ref: 2

PANEL SET,REAR

€ 107.00

3

6435240401
ref: 3

SPHERICAL BRNG,TORQUE LINK

€ 69.50

4

6421314100
ref: 4

SPACER,RR BRAKE ANCHOR PANEL

€ 17.00

5

0928320031
ref: 5

SEAL,OIL(20X27X5)

€ 5.00

6

6484514100
ref: 6

CVR,RR BRAKE AHR PNL DUST SEAL

€ 10.00

7

6441014100
ref: 7

SHOE,BRAKE (MCA)

€ 41.50

8

0944307025
ref: 8

SPRING(L:35.8)

€ 2.50

9

5444114101
ref: 9

CAM,FR BRAKE

€ 16.00

10

0944830007
ref: 10

SPRING

€ 19.00

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445114100
ref: 12

LEVER,RR BRAKE CAM

€ 62.50

13

0150006257
ref: 13

BOLT

€ 2.00

14

0916012011
ref: 14

WASHER(12.5X20X1)

€ 1.50

15

6471114201
ref: 15

AXLE,REAR

€ 150.50

16

6471214301
ref: 16

WASHER,CHAIN ADJUSTER GUIDE

€ 7.50

17

6478214200
ref: 17

PLATE,CHAIN ADJUSTER,RIGHT

€ 0.00

18

6479214200
ref: 18

PLATE,CHAIN ADJUSTER,LEFT

€ 10.50

19

6475014200
ref: 19

SPACER,RR AXLE,L

€ 16.00

20

6474114210
ref: 20

SPACER,REAR AXLE,RIGHT

€ 14.50

21

0821115281
ref: 21

WASHER,THRUST

€ 2.50

22

0914114004
ref: 22

NUT

€ 5.00

23

0411130308
ref: 23

COTTER PIN

€ 1.50

24

6473014101
ref: 24

SPACER

€ 31.50

25

0812362027
ref: 25

BEARING

€ 14.50

26

6478114201
ref: 26

SPACER,CHAIN ADJUSTER

€ 27.00

27

0914022006
ref: 27

NUT

€ 6.00

28-1

6451140271
ref: 28-1

SPROCKET,REAR

€ 99.00

28-2

6451140281
ref: 28-2
OPT

SPROCKET,REAR

€ 99.00

28-3

6451140261
ref: 28-3
OPT

SPROCKET,RR(NT:51 AL)

€ 87.50

29

0912008004
ref: 29

SCREW(8X33.5)

€ 3.00

30

0831931087
ref: 30

NUT

€ 2.50

31

0832211088
ref: 31

WASHER

€ 2.00

32

6141014131
ref: 32

ADJUSTER,CHAIN

€ 15.50

33

6142114220
ref: 33

PLATE,CHAIN ADJUSTER GEAR

€ 5.00

34

6143114200
ref: 34

PLATE,CHAIN ADJUSTER GEAR

€ 9.00

35

0831931107
ref: 35

NUT

€ 3.00

36-1

6510014340
ref: 36-1
DUNLOP

TIRE

€ 0.00

36-2

6510014320
ref: 36-2
BS

TIRE

€ 0.00

37

6520040430
ref: 37

TUBE,INNER

€ 0.00

38

6526115010
ref: 38

PROTECTOR,WHEEL,INNER

€ 3.50

39

6531114600
ref: 39

RIM,REAR WHEEL (2.15-18)(

€ 272.00

40

6532014112
ref: 40

SPOKE SET,REAR

€ 50.00

41

6527014200
ref: 41

STOPPER,BEAD

€ 38.00

42

0832211088
ref: 42

WASHER

€ 2.00

43

0831012088
ref: 43

NUT

€ 2.00
