REAR SWINGING ARM MODEL D
RM250 1982 (Z)

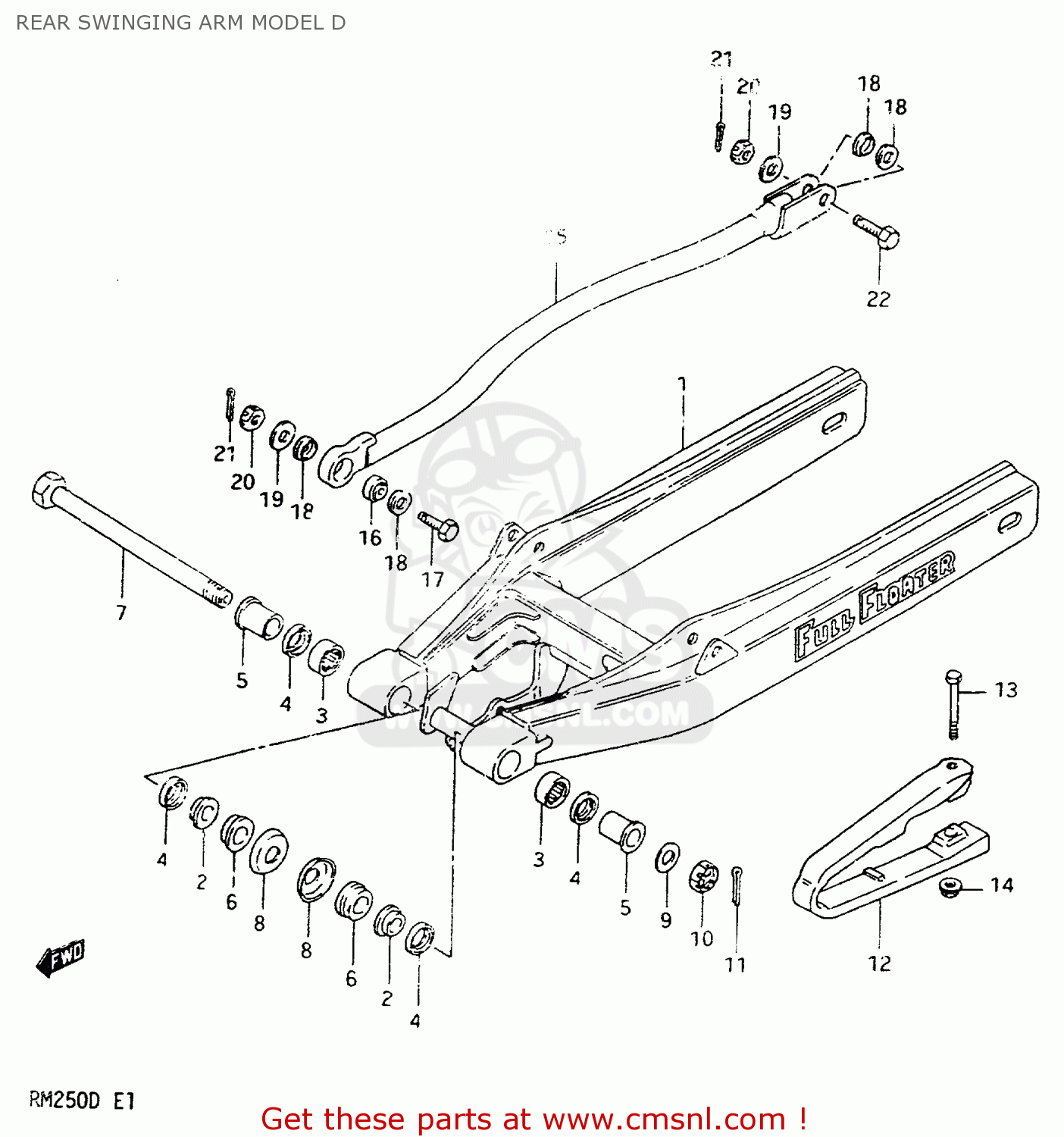

Rear swinging arm model d diagram RM250 1982 (Z)
REAR SWINGING ARM MODEL D RM250 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
6100014320
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
6126140402
ref: 2
BUSHING,REAR SWING ARM PIVOT
€ 26.00
3
0926320041
ref: 3
BEARING(20X27X20)
€ 15.00
4
0928520005
ref: 4
OIL SEAL
€ 5.00
5
6125114100
ref: 5
SPACER,RR SWGARM PIVOT
€ 16.00
6
6125214100
ref: 6
SPACER,RR SWGARM PIVOT INNER
€ 12.50
7
6121114102
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 47.50
8
6126240400
ref: 8
COVER,RR SWGARM DUST SEAL
€ 4.00
9
0832211148
ref: 9
WASHER
€ 2.00
10
0831441148
ref: 10
NUT 14MM
€ 3.00
11
0411130308
ref: 11
COTTER PIN
€ 1.50
12
6127314211
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 25.00
13
0910006062
ref: 13
BOLT(6X70)
€ 3.50
14
0831931067
ref: 14
NUT
€ 2.50
15
6430014820
ref: 15
TORQUE LINK SET,RR
€ 125.50
16
6435240411
ref: 16
SPHERICAL BEARING,TORQUE
€ 69.50
17
0910108003
ref: 17
BOLT 8X28
€ 2.00
18
6433940410
ref: 18
6433940410
19
0832211088
ref: 19
WASHER
€ 2.00
20
0831441088
ref: 20
NUT 8MM
€ 2.50
21
0411120208
ref: 21
PIN 20X20
€ 1.50
22
0910108014
ref: 22
BOLT 8X29.5
€ 1.50
