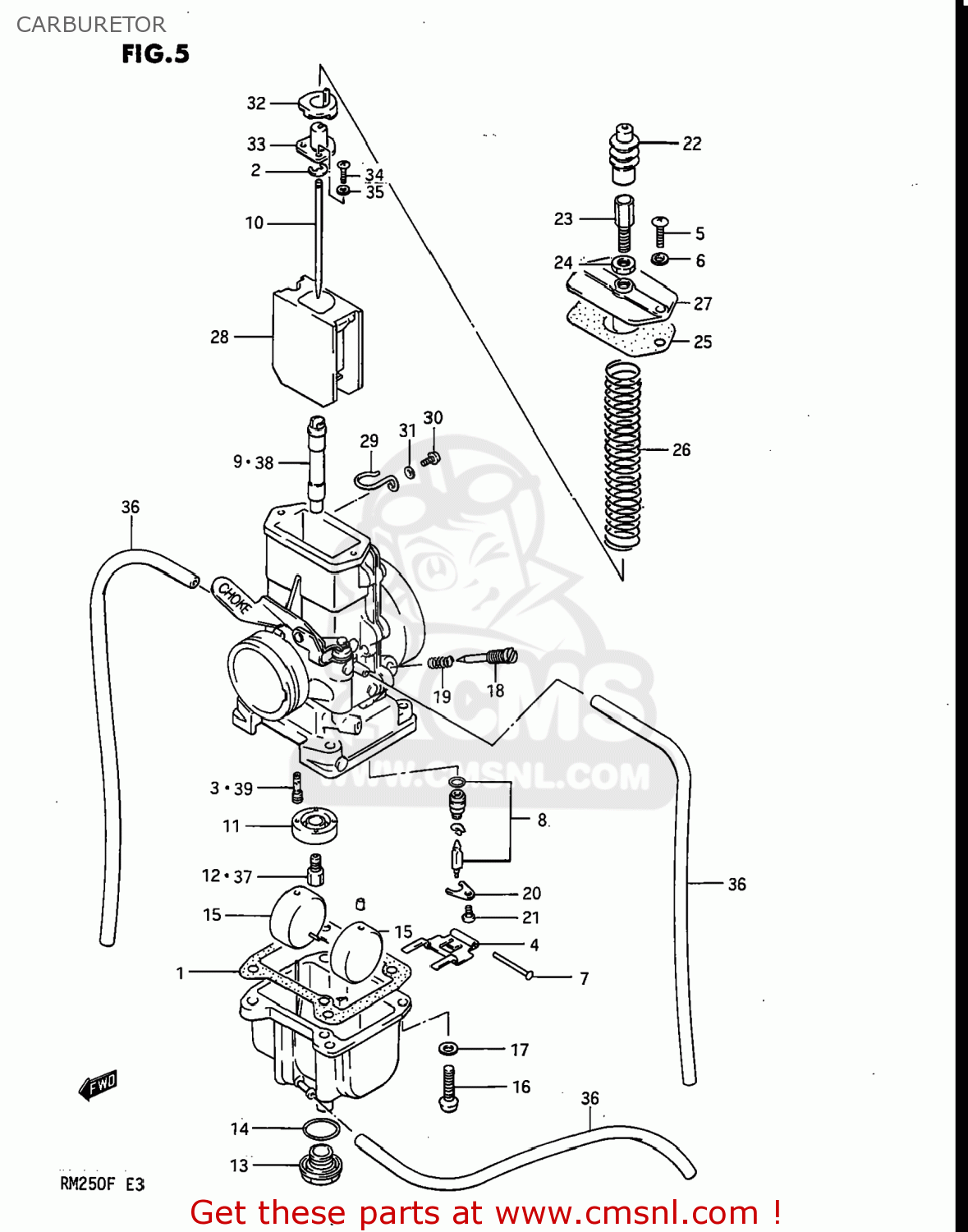

CARBURETOR

ref

part #

description

quantity

1320014600
ref:

CARBURETOR ASSEMBLY (VM36)

€ 0.00

1320014610
ref:

CARBURETOR ASSEMBLY (VM38)

€ 381.50

1

1325114300
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 10.50

2

1339410010
ref: 2

CLIP

€ 4.50

3

0949250010
ref: 3

JET,PILOT(50)

€ 8.00

4

1325340010
ref: 4

ARM,FLOAT

€ 8.00

5

0211204128
ref: 5
02112-0412A

SCREW

€ 1.50

6

0832121048
ref: 6
08321-0104A

LOCK WASHER

€ 2.00

7

1325492311
ref: 7

PIN,FLOAT

€ 2.00

8

1337014300
ref: 8
13370-43B00

VALVE ASSEMBLY,NEEDLE

€ 52.50

9-1

0949400357
ref: 9-1

JET,NEEDLE(R-0)

€ 16.50

9-2

0949400403
ref: 9-2

JET,NEEDLE

€ 18.50

10

1338314300
ref: 10

NEEDLE,JET

€ 12.50

11

1333114300
ref: 11

RING,MAIN JET FIXING

€ 0.00

12

0949164002
ref: 12

JET,MAIN(320)

€ 8.50

13

1324732210
ref: 13

SCREW,GUIDE

€ 13.00

14

1324941310
ref: 14

O RING,DRAIN PLUG

€ 5.00

15

1325218620
ref: 15

FLOAT

€ 27.50

16

0211205208
ref: 16
02112-05207

SCREW 5X20

€ 3.00

17

0832121058
ref: 17
08321-0105A

LOCK WASHER

€ 2.00

18

1326946010
ref: 18
13269-95110

SCREW,PILOT AIR

€ 8.50

19

1326801010
ref: 19

SPRING

€ 3.50

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204068
ref: 21
02112-0406B

SCREW 4X6

€ 2.00

22

1368141510
ref: 22

CAP,CABLE ADJUSTER

€ 11.00

23

1357741612
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1326614300
ref: 25

GASKET,MIXING CHAMBER (NAS)

€ 4.00

26

1357314300
ref: 26

SPRING,THROTTLE VALVE

€ 7.50

27

1326114300
ref: 27

CAP,CARBURETOR,TOP

€ 14.50

28

1355114300
ref: 28

VALVE,THROTTLE

€ 68.00

29

1369214500
ref: 29

CLIP

€ 4.00

30

0211204168
ref: 30
02112-0416A

SCREW

€ 1.00

31

0832121048
ref: 31
08321-0104A

LOCK WASHER

€ 2.00

32

1338714230
ref: 32

SEAT,RETURN SPRING

€ 6.00

33

1339814310
ref: 33

PLATE,NEEDLE JET

€ 7.00

34

0211203108
ref: 34
02112-03107

SCREW

€ 1.50

35

0832121038
ref: 35
09162-03001

LOCK WASHER

€ 1.50

36-1

0934304046
ref: 36-1
09352-40703-600

HOSE

€ 3.00

36-2

0934304046
ref: 36-2
09352-40703-600

HOSE

€ 3.00

36-3

0934304046
ref: 36-3
09352-40703-600

HOSE

€ 3.00

37-1

0949160007
ref: 37-1

JET,MAIN(300)

€ 9.50

37-2

0949162005
ref: 37-2

JET,MAIN(310)

€ 10.50

37-3

0949166002
ref: 37-3

JET,MAIN(330)

€ 10.50

37-4

0949168002
ref: 37-4

JET,MAIN(340)

€ 8.50

37-5

0949170011
ref: 37-5

JET,MAIN(350)

€ 8.50

38-1

0949400453
ref: 38-1

JET

€ 19.50

38-2

0949400356
ref: 38-2

JET,NEEDLE

€ 17.00

38-3

0949400393
ref: 38-3

JET,NEEDLE

€ 20.00

39-1

0949240004
ref: 39-1

JET,PILOT(40)

€ 17.50

39-2

0949260004
ref: 39-2

JET,PILOT

€ 7.50
