FRONT FORK (MODEL E)
RM250 1984 (E) USA (E03)

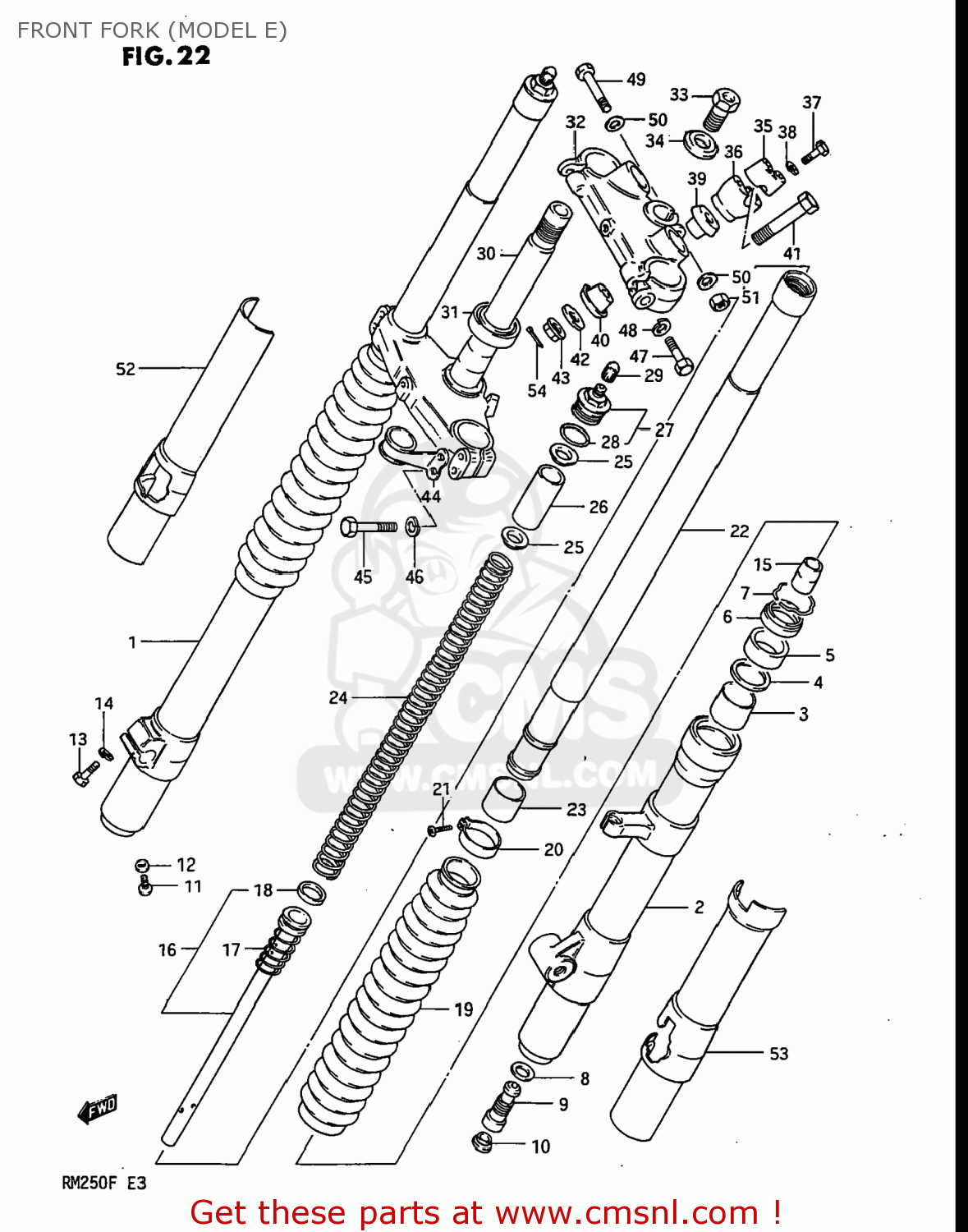

Front fork (model e) diagram RM250 1984 (E) USA (E03)
FRONT FORK (MODEL E) RM250 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
511001461019F
ref:
DAMPER SET
€ 1,056.50
1
5113014500
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114014500
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714200
ref: 3
51167-40C00
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115314330
ref: 5
SEAL,OIL
€ 11.00
6
5117314330
ref: 6
SEAL,DUST
€ 9.50
7
5115614200
ref: 7
RING,STOPPER
€ 4.50
8
5114814330
ref: 8
GASKET,FORK CYLINDER
€ 2.50
9
5177014500
ref: 9
VALVE,DF
€ 39.50
10
5118914500
ref: 10
CAP,FRONT FORK DF
€ 5.00
11
0211204068
ref: 11
02112-0406B
SCREW 4X6
€ 2.00
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0110708308
ref: 13
01500-08307
BOLT (8X30)
€ 2.50
14
0832131088
ref: 14
08321-01087
WASHER,LOCK,8.
€ 2.00
15
5119514330
ref: 15
PIECE,FRONT FORK OIL LOCK
€ 10.50
16
5114614500
ref: 16
CYLINDER,FRONT FORK
€ 75.50
17
5117714330
ref: 17
SPRING,REBOUND
€ 5.50
18
5119614330
ref: 18
RING,FRONT FORK PISTON
€ 6.50
19
515711450019F
ref: 19
51571-14500-38K
BOOT,FRONT FORK COVER
€ 61.50
20
5157514500
ref: 20
BAND,BOOT,UPPER
€ 7.00
21
0211204108
ref: 21
02112-04107
SCREW 4X10
€ 2.00
22
5111014500
ref: 22
TUBE,FORK,INNER
€ 0.00
23
5112114200
ref: 23
PISTON
€ 14.00
24
5117114600
ref: 24
SPRING,FRONT FORK
€ 0.00
25
5117214500
ref: 25
51172-14200
GUIDE,FRONT FORK SPRING
€ 5.00
26
5117614610
ref: 26
SPACER,FRONT FORK SPRING
€ 10.00
27
5135114500
ref: 27
CAP,FORK INNER TUBE
€ 31.50
28
5111714200
ref: 28
O RING
€ 2.00
28
5111714200
ref: 28
O RING
€ 2.00
29
5129420400
ref: 29
CAP
€ 3.50
30
5141014500
ref: 30
STEM,STEERING
€ 262.50
31
0926530005
ref: 31
09265-30009
BEARING
€ 49.50
32
5131114600
ref: 32
HEAD,STEERING STEM
€ 0.00
33
5135141320
ref: 33
BOLT
€ 8.50
34
5135641310
ref: 34
WASHER
€ 6.00
35
5621127100
ref: 35
HOLDER,HANDLEBAR
€ 12.50
36
5622123450
ref: 36
HOLDER,HANDLE LWR
€ 22.50
37
0110708358
ref: 37
01500-0835B
BOLT
€ 3.50
38
0832131088
ref: 38
08321-01087
WASHER,LOCK,8.
€ 2.00
39
5624114200
ref: 39
DAMPER,UPR
€ 32.00
40
5624214200
ref: 40
DAMPER,LWR
€ 21.50
41
5132114200
ref: 41
56321-28C00
BOLT,HANDLE HOLDER
€ 6.50
42
5135640400
ref: 42
09160-10035
WASHER,HANDLEBAR HOLDER
€ 2.00
43
0831931108
ref: 43
NUT
€ 3.00
44
5862114500
ref: 44
58621-14520
GUIDE,CABLE
€ 8.00
45
0110708408
ref: 45
01500-0840A
BOLT 8X40
€ 3.00
46
0832131088
ref: 46
08321-01087
WASHER,LOCK,8.
€ 2.00
47
0110710458
ref: 47
01500-1045A
BOLT
€ 2.00
48
0832131108
ref: 48
08321-01107
LOCK WASHER
€ 2.00
49
0110708508
ref: 49
01500-08507
BOLT 8X50
€ 3.00
50
0832211088
ref: 50
08322-01087
WASHER
€ 2.00
51
0831012088
ref: 51
08310-00087
NUT
€ 2.00
52
5120114500163
ref: 52
PROTECTOR,RIGHT
€ 0.00
53
5120214500163
ref: 53
51202-14501-163
PROTECTOR
€ 25.50
54
0411120208
ref: 54
04111-2020A
PIN 20X20
€ 1.50
54
0411120208
ref: 54
04111-2020A
PIN 20X20
€ 1.50
