CLUTCH
RM250 1984 (E) USA (E03)

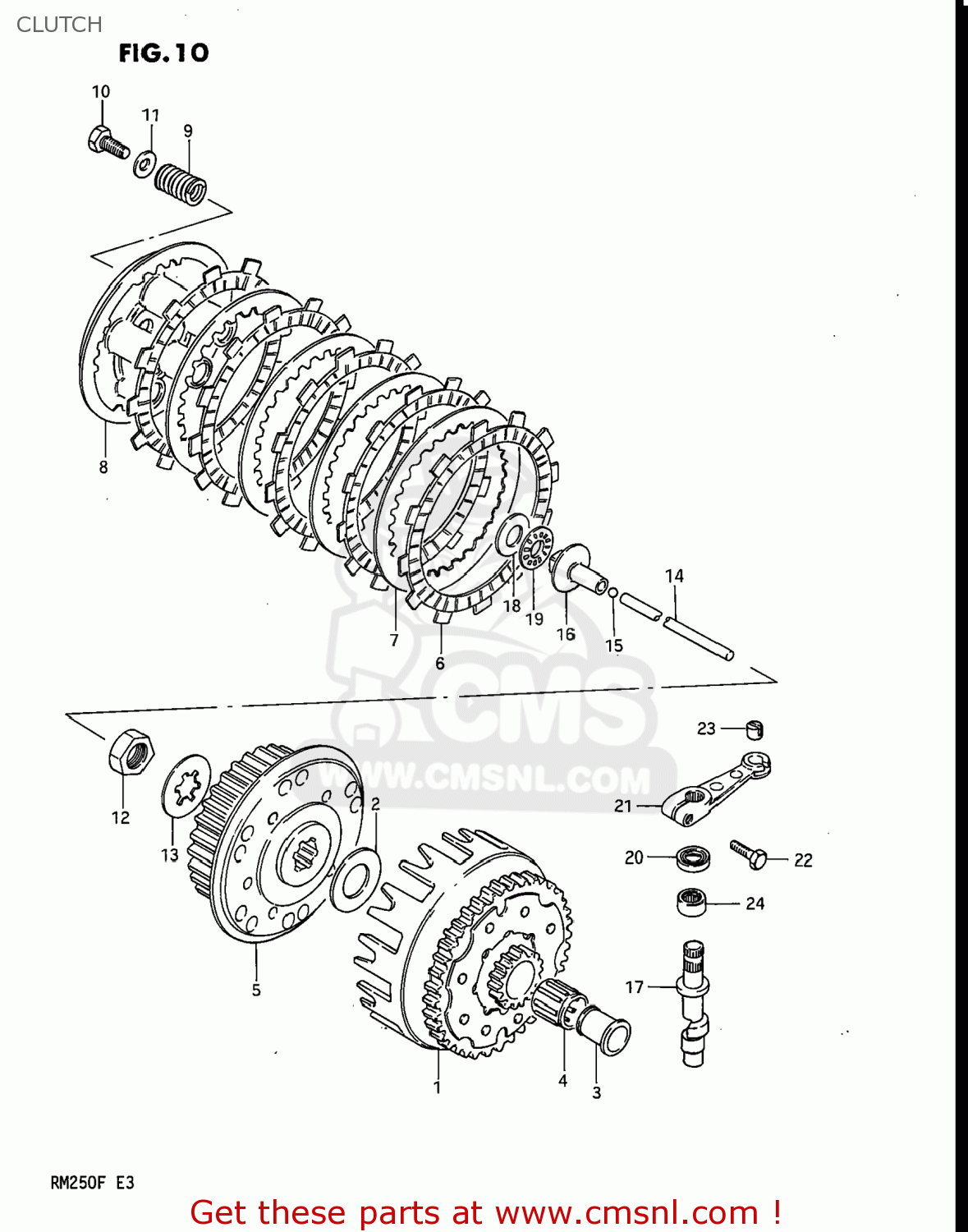

Clutch diagram RM250 1984 (E) USA (E03)
CLUTCH RM250 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120014310
ref: 1
21200-14311
GEAR ASSEMBLY,PRIMARY DRIVE
€ 279.50
2
0916020028
ref: 2
WASHER(20X38X2)
€ 6.50
3-1
2125114600
ref: 3-1
21251-14601
SPACER
€ 34.50
3-2
2125114601
ref: 3-2
SPACER
€ 34.50
4
0926325042
ref: 4
09263-25044
BEARING
€ 26.50
5
2141114300
ref: 5
HUB,CLUTCH SLEEVE
€ 95.50
6
2144140402
ref: 6
21441-37400
PLATE,CLUTCH DRIVE (MCA)
€ 20.50
7-1
2145131000
ref: 7-1
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 9.00
7-2
2145140001
ref: 7-2
21451-31000
PLATE,CLUTCH DRIVEN (NAS)
€ 9.00
8-1
2146214300
ref: 8-1
21462-14301
DISC,CLUTCH PRESSURE
€ 51.00
8-2
2146214301
ref: 8-2
DISC,CLUTCH PRESSURE
€ 51.00
9
0944019007
ref: 9
SPRING
€ 3.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0916006020
ref: 11
09160-06066
WASHER
€ 2.00
12
0914020002
ref: 12
09140-20001
NUT (20MM)
€ 3.50
13
0916720006
ref: 13
09167-20009
WASHER,LOCK
€ 3.00
14
2311114300
ref: 14
ROD,CLUTCH PUSH
€ 14.50
15
0611108003
ref: 15
BALL
€ 1.50
16
2312114300
ref: 16
PIECE,CLUTCH PUSH
€ 17.50
17
2312214601
ref: 17
SHAFT,CLUTCH RELEASE C
€ 33.50
18
0916015015
ref: 18
09160-15045
WASHER
€ 4.00
19
0926315003
ref: 19
BEARING(15X28X2)
€ 7.00
20
0928512004
ref: 20
SEAL,OIL(12X19X5)
€ 9.00
21
2327114200
ref: 21
ARM,CLUTCH RELEASE
€ 39.50
22
0110706208
ref: 22
01500-06207
BOLT
€ 2.00
23
2322214200
ref: 23
PIECE,RELEASE ARM END
€ 7.50
24
0926312014
ref: 24
BEARING(12X19X12)
€ 11.00
