FRAME COVER
RM250 1984 (E) USA (E03)

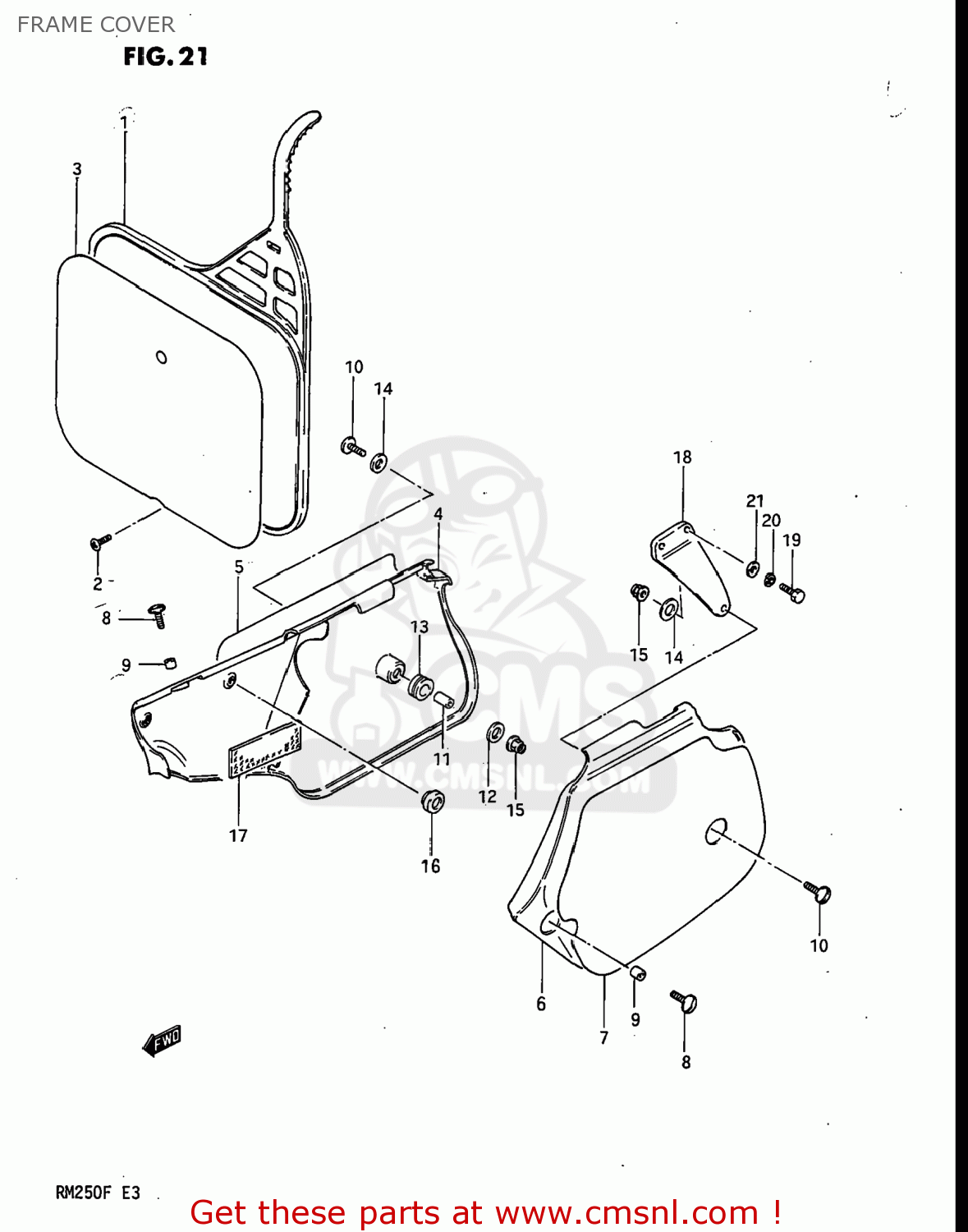

Frame cover diagram RM250 1984 (E) USA (E03)
FRAME COVER RM250 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9491114501163
ref: 1
94911-00B10-25Y
PLATE,NUMBER,FRONT
€ 45.00
2
0214205165
ref: 2
02142-0516A
SCREW
€ 2.50
3
6825514500722
ref: 3
EMBLEM,FRONT NUMBER PLATE
€ 0.00
4
4711114500163
ref: 4
47111-14500-13L
COVER,FRAME,RIGHT
€ 150.50
5
6813214500722
ref: 5
68132-14500-291
EMBLEM
€ 12.00
6
4721114500163
ref: 6
COVER,FRAME,LEFT
€ 48.00
7
6814214500722
ref: 7
EMBLEM,NUMBER PLATE,LEFT
€ 28.00
8
0912506045
ref: 8
SCREW(6X14)
€ 13.50
9
0918006098
ref: 9
09180-06245
SPACER (6.1X8X3.5)
€ 3.00
10
0912506046
ref: 10
SCREW(6X20)
€ 16.50
11
0918006011
ref: 11
09180-06263
SPACER (6.1X9X9)
€ 2.00
12
0916006004
ref: 12
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
13
0932008018
ref: 13
CUSHION
€ 4.00
14
9492714100
ref: 14
09160-06084
WASHER FRAME COVER
€ 2.00
15
0831921068
ref: 15
08319-2106A
NUT 6MM
€ 2.00
16
0932110013
ref: 16
09321-10018
CUSHION
€ 5.00
17
4712214500
ref: 17
HEAT SHIELD,FRAME COVER
€ 4.50
18
4722514500
ref: 18
STAY,FRAME COVER,LEFT
€ 13.50
19
0110706166
ref: 19
01500-0616A
BOLT
€ 2.00
20
0832121066
ref: 20
08321-0106A
WASHER,LOCK
€ 2.00
21
0916006019
ref: 21
WASHER(6.5X16X1.2)
€ 1.50
