RM250 1984 (E) USA (E03)

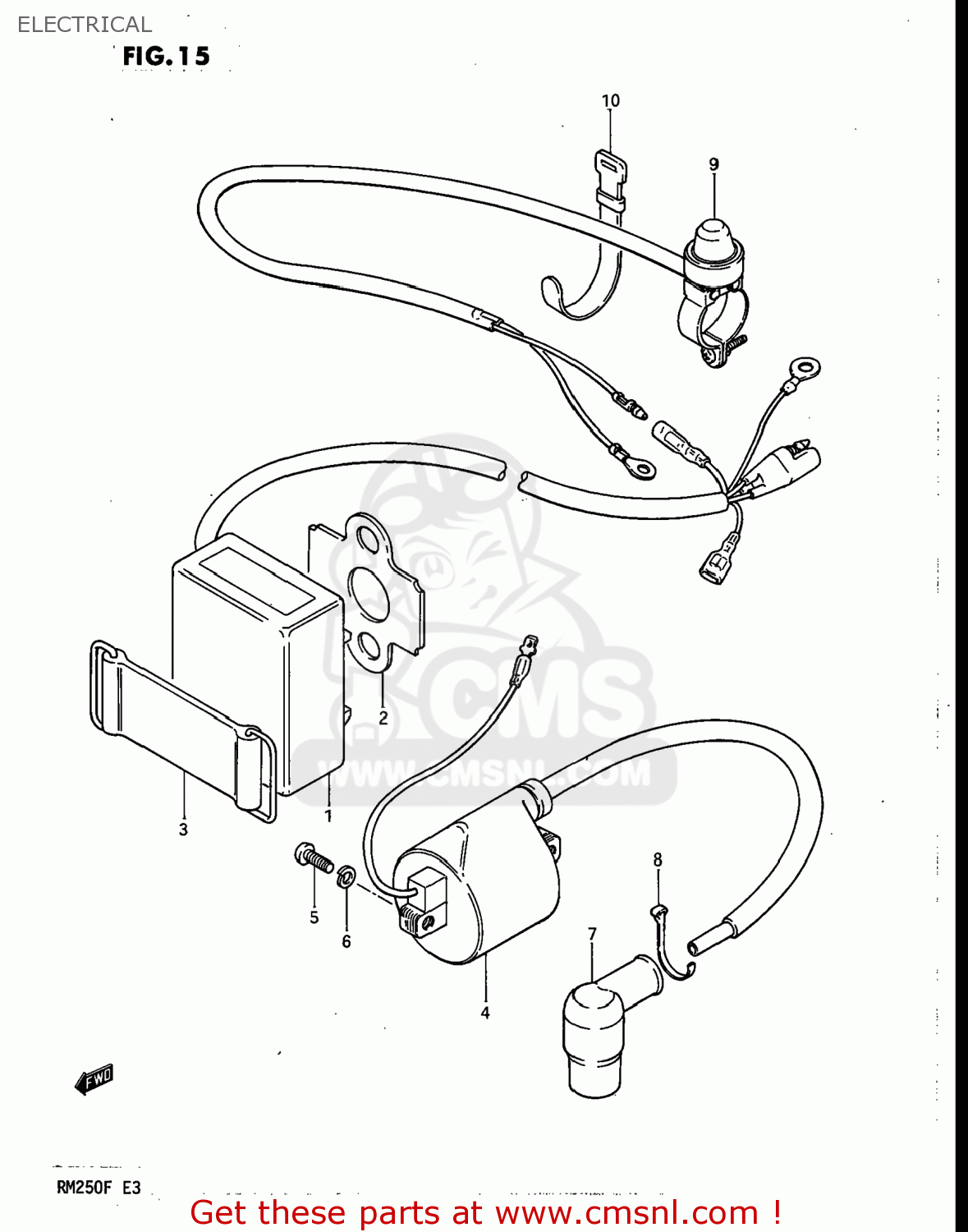

Electrical diagram RM250 1984 (E) USA (E03)
ELECTRICAL RM250 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290014320
ref: 1
CDI UNIT
€ 323.00
2
3294114300
ref: 2
PROTECTOR,CDI UNIT
€ 4.00
3
3294214300
ref: 3
32942-14301
BAND
€ 10.00
4
3341014600
ref: 4
33410-01X50
COIL ASSEMBLY,IGNITION
€ 90.00
5
0211206208
ref: 5
02112-06207
SCREW
€ 2.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
3351041111
ref: 7
33510-20A02
CAP,SPARK PLUG
€ 23.00
8
0940709402
ref: 8
CLAMP
€ 3.00
9
3782040401
ref: 9
37820-14X50
SWITCH ASSEMBLY
€ 24.50
10
0940712402
ref: 10
CLAMP(L:120)
€ 3.00
10
0940712402
ref: 10
CLAMP(L:120)
€ 3.00
