AIR CLEANER
RM250 1996 (T) USA (E03)

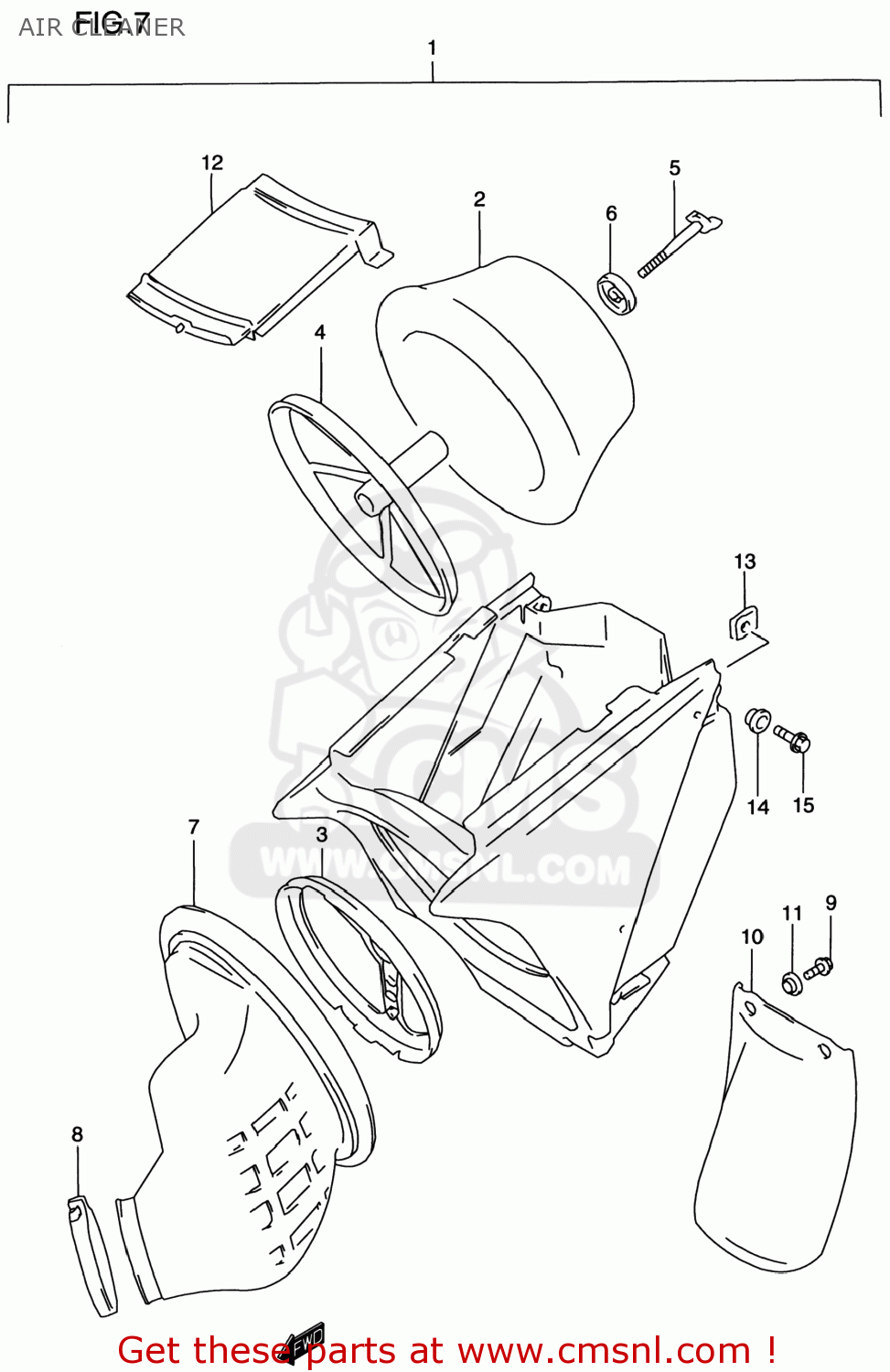

Air cleaner diagram RM250 1996 (T) USA (E03)
AIR CLEANER RM250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370037E00
ref: 1-1
CLEANER ASSY,AIR
€ 258.50
1-2
1370037E20
ref: 1-2
13700-37E21
CLEANER ASSEMBLY,AIR
€ 240.50
1-3
1370037E21
ref: 1-3
CLEANER ASSY,AIR
€ 240.50
1-4
1370037E40
ref: 1-4
CLEANER ASSY,AIR
€ 242.50
2-1
1378036E00
ref: 2-1
FILTER ASSY
€ 43.00
2-2
1378036E20
ref: 2-2
FILTER ASSY
€ 42.00
3
1379036E00
ref: 3
BASE,FILTER
€ 17.50
4
1379136E00
ref: 4
HOLDER,FILTER
€ 14.50
5-1
1383128E00
ref: 5-1
13831-37F20
BOLT,WING
€ 5.50
5-2
1383137E20
ref: 5-2
BOLT,WING
€ 7.50
6
1379213A01
ref: 6
WASHER,AIR CLEANER
€ 3.00
7-1
1388137E00
ref: 7-1
TUBE,OUTLET
€ 58.00
7-2
1388137E21
ref: 7-2
TUBE,OUTLET
€ 58.50
7-3
1388137E30
ref: 7-3
TUBE,OUTLET
€ 44.50
8
0940270203
ref: 8
09402-70902
CLAMP
€ 6.00
9
0154706163
ref: 9
01547-0616B
BOLT
€ 2.50
10-1
1373836E00
ref: 10-1
13738-36E01
GUARD,MUD
€ 18.50
10-2
1373836E01
ref: 10-2
MUDGUARD
€ 18.50
11
1383802B00
ref: 11
COLLAR
€ 2.50
12
1374136E00
ref: 12
CAP,AIR CLEANER
€ 13.50
13
7181282010
ref: 13
09148-06021
HOLDER,REAR BU
€ 3.00
14
0916906054
ref: 14
09169-06053
WASHER
€ 2.00
15
0154706203
ref: 15
01547-0620B
SCREW
€ 2.50
