STAND - FOOTREST

RM250 1996 (T) USA (E03)

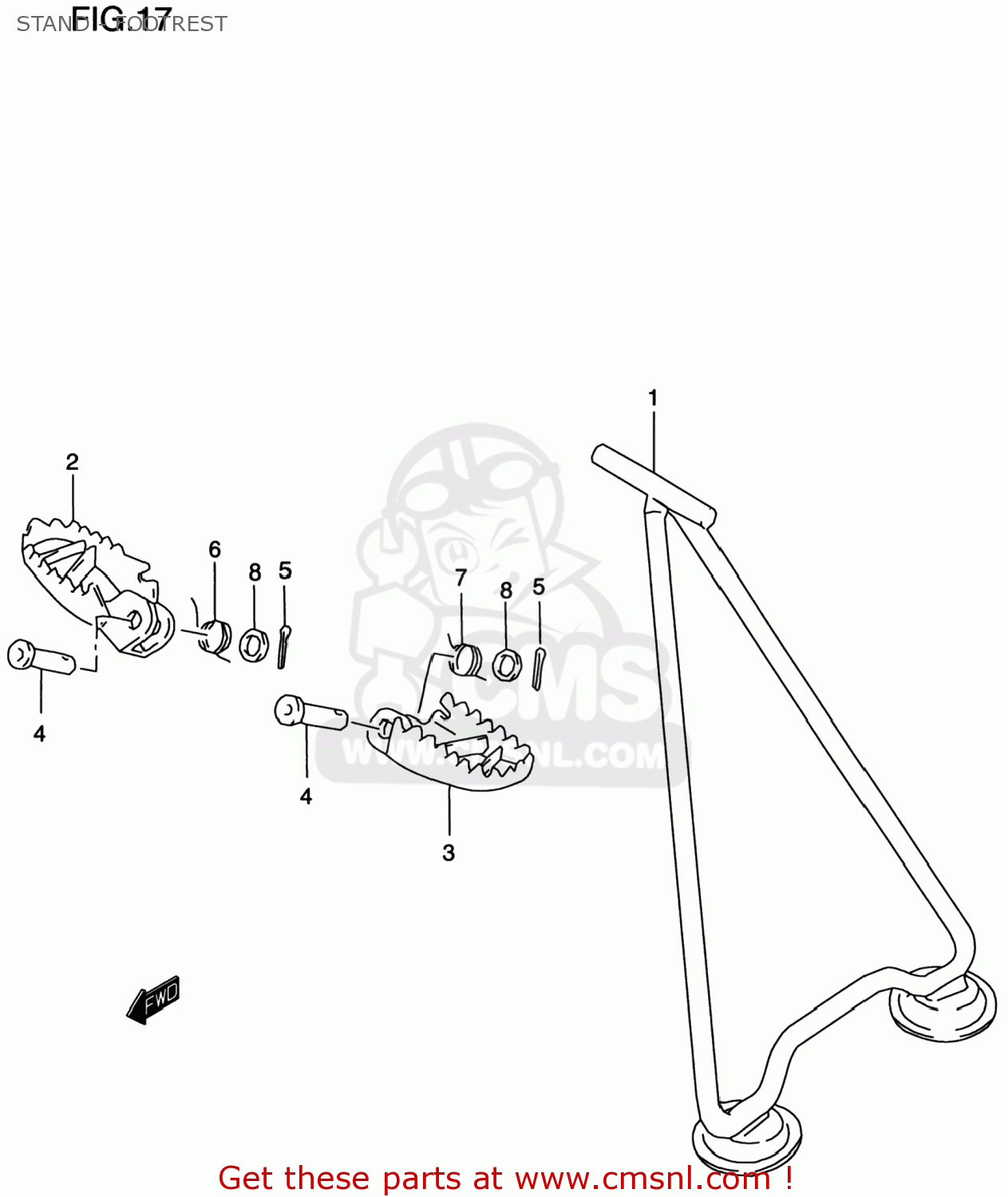

Stand - footrest diagram RM250 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231028E10
ref: 1-1
42310-28E11

STAND COMP

€ 99.50

1-2

4231028E11
ref: 1-2

STAND

€ 99.50

1-3

4231036E40
ref: 1-3

STAND

€ 122.00

2-1

4355136E00019
ref: 2-1
43551-36E01-019

FOOTREST,RIGHT

€ 54.00

2-2

4355136E40019
ref: 2-2

FOOTREST,R

€ 59.50

3-1

4356136E00019
ref: 3-1

FOOTREST,L

€ 66.00

3-2

4356136E40019
ref: 3-2

FOOTREST,L

€ 59.50

0920010019
ref: 4

PIN(10X41.5)

€ 6.00

0411125208
ref: 5
04111-2520A

PIN 25X20

€ 2.00

0944818030
ref: 6

SPRING

€ 5.00

0944818029
ref: 7

SPRING

€ 5.00

0832201103
ref: 8
08322-0110A

WASHER

€ 2.50
