RM250 1996 (T) USA (E03)

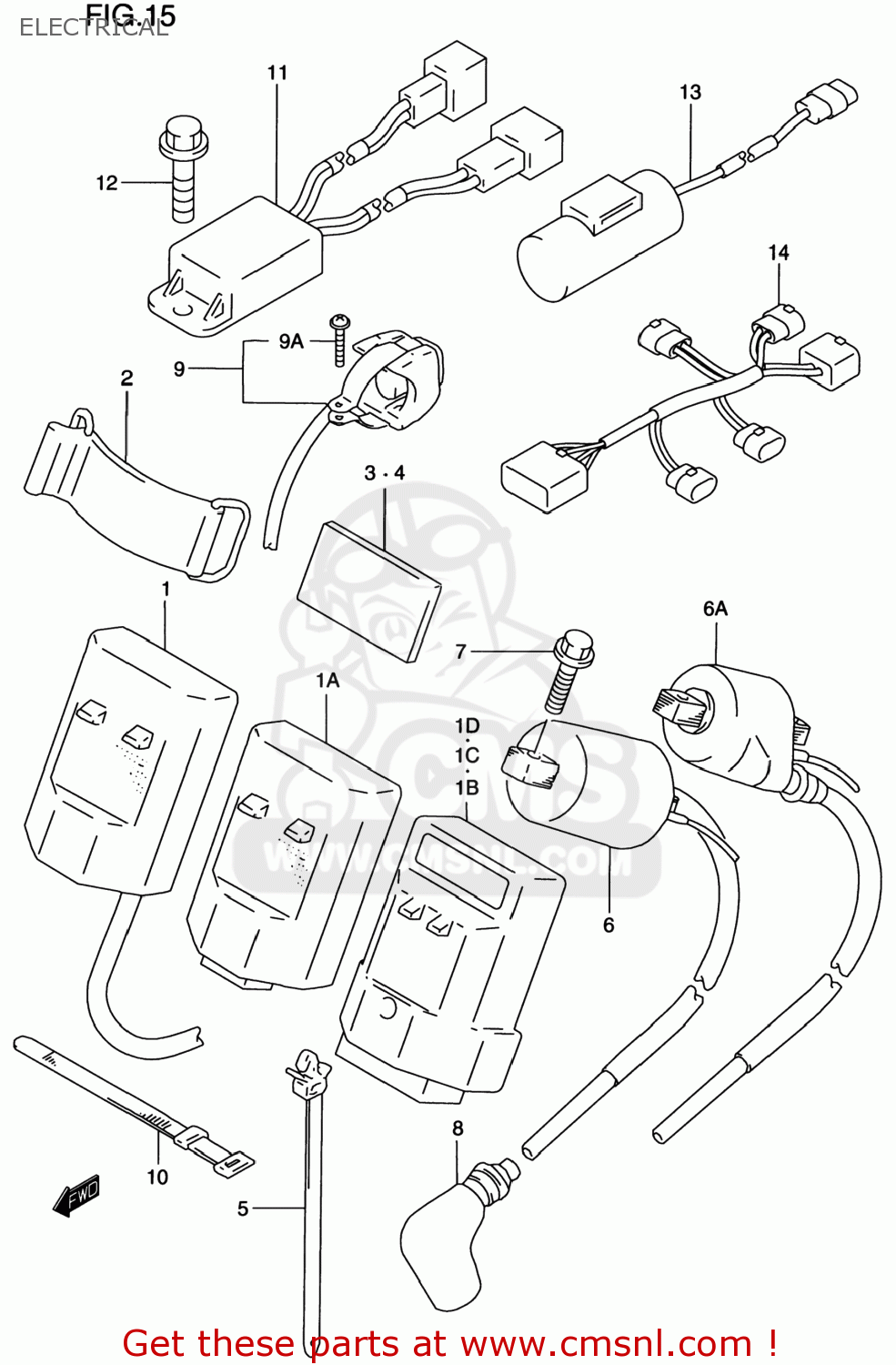

Electrical diagram RM250 1996 (T) USA (E03)
ELECTRICAL RM250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
3290037E20
ref: 1A
CDI UNIT
€ 477.00
1B
3290037E30
ref: 1B
CDI UNIT
€ 497.00
1C
3290037E50
ref: 1C
CDI UNIT
€ 0.00
1D
3290037E40
ref: 1D
CDI UNIT
€ 451.50
1-1
3290037E00
ref: 1-1
CDI UNIT
€ 618.50
1-2
3290037E10
ref: 1-2
CDI UNIT
€ 523.00
2-1
3294214301
ref: 2-1
BAND,CDI UNIT(L:80)
€ 10.00
2-2
3294214111
ref: 2-2
BAND(L:65)
€ 8.00
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
5-1
0940711402
ref: 5-1
CLAMP(L:90)
€ 2.50
5-2
0940725401
ref: 5-2
CLAMP(L:235)
€ 4.00
6
3341036E00
ref: 6
COIL ASSY,IGNITION
€ 119.00
6A
3341037E00
ref: 6A
33410-08G00
COIL ASSEMBLY,IGNITION
€ 65.00
7
0154706163
ref: 7
01547-0616B
BOLT
€ 2.50
8
3351020A01
ref: 8
33510-20A02
CAP,SPARK PLUG
€ 23.00
9
3782036E00
ref: 9
SWITCH ASSY,ENGINE STOP
€ 21.00
9A
0211233165
ref: 9A
SCREW
€ 1.50
10
0940712402
ref: 10
CLAMP(L:120)
€ 3.00
11
3280037E20
ref: 11
RECTIFIER ASSY
€ 194.00
12
0154706123
ref: 12
01547-0612B
BOLT
€ 2.00
13
3364037E20
ref: 13
CONDENSER ASSY
€ 112.50
14
3661037E40
ref: 14
HARNESS,WIRING
€ 82.50
