HANDLE LEVER
RM250 1996 (T) USA (E03)

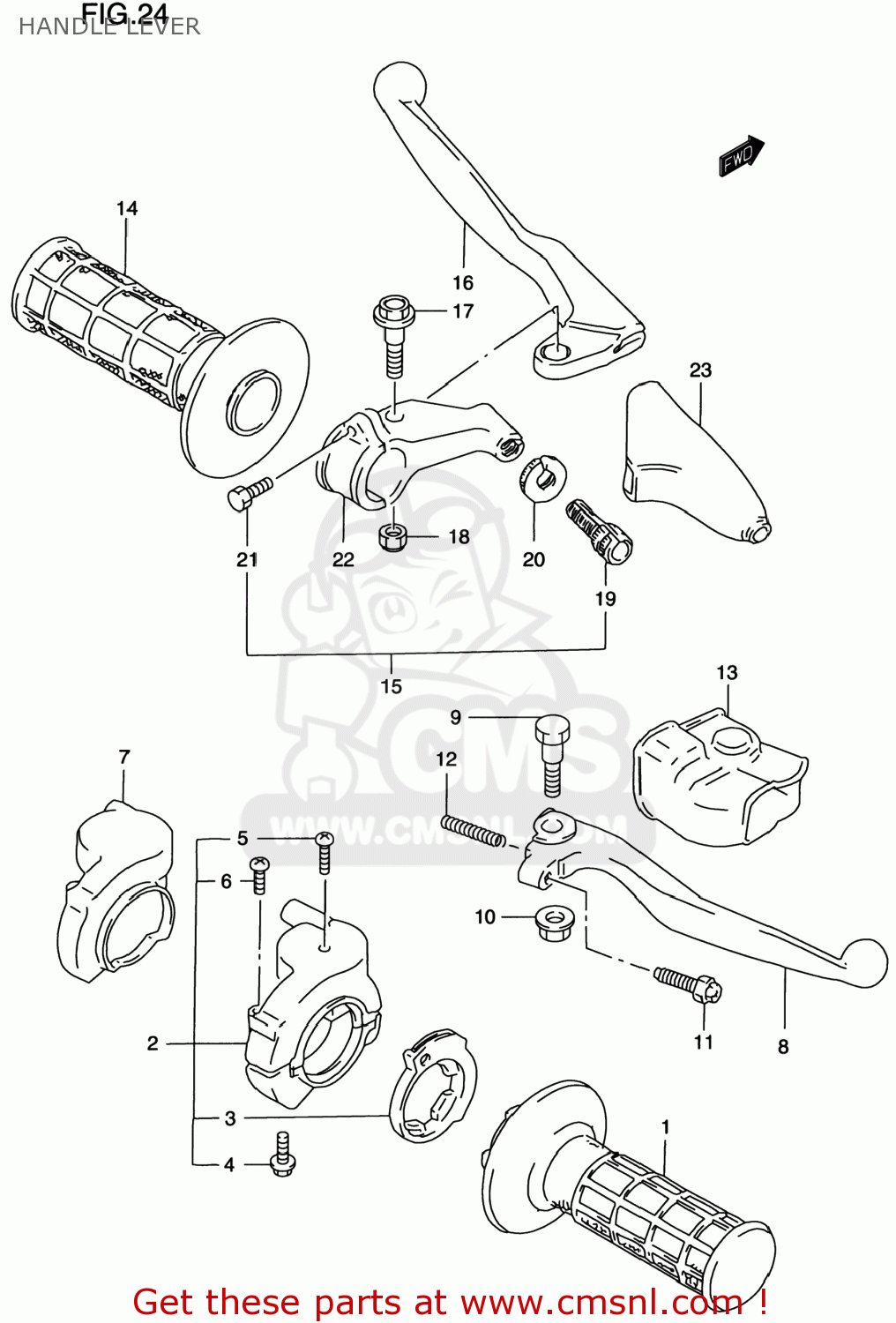

Handle lever diagram RM250 1996 (T) USA (E03)
HANDLE LEVER RM250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711028E00
ref: 1-1
GRIP,THROTTLE
€ 24.00
1-2
5711036E01
ref: 1-2
GRIP,THROTTLE
€ 22.00
2
5710028E01
ref: 2
CASE ASSY,THROTTLE
€ 83.00
3
5711428E00
ref: 3
ROTOR,THROTTLE
€ 7.50
4
0154706253
ref: 4
01547-0625B
SCREW
€ 2.50
5
0212204103
ref: 5
02122-0410A
SCREW,UPPER
€ 2.50
6
0212204163
ref: 6
02122-0416A
SCREW
€ 2.00
7
5712928E01
ref: 7
COVER,THROTTLE CASE
€ 27.00
8-1
5742136E00
ref: 8-1
LEVER,BRAKE
€ 30.00
8-2
5742136E10
ref: 8-2
LEVER,BRAKE
€ 38.50
9
5743114500
ref: 9
BOLT,BRAKE LEVER
€ 4.00
10-1
5744214500
ref: 10-1
08316-1006B
NUT,BRAKE LEVER
€ 2.50
10-2
0831610063
ref: 10-2
08316-1006B
NUT
€ 2.50
11
5743036E00
ref: 11
BOLT,ADJUSTER
€ 5.00
12
5731814502
ref: 12
SPRING,RETURN
€ 3.00
13
5734136E00
ref: 13
COVER,BRAKE LEVER
€ 14.50
14-1
5721127C00
ref: 14-1
GRIP,L
€ 11.00
14-2
5721136E01
ref: 14-2
GRIP,L
€ 11.50
15-1
5750028C20
ref: 15-1
57500-28C12
LEVER ASSEMBLY,CLUTCH
€ 43.00
15-2
5750028C40
ref: 15-2
57500-28C41
LEVER ASSEMBLY,CLUTCH
€ 43.00
16-1
5762128C20
ref: 16-1
LEVER,CLUTCH
€ 19.50
16-2
5762128C40
ref: 16-2
LEVER,CLUTCH
€ 37.50
17
5743128C01
ref: 17
BOLT,LEVER
€ 4.50
18
0831921068
ref: 18
08319-2106A
NUT 6MM
€ 2.00
19
5744128C10
ref: 19
ADJUSTER,WIRE
€ 9.50
20
5744228C00
ref: 20
NUT,LOCK
€ 11.50
21
0150005163
ref: 21
01500-0516B
BOLT
€ 1.50
22-1
5751228C20
ref: 22-1
BRACKET,LEVER HOLDER
€ 14.50
22-2
5751228C00
ref: 22-2
BRACKET,CLUTCH LEVER HOLDER
€ 13.00
23
5734140001
ref: 23
57341-40002
COVER,CLUTCH LEVER
€ 7.50
