FUEL TANK
RM250 1996 (T) USA (E03)

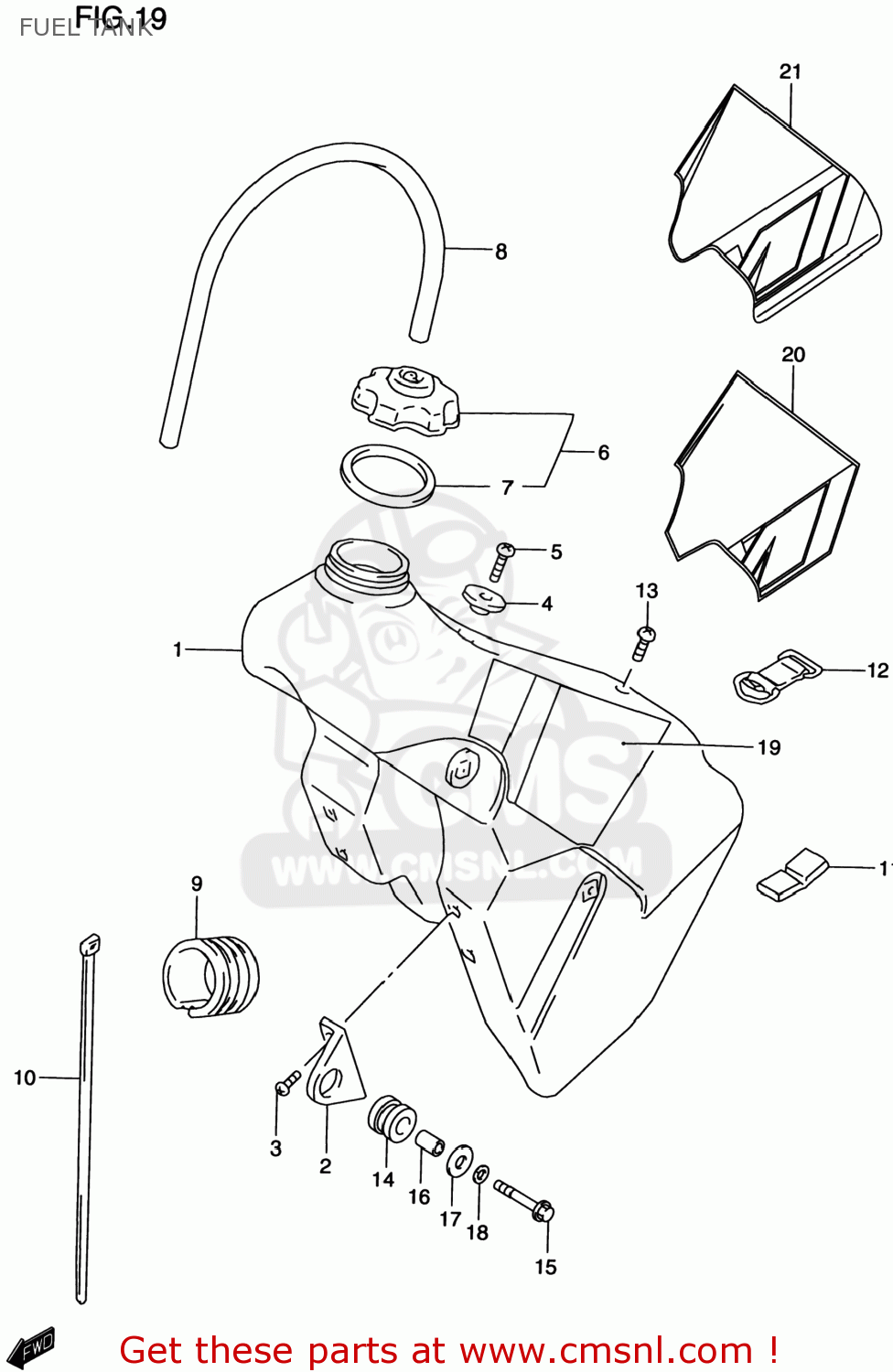

Fuel tank diagram RM250 1996 (T) USA (E03)
FUEL TANK RM250 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4411037E0025Y
ref: 1-1
44110-37E01-25Y
TANK COMP,FUEL
€ 313.50
1-2
4411037E0125Y
ref: 1-2
TANK,FUEL(YELLOW)
€ 313.50
2
4413127C01
ref: 2
BRACKET,FUEL TANK FR
€ 6.50
3
0211206123
ref: 3
02112-0612A
SCREW
€ 1.50
4
4413227C01
ref: 4
HOOK,SEAT FR
€ 39.00
5
0214206203
ref: 5
02142-0620A
SCREW
€ 2.00
6
4420027870
ref: 6
CAP SET,FUEL TANK
€ 19.50
7
4424827C00
ref: 7
GASKET,CAP (NAS)
€ 4.00
8
0935253103600
ref: 8
09354-53103-600
HOSE (5.3X10.5X600)
€ 19.50
9
4454126C00
ref: 9
CUSHION,FUEL TANK NO.1
€ 14.50
10-1
0940730402
ref: 10-1
CLAMP(L:300)
€ 3.50
10-2
0940714407
ref: 10-2
CLAMP(L:145)
€ 4.00
11
0932105006
ref: 11
CUSHION
€ 4.00
12
4456027C00
ref: 12
BAND,FUEL TANK RR
€ 8.50
13
0214206163
ref: 13
02142-0616A
SCREW
€ 2.50
14
1476201B01
ref: 14
CUSHION,MUFFLER
€ 3.00
15
0154706303
ref: 15
01547-0630B
BOLT,G/S SWITC
€ 3.00
16-1
0918006062
ref: 16-1
09180-06268
SPACER (6.4X9X13.5)
€ 2.00
16-2
0918006268
ref: 16-2
SPACER(6.5X9X13.5)
€ 2.00
17
0916006114
ref: 17
WASHER(6.5X24X1.2)
€ 2.00
18
0832101063
ref: 18
08321-0106A
LOCK WASHER
€ 2.00
19
6811037E20J5C
ref: 19
TAPE SET,FUEL TANK
€ 80.00
20
6811037E30M2V
ref: 20
TAPE SET,FUEL TANK
€ 77.50
21
6811037E40N8H
ref: 21
TAPE SET,FUEL TANK
€ 98.50
