CLUTCH (MODEL K6)
RM250 2003 (K3) USA (E03)

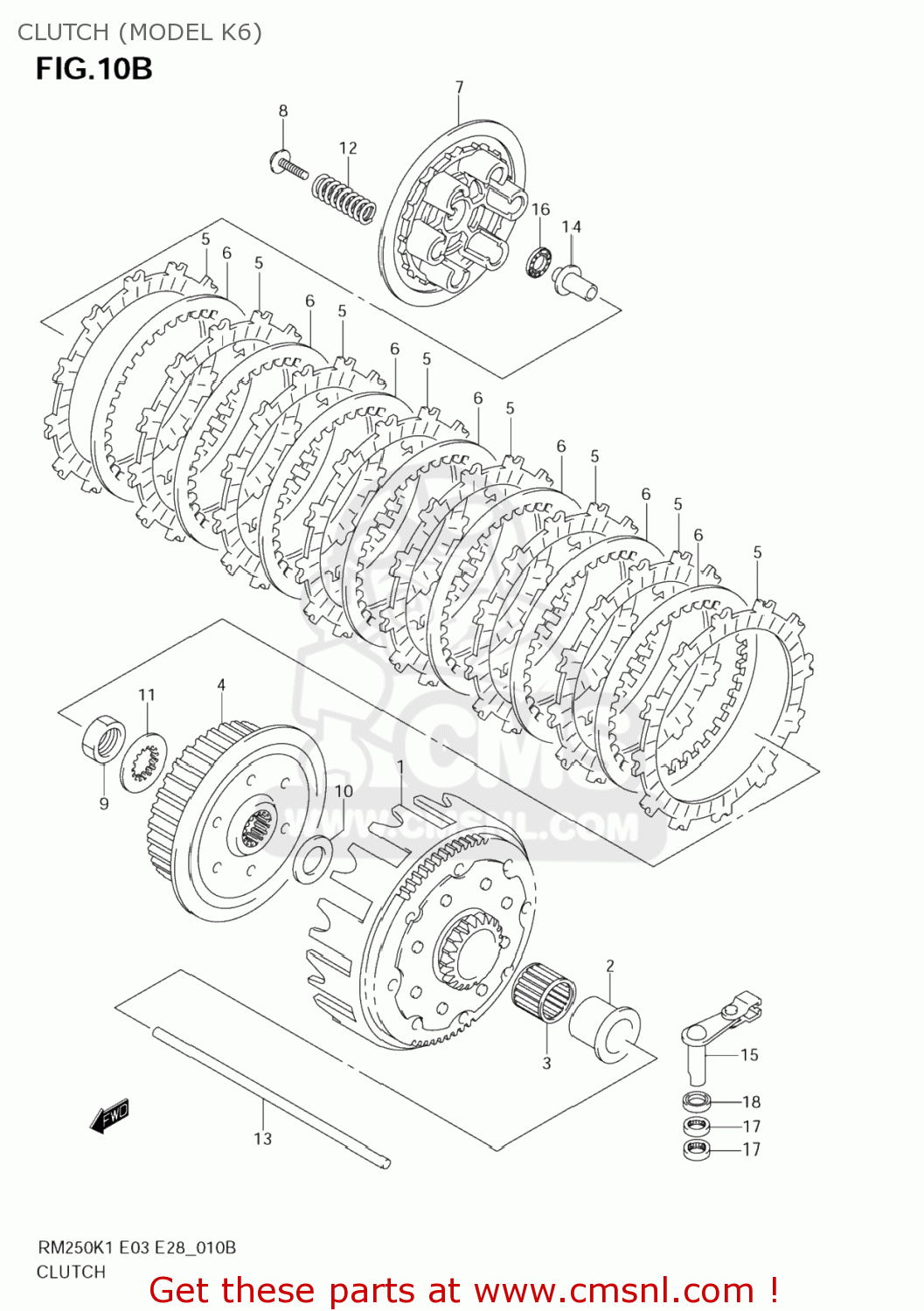

Clutch (model k6) diagram RM250 2003 (K3) USA (E03)
CLUTCH (MODEL K6) RM250 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120037F10
ref: 1
GEAR ASSY,PRI DRIVEN
€ 349.50
2
2125137E01
ref: 2
SPACER,PRIMARY DRIVEN GEAR
€ 37.00
3
0926329009
ref: 3
BEARING(29X34X27)
€ 25.00
4
2141037F50
ref: 4
HUB,CLUTCH SLEEVE
€ 77.50
5
2144137F50
ref: 5
PLATE,CLUTCH DRIVE (NAS)
€ 16.00
6
2145137F00
ref: 6
PLATE,CLUTCH DRIVEN (NAS)
€ 7.00
7
2146237F20
ref: 7
DISC,CLUTCH PRESSURE
€ 53.00
8
0911605019
ref: 8
BOLT(5X25)
€ 3.00
9
0914018013
ref: 9
NUT
€ 9.00
10
0916022082
ref: 10
WASHER(22.5X39X3)
€ 6.50
11
0916722027
ref: 11
WASHER,LOCK
€ 3.00
12
0944018038
ref: 12
SPRING
€ 6.00
13
2311037F00
ref: 13
ROD,CLUTCH PUSH
€ 12.00
14
2312137F00
ref: 14
PIECE,CLUTCH PUSH
€ 13.00
15
2320037E02
ref: 15
CAMSHAFT,CLUTCH RELEASE
€ 51.00
16
0926310002
ref: 16
BEARING(10X22X2.8)
€ 8.50
17
0926312024
ref: 17
BEARING(12X16X10)
€ 11.00
18
0928512004
ref: 18
SEAL,OIL(12X19X5)
€ 9.00
