FRONT MASTER CYLINDER (MODEL K4/K5/K6)

RM250 2003 (K3) USA (E03)

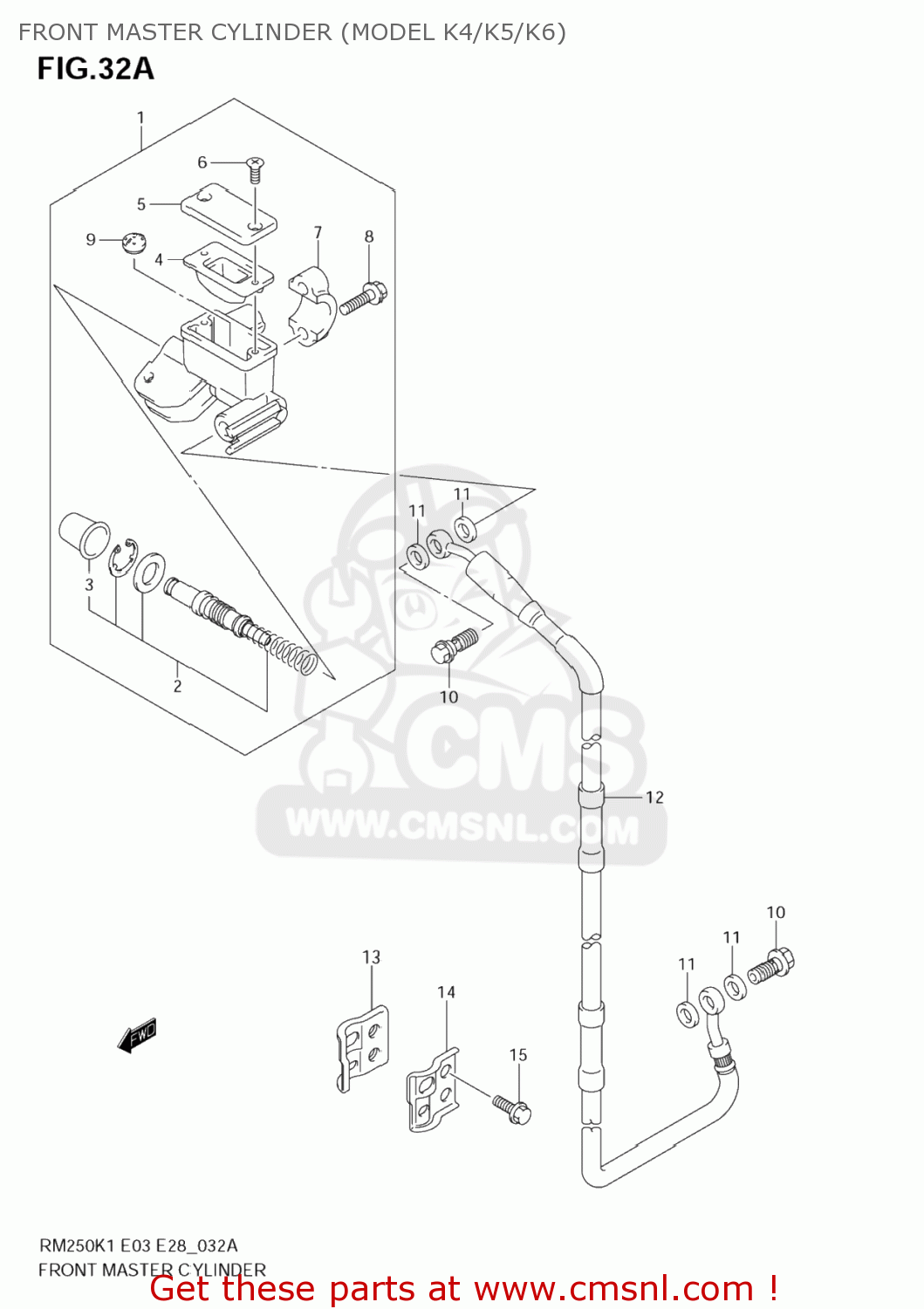

Front master cylinder (model k4/k5/k6) diagram RM250 2003 (K3) USA (E03)

FRONT MASTER CYLINDER (MODEL K4/K5/K6) RM250 2003 (K3) USA (E03)

FRONT MASTER CYLINDER (MODEL K4/K5/K6) RM250 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960037F00
ref: 1

CYLINDER ASSY,FR MASTER

€ 166.00

2

5960037810
ref: 2

PISTON & CUP SET

€ 35.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966714500
ref: 4

DIAPHRAGM

€ 6.50

5

5966927C01
ref: 5

CAP

€ 10.00

6

6968949300
ref: 6

SCREW

€ 1.50

7

5967127C00
ref: 7

HOLDER

€ 9.50

8

5967506F00
ref: 8

BOLT

€ 2.50

9

5974836E00
ref: 9

SEPARATOR

€ 5.00

10-1

0936010042
ref: 10-1
09360-10062

BOLT UNION

€ 5.00

10-2

0936010053
ref: 10-2

BOLT UNION

€ 4.50

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12-1

5948037F00
ref: 12-1
59480-37F11

HOSE,FRONT BRA

€ 224.00

12-2

5948037F10
ref: 12-2
59480-37F11

HOSE COMP,FRON

€ 224.00

13

5926036E00
ref: 13

CLAMP,FR BRAKE HOSE INNER

€ 6.00

14

5927136E00
ref: 14

CLAMP,FR BRAKE HOSE OUTER

€ 6.50

15

0910306234
ref: 15

BOLT(6X16)

€ 2.50
