FRAME COVER (MODEL K3/K4/K5/K6)

RM250 2003 (K3) USA (E03)

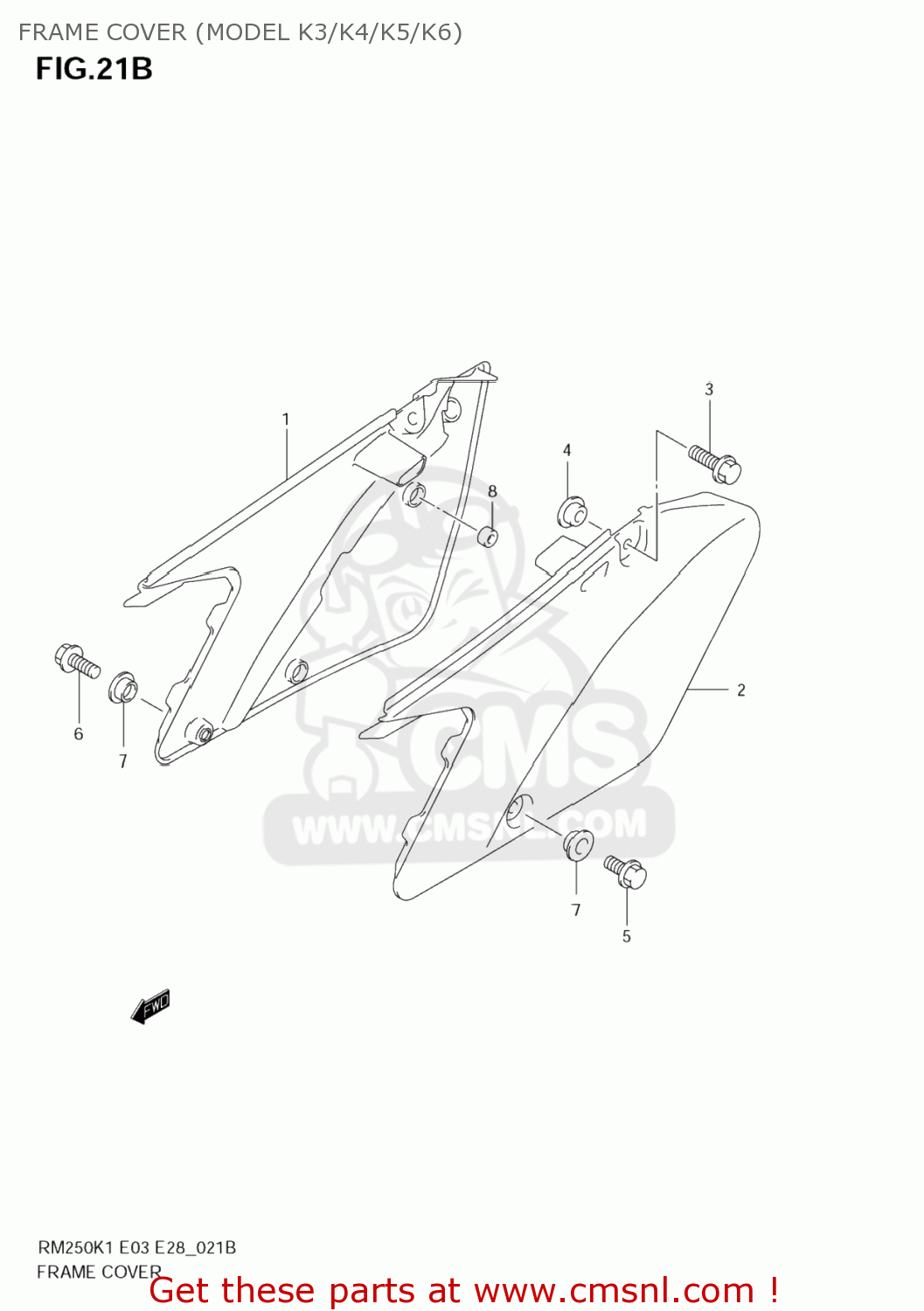

Frame cover (model k3/k4/k5/k6) diagram RM250 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711136F1030H
ref: 1-1
47111-36F20-30H

COVER,FRAME R

€ 57.50

1-2

4711136F2030H
ref: 1-2

COVER,FRAME,R(WHITE)

€ 57.50

1-3

4711137F5030H
ref: 1-3

COVER,FRAME,R(WHITE)

€ 46.00

1-4

4711136F2030H
ref: 1-4

COVER,FRAME,R(WHITE)

€ 57.50

2-1

4721136F1030H
ref: 2-1
47211-36F20-30H

COVER,FRAME,L

€ 57.50

2-2

4721136F2030H
ref: 2-2

COVER,FRAME,L(WHITE)

€ 57.50

0911606188
ref: 3
09116-06182

BOLT

€ 3.00

5311237F00
ref: 4
53112-37F01

WASHER,FRAME C

€ 9.00

0910306233
ref: 5

BOLT(6X12)

€ 2.00

0910306234
ref: 6

BOLT(6X16)

€ 2.50

7-1

0916906054
ref: 7-1
09169-06053

WASHER

€ 2.00

7-2

6923237F00
ref: 7-2
69232-37F01

WASHER,RR BRAK

€ 7.50

4716137F00
ref: 8

CUSHION,FRAME COVER,R

€ 6.00
