REAR CALIPER (MODEL K1/K2/K3)
RM250 2003 (K3) USA (E03)

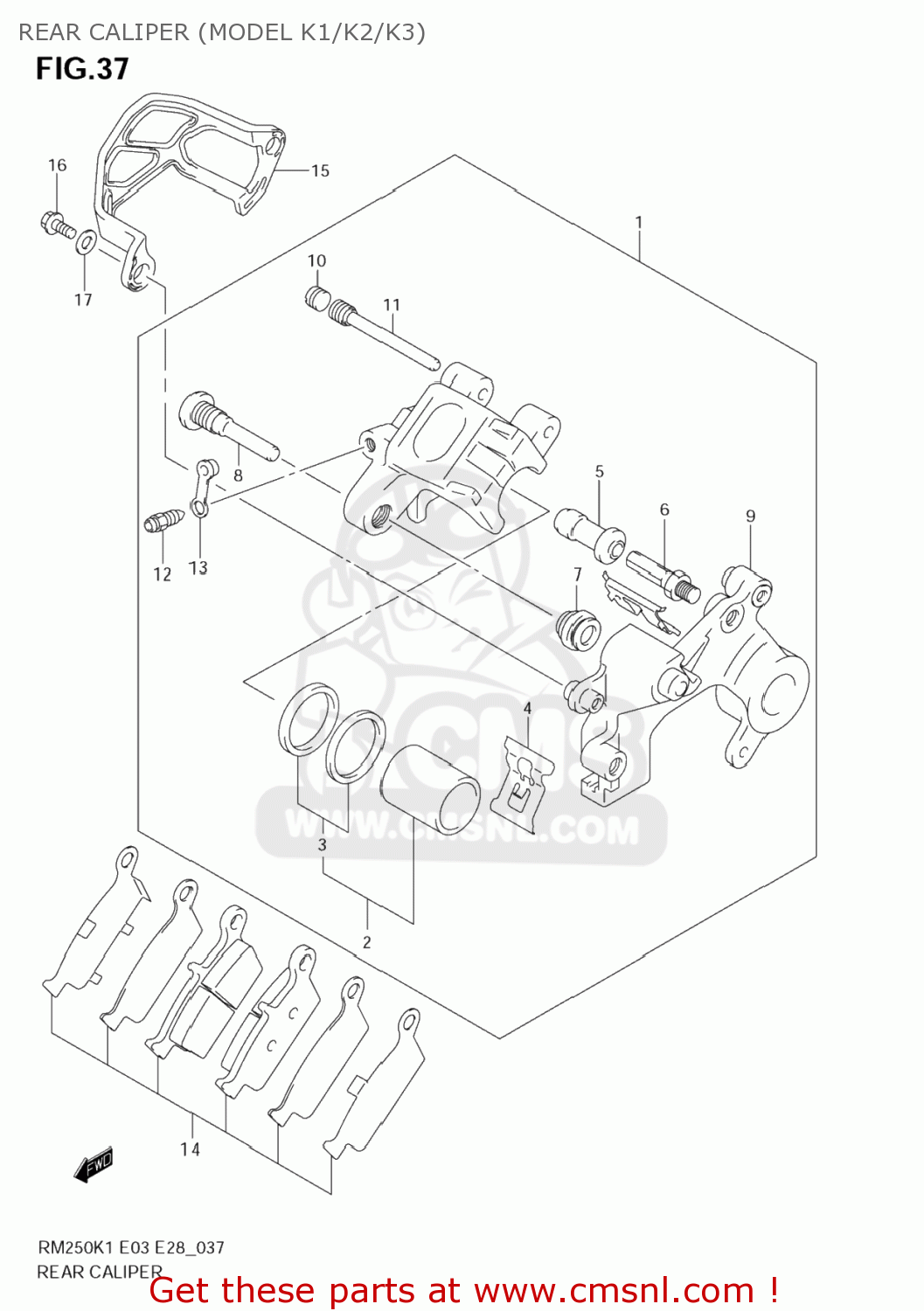

Rear caliper (model k1/k2/k3) diagram RM250 2003 (K3) USA (E03)
REAR CALIPER (MODEL K1/K2/K3) RM250 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6910037F20999
ref: 1
CALIPER ASSY,RR
€ 387.50
2
6910043810
ref: 2
PISTON SET
€ 31.50
3
6910036810
ref: 3
SEAL SET,PISTON
€ 13.00
4
5931536E00
ref: 4
SPRING,PAD
€ 6.50
5
5938613A00
ref: 5
BOOT
€ 6.50
6
5938227C30
ref: 6
BOLT
€ 7.50
7
5930314500
ref: 7
BOOT
€ 5.50
8
5930536E00
ref: 8
PIN,BOLT
€ 12.50
9
6935037F00
ref: 9
BRACKET
€ 119.50
10
5914621E10
ref: 10
PLUG,PIN
€ 6.50
11
6934543D00
ref: 11
PIN,HANGER
€ 7.50
12
5912101A00
ref: 12
BLEEDER
€ 8.50
13
5912201A00
ref: 13
CAP,BLEEDER
€ 4.50
14-1
6910036860
ref: 14-1
PAD & RETAINER SET
€ 45.50
14-2
6910037810
ref: 14-2
PAD & RETAINER SET
€ 45.50
15
6972529F00
ref: 15
69700-29821
GUARD,RR CALIPER
€ 11.00
16
0154706123
ref: 16
01547-0612B
BOLT
€ 2.00
17
0832201063
ref: 17
08322-0106B
WASHER
€ 2.00
