TRANSMISSION (MODEL K4/K5/K6)
RM250 2003 (K3) USA (E03)

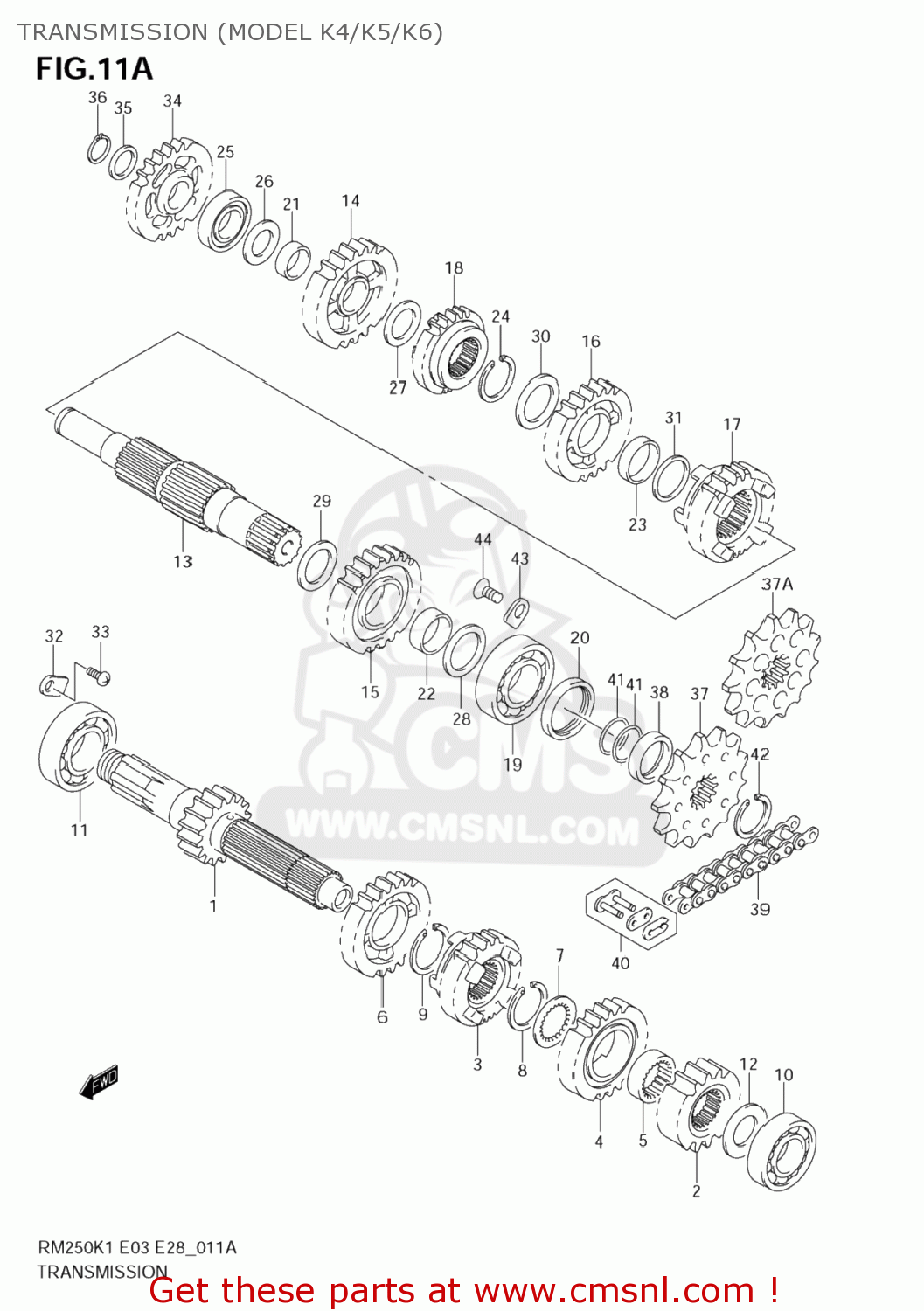

Transmission (model k4/k5/k6) diagram RM250 2003 (K3) USA (E03)
TRANSMISSION (MODEL K4/K5/K6) RM250 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412037F00
ref: 1-1
SHAFT,COUNTER(NT:15)
€ 124.00
1-2
2412037F40
ref: 1-2
SHAFT,COUNTER(NT:15)
€ 136.00
1-3
2412037F50
ref: 1-3
SHAFT,COUNTER(NT:15)
€ 199.00
2
2422137F00
ref: 2
GEAR,2ND DRIVE(NT:17)
€ 86.00
3-1
2423137F10
ref: 3-1
24231-37F11
GEAR,3RD DRIVE
€ 105.50
3-2
2423137F11
ref: 3-2
GEAR,3RD DRIVE(NT:19)
€ 105.50
4
2424137E01
ref: 4
GEAR,4TH DRIVE(NT:21)
€ 85.50
5
2424237F00
ref: 5
BUSH,4TH DRIVE GEAR
€ 18.50
6
2425137E00
ref: 6
GEAR,5TH DRIVE(NT:23)
€ 86.50
7
0916725026
ref: 7
WASHER,LOCK
€ 3.00
8
0938025010
ref: 8
CIRCLIP
€ 3.00
9
0938025010
ref: 9
CIRCLIP
€ 3.00
10
0814362037
ref: 10
BEARING
€ 18.50
11
0814362057
ref: 11
BEARING
€ 24.50
12
0918117223
ref: 12
SHIM(17X30X1)
€ 3.00
13
2413137F20
ref: 13
SHAFT,DRIVE
€ 151.00
14
2431137E00
ref: 14
GEAR,1ST DRIVEN(NT:27)
€ 95.00
15
2432137E02
ref: 15
GEAR,2ND DRIVEN(NT:25)
€ 90.50
16
2433137F02
ref: 16
GEAR,3RD DRIVEN(NT:23)
€ 90.50
17
2434137F20
ref: 17
GEAR,4TH DRIVEN(NT:21)
€ 105.50
18
2435137F20
ref: 18
GEAR,5TH DRIVEN(NT:20)
€ 93.00
19
0926222030
ref: 19
BEARING(22X56X15)
€ 81.00
20
0928928012
ref: 20
SEAL,OIL(28X38X7.5)
€ 8.00
21
0930020037
ref: 21
BUSH(20X24X10)
€ 12.50
22
0930025031
ref: 22
BUSH(25X28X10)
€ 16.00
23
0930025031
ref: 23
BUSH(25X28X10)
€ 16.00
24
0938025010
ref: 24
CIRCLIP
€ 3.00
25
0926217023
ref: 25
BEARING(17X40X12)
€ 14.00
26
0918117223
ref: 26
SHIM(17X30X1)
€ 3.00
27
0918120195
ref: 27
SHIM(20X30X1)
€ 3.00
28
0918122240
ref: 28
SHIM(22X34X1.5)
€ 4.50
29
0918125167
ref: 29
SHIM(25X34X1)
€ 3.50
30
0918125167
ref: 30
SHIM(25X34X1)
€ 3.50
31
0822125305
ref: 31
SHIM
€ 2.00
32
2474121A00
ref: 32
RETAINER
€ 2.00
33
0211206123
ref: 33
02112-0612A
SCREW
€ 1.50
34
2626037E01
ref: 34
GEAR,KICK STARTER IDLE(NT:27)
€ 70.50
35
0918117130
ref: 35
SHIM(17X24X0.5)
€ 3.00
36
0833131176
ref: 36
08331-3117A
CIRCLIP,17MM
€ 2.00
37
2751115D00
ref: 37
27511-37F00
SPROCKET,ENGINE (NT:13)
€ 23.50
37A
2751137F00
ref: 37A
SPROCKET,ENGINE(NT:13)
€ 23.50
38
2753128C00
ref: 38
SPACER,ENGINE SPROCKET
€ 10.50
39
2760043D01114
ref: 39
27600-43D02-114
CHAIN ASSY,DRI
€ 72.50
40
2762043D00
ref: 40
JOINT SET,CHAIN
€ 5.00
41
0928020006
ref: 41
O RING(D:1.9,ID:19.8)
€ 2.50
42
0938022006
ref: 42
CIRCLIP
€ 3.00
43
2474120A00
ref: 43
RETAINER,COUNTER BEARING,R
€ 2.00
44
0212206123
ref: 44
02122-0612A
SCREW
€ 3.00
