FRONT FORK (MODEL X)
RM465 1981 (X) USA (E03)

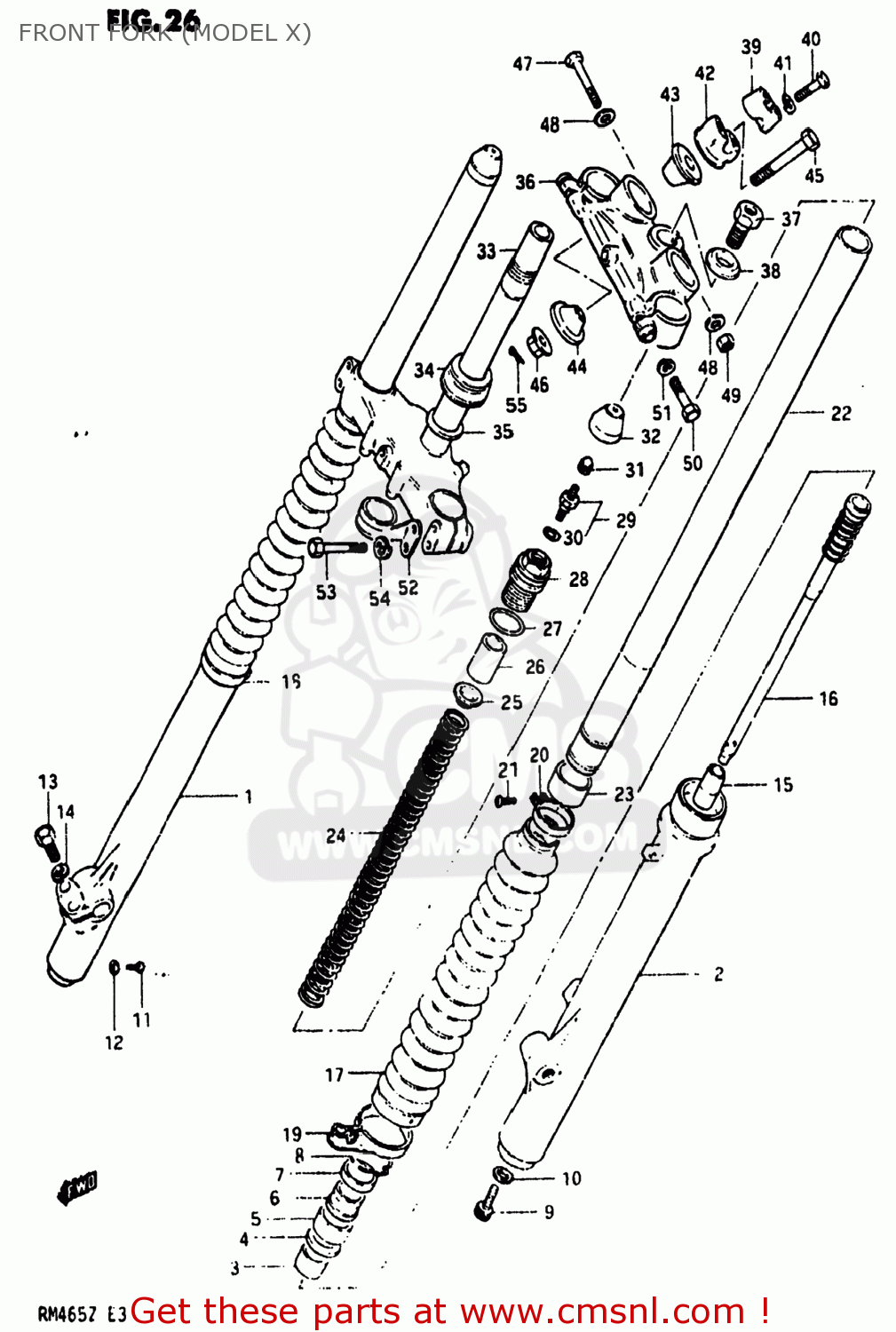

Front fork (model x) diagram RM465 1981 (X) USA (E03)
FRONT FORK (MODEL X) RM465 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
511001420008C
ref: 0
DAMPER SET
€ 860.50
1
5113114200
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114114200
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714200
ref: 3
51167-40C00
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115314200
ref: 5
51153-14330
OIL SEAL,FRONT FORK
€ 11.00
6
5117314200
ref: 6
SEAL,DUST
€ 11.50
7
5114914200
ref: 7
CASE,DUST SEAL
€ 0.00
8
5115614200
ref: 8
RING,STOPPER
€ 4.50
9
5114714200
ref: 9
BOLT(14X25)
€ 5.50
10
5114814200
ref: 10
GASKET (NAS)
€ 2.00
11
0211204088
ref: 11
02112-04087
SCREW
€ 1.50
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0110708308
ref: 13
01500-08307
BOLT (8X30)
€ 2.50
14
0832131088
ref: 14
08321-01087
WASHER,LOCK,8.
€ 2.00
15
5119514200
ref: 15
PIECE,OIL LOCK
€ 0.00
16
5114614200
ref: 16
CYLINDER,FRONT FORK
€ 0.00
17
5157114200
ref: 17
BOOT,FRONT FORK COVER
€ 44.00
18
5157314200
ref: 18
BAND,FRONT FORK COVER
€ 0.00
19
5157214200
ref: 19
BAND,FRONT FORK COVER
€ 12.00
20
5157514200
ref: 20
BAND,FRONT FORK BOOT
€ 5.50
21
0211204108
ref: 21
02112-04107
SCREW 4X10
€ 2.00
22
5111014200
ref: 22
TUBE,FORK,INNER
€ 196.00
23
5112114200
ref: 23
PISTON
€ 14.00
24
5117114200
ref: 24
SPRING,FRONT FORK
€ 0.00
25
5117214200
ref: 25
GUIDE,SPRING
€ 5.00
26
5117614200
ref: 26
SPACER,FRONT FORK SPRING
€ 4.50
27
5111714200
ref: 27
O RING
€ 2.00
28
5135114200
ref: 28
CAP,FORK INNER TUBE
€ 29.00
29
5129314200
ref: 29
51169-14200
VALVE,FRONT FORK AIR
€ 15.50
30
5111714210
ref: 30
09280-06005
O-RING
€ 2.50
31
5129440400
ref: 31
CAP,VALVE AIR
€ 4.00
32
5118941220
ref: 32
CAP
€ 6.00
33
514101420008C
ref: 33
51410-14260-08C
STEM,STEERING
€ 0.00
34
0926530005
ref: 34
09265-30009
BEARING
€ 49.50
35
0821130402
ref: 35
09181-30184
WASHER,THRUST
€ 4.00
36
513111420008C
ref: 36
HEAD,STEERING STEM
€ 0.00
37
5135141320
ref: 37
BOLT
€ 8.50
38
5135641310
ref: 38
WASHER
€ 6.00
39
562114030008C
ref: 39
HOLDER,HANDLEBAR
€ 7.00
40
0110708358
ref: 40
01500-0835B
BOLT
€ 3.50
41
0832131088
ref: 41
08321-01087
WASHER,LOCK,8.
€ 2.00
42
562211420008C
ref: 42
HOLDER,HANDLEBAR
€ 105.50
43
5624114200
ref: 43
DAMPER,UPR
€ 32.00
44
5624214200
ref: 44
DAMPER,LWR
€ 21.50
45
5132114200
ref: 45
56321-28C00
BOLT,HANDLE HOLDER
€ 6.50
46
0831931108
ref: 46
NUT
€ 3.00
47
0110708508
ref: 47
01500-08507
BOLT 8X50
€ 3.00
48
0832221088
ref: 48
08322-01087
WASHER
€ 2.00
49
0831012088
ref: 49
08310-00087
NUT
€ 2.00
50
0110710458
ref: 50
01500-1045A
BOLT
€ 2.00
51
0832131088
ref: 51
08321-01087
WASHER,LOCK,8.
€ 2.00
52
5862014201
ref: 52
58620-40401
GUIDE,CABLE
€ 6.50
53
0110708408
ref: 53
01500-0840A
BOLT 8X40
€ 3.00
54
0832131088
ref: 54
08321-01087
WASHER,LOCK,8.
€ 2.00
55
0411120208
ref: 55
04111-2020A
PIN 20X20
€ 1.50
