GEAR SHIFTING (MODEL Z)
RM465 1981 (X) USA (E03)

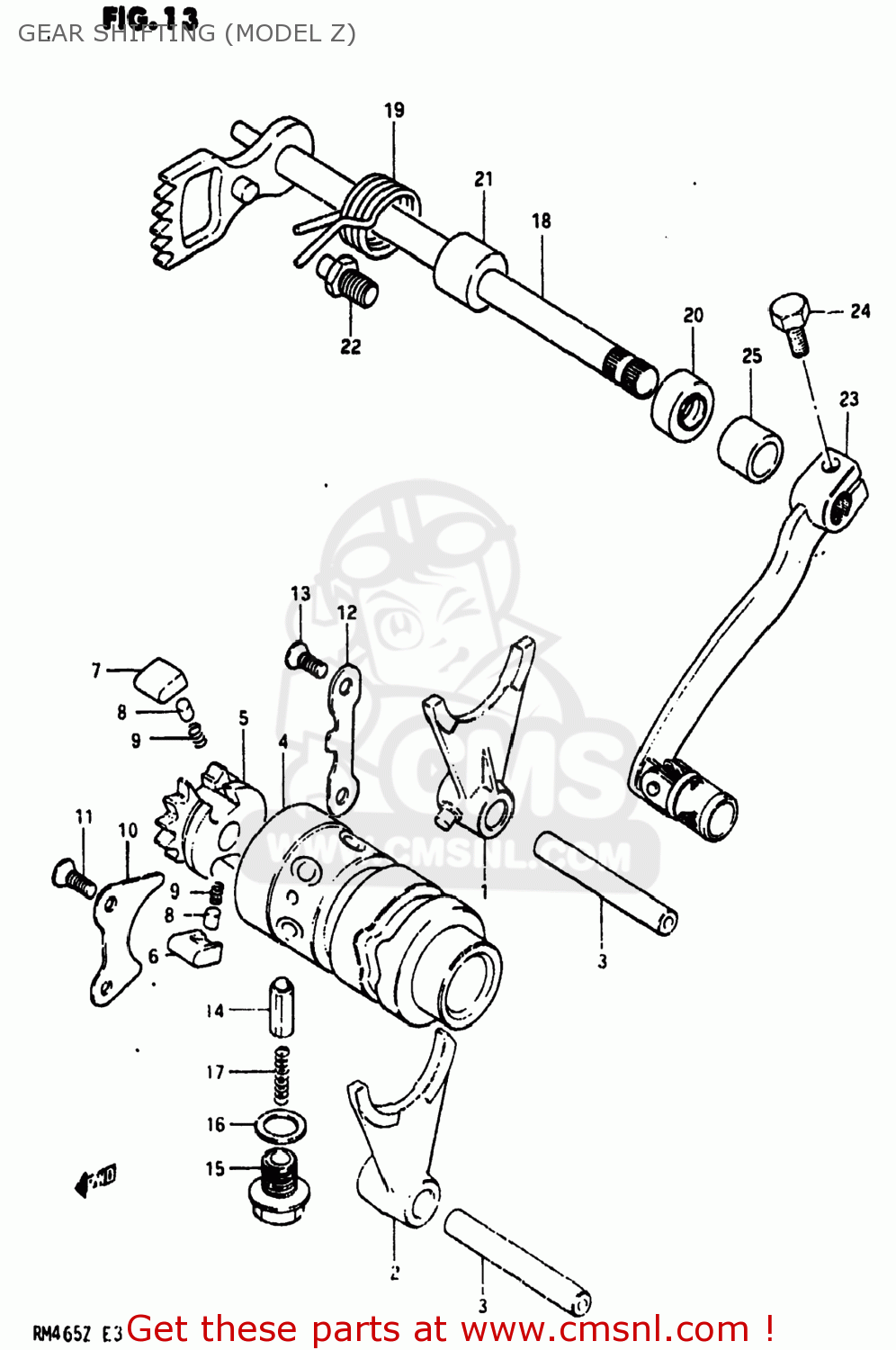

Gear shifting (model z) diagram RM465 1981 (X) USA (E03)
GEAR SHIFTING (MODEL Z) RM465 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521114220
ref: 1
FORK,GEAR SHIFT NO.1
€ 49.00
2
2522114220
ref: 2
FORK,GEAR SHIFT NO.2
€ 50.50
3
2542140400
ref: 3
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
4
2531014220
ref: 4
CAM,GEAR SHIFT
€ 118.00
5
2532211000
ref: 5
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533140400
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 3.50
11
0212206128
ref: 11
02122-06127
SCREW
€ 3.00
12
2534140400
ref: 12
25341-40001
GUIDE,GEAR SHIFT CAM
€ 6.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2535118000
ref: 14
25351-39300
STOPPER,GEAR SHIFTING
€ 5.00
15
2535211000
ref: 15
25352-11010
BOLT,GEAR SHAFT CAM STOPPER
€ 4.50
16
0916814004
ref: 16
GASKET(14X19.2X2) (NAS)
€ 2.50
17
0944006020
ref: 17
SPRING
€ 14.00
18
2551014220
ref: 18
25510-142V0
SHAFT,GEAR SHIFT
€ 55.50
19
0944426013
ref: 19
SPRING
€ 3.50
20
0928512002
ref: 20
09285-12006
OIL SEAL
€ 7.00
21
0918012068
ref: 21
SPACER(12X20X15.3)
€ 3.00
22
2567101000
ref: 22
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
23
2560014300
ref: 23
LEVER ASSEMBLY,GEAR SHIFTING
€ 215.00
24
0910006091
ref: 24
01500-06207
BOLT
€ 2.00
25
0918012068
ref: 25
SPACER(12X20X15.3)
€ 3.00
