REAR SWINGING ARM
RM465 1981 (X) USA (E03)

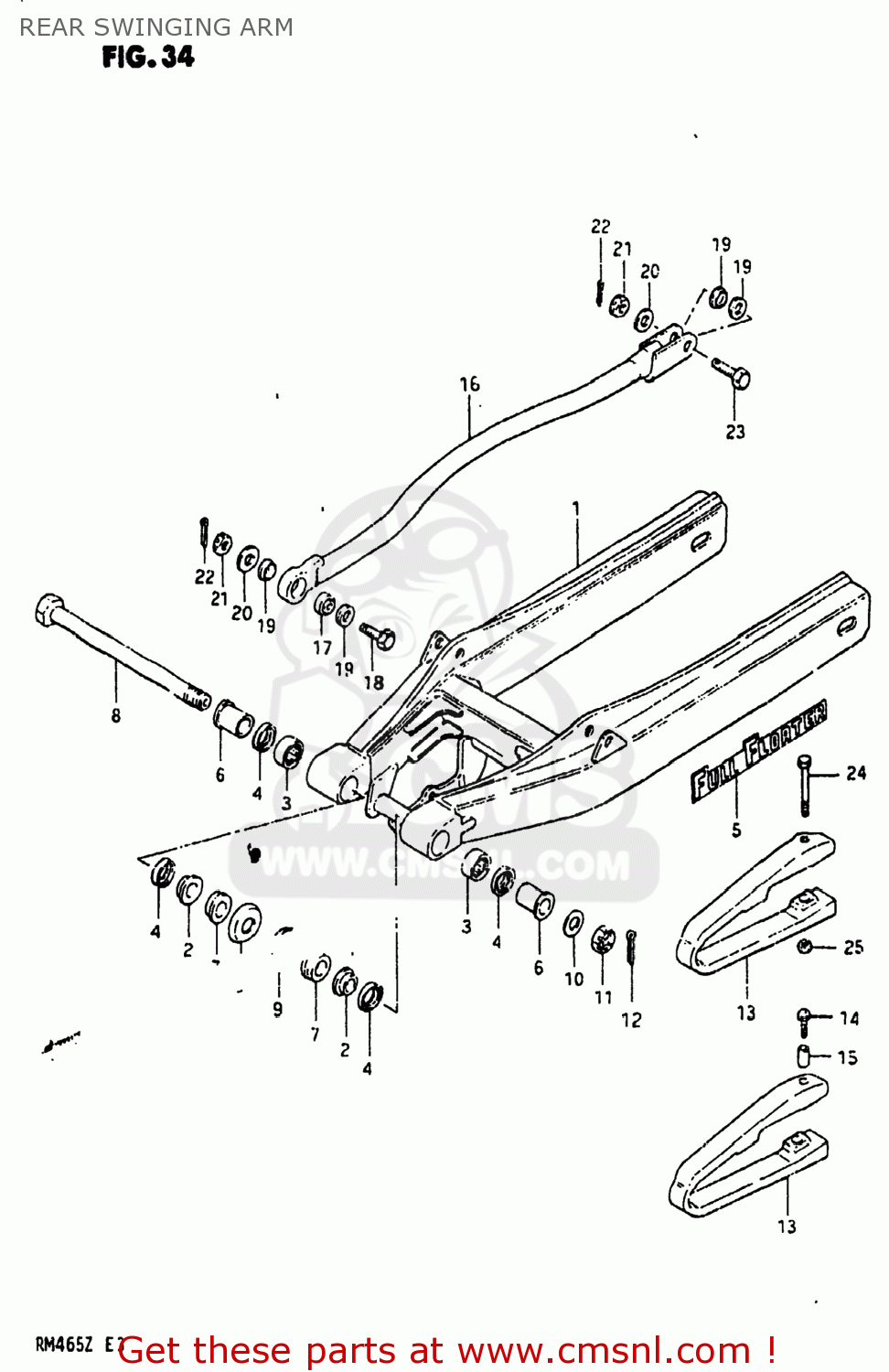

Rear swinging arm diagram RM465 1981 (X) USA (E03)
REAR SWINGING ARM RM465 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6110014832
ref: 1-1
SWING ARM ASSEMBLY,REAR
€ 0.00
1-2
6100014310
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 0.00
2
6126114110
ref: 2
BUSH,RR SWINGINGARM PIVOT
€ 10.00
3
0926320041
ref: 3
BEARING(20X27X20)
€ 15.00
4
0928520005
ref: 4
09283-20031
OIL SEAL
€ 5.00
5
6838114100
ref: 5
68381-14100-64D
EMBLEM,SWING ARM
€ 3.50
6
6125114100
ref: 6
SPACER,RR SWGARM PIVOT
€ 16.00
7
6125214100
ref: 7
SPACER,RR SWGARM PIVOT INNER
€ 12.50
8
6121114102
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 47.50
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
€ 4.00
10
0832211148
ref: 10
08322-01147
WASHER
€ 2.00
11
0831441148
ref: 11
08314-4014B
NUT 14MM
€ 3.00
12
0411130308
ref: 12
04111-3030A
COTTER PIN
€ 1.50
13-1
6127314202
ref: 13-1
61273-14X50
BUFFER,CHAIN TOUCH DEFLECTOR
€ 37.50
13-2
6127314210
ref: 13-2
61273-14211
BUFFER,CHAIN TOUCH DEFLECTOR
€ 25.00
14
6127540200
ref: 14
SCREW,CHAIN TOUCH DEFEND
€ 1.50
15
0918005015
ref: 15
09180-05046
SPACER (5.5X8X4)
€ 3.00
16
6430014812
ref: 16
64300-14813
LINK,REAR TORQUE
€ 133.50
17
6435240410
ref: 17
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
18
0910108003
ref: 18
BOLT 8X28
€ 2.00
19
6433940410
ref: 19
6433940410
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
21
0831441088
ref: 21
08314-4008B
NUT 8MM
€ 2.50
22
0411120208
ref: 22
04111-2020A
PIN 20X20
€ 1.50
23
0910108014
ref: 23
BOLT 8X29.5
€ 1.50
24
0110706708
ref: 24
09100-06062
BOLT
€ 3.50
25
0831931068
ref: 25
08319-31067
NUT
€ 2.50
