GEAR SHIFTING (MODEL X)
RM465 1981 (X) USA (E03)

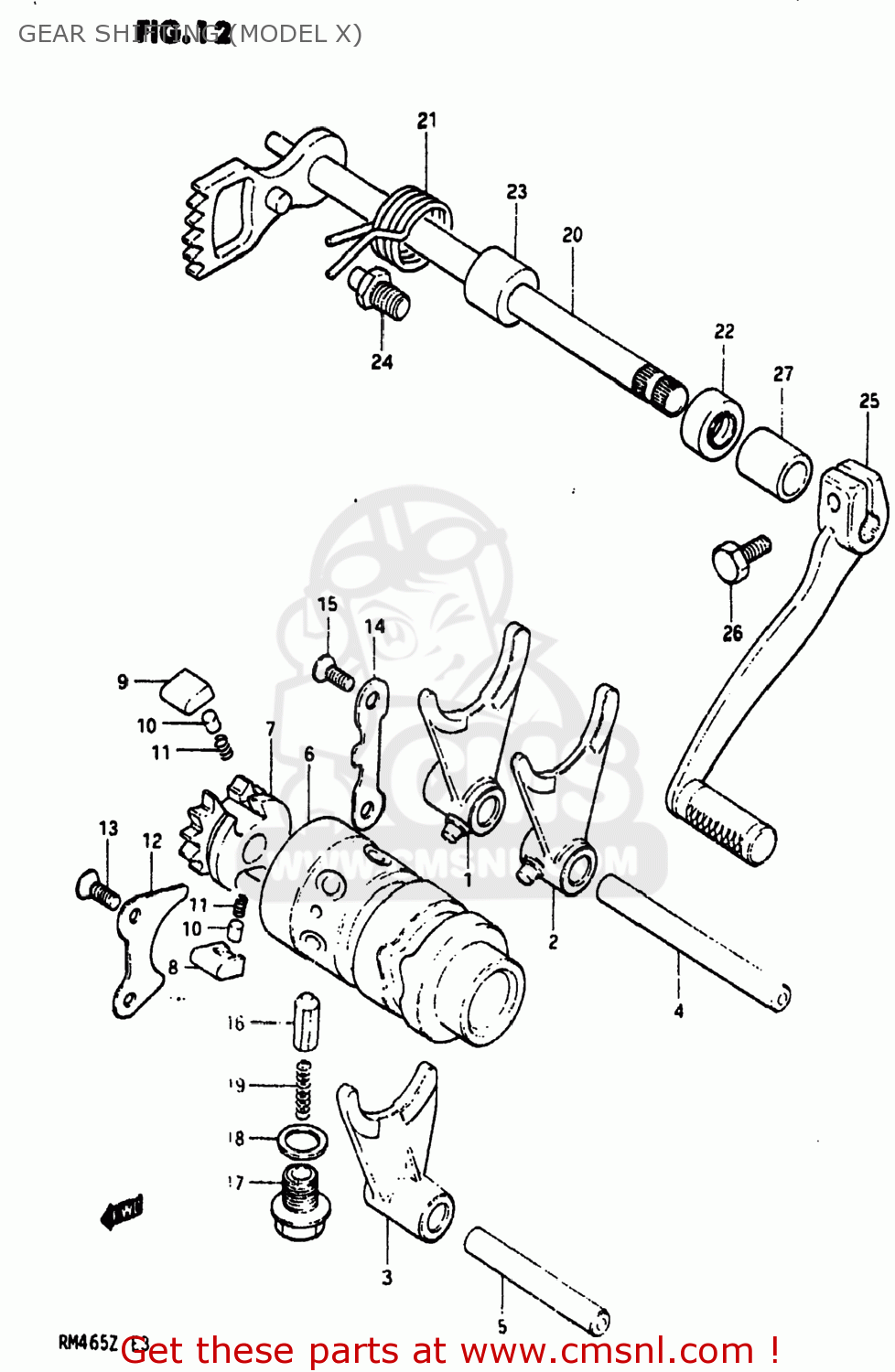

Gear shifting (model x) diagram RM465 1981 (X) USA (E03)
GEAR SHIFTING (MODEL X) RM465 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521140400
ref: 1
FORK,GEAR SHIFT NO.1
€ 45.50
2
2522140400
ref: 2
25221-40X01
FORK,GEAR SHIFT NO.2
€ 70.50
3
2523140400
ref: 3
FORK,GEAR SHIFT NO.3
€ 0.00
4
2541140400
ref: 4
25411-14331
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542140400
ref: 5
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
6
2531014211
ref: 6
25310-14213
CAM,GEAR SHIFT
€ 147.00
7
2532211000
ref: 7
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
8
2532311000
ref: 8
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532411000
ref: 9
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533140400
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 3.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534140400
ref: 14
25341-40001
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
2535111000
ref: 16
25351-11010
STOPPER,GEAR SHIFTING
€ 6.50
17
2535211000
ref: 17
25352-11010
BOLT,GEAR SHAFT CAM STOPPER
€ 4.50
18
0916814004
ref: 18
GASKET(14X19.2X2) (NAS)
€ 2.50
19
0944005011
ref: 19
SPRING
€ 23.00
20
2551014210
ref: 20
SHAFT,GEAR SHIFT
€ 68.50
21
0944426013
ref: 21
SPRING
€ 3.50
22
0928512002
ref: 22
09285-12006
OIL SEAL
€ 7.00
23
0918012068
ref: 23
SPACER(12X20X15.3)
€ 3.00
24
2567101000
ref: 24
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
25
2561014100
ref: 25
LEVER,GEAR SHIFT
€ 47.50
26
0910006091
ref: 26
01500-06207
BOLT
€ 2.00
27
0932013001
ref: 27
CUSHION
€ 6.00
