CARBURETOR (MODEL X)
RM465 1982 (Z) USA (E03)

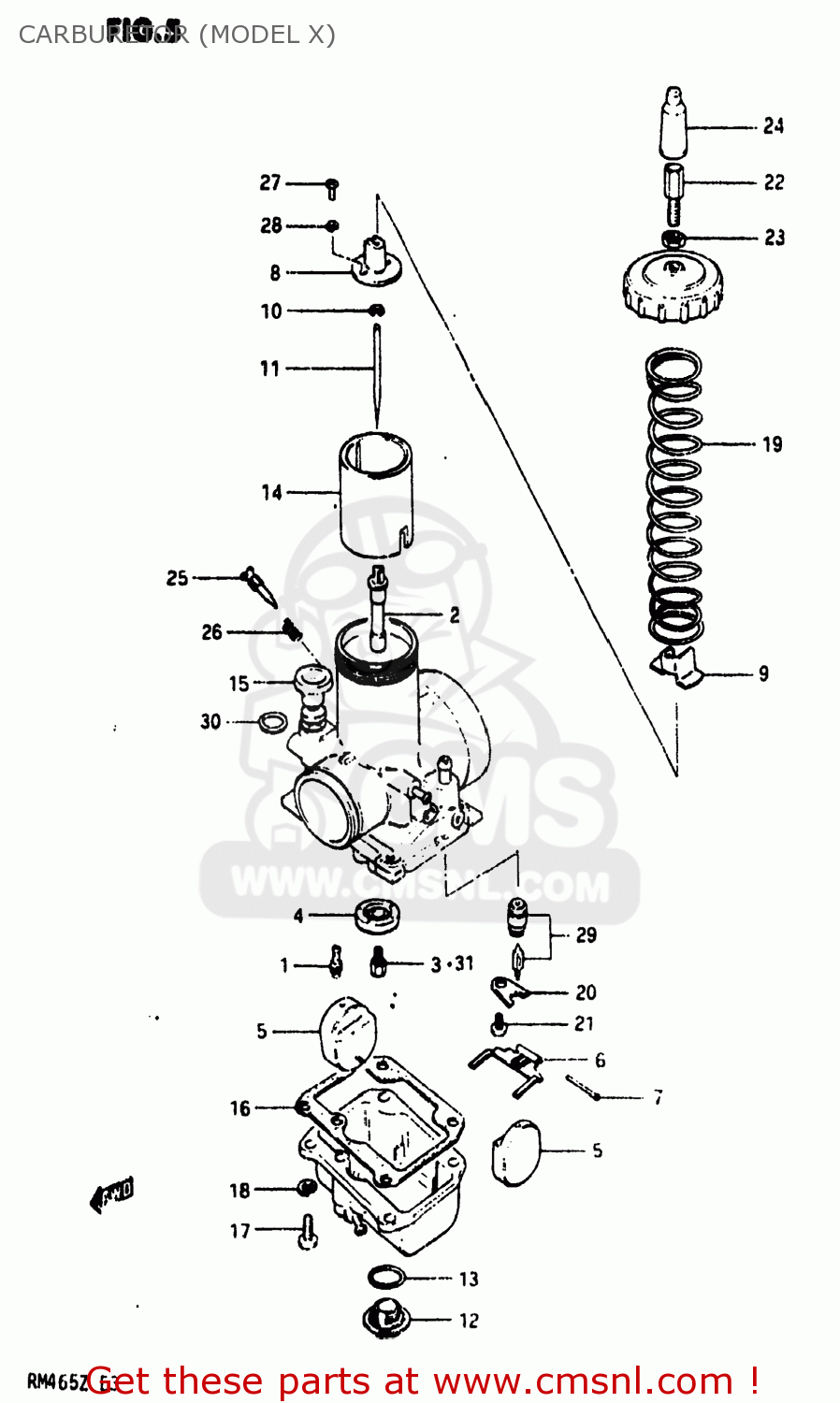

Carburetor (model x) diagram RM465 1982 (Z) USA (E03)
CARBURETOR (MODEL X) RM465 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320014210
ref: 0
13200-14211
CARBURETOR ASSEMBLY
€ 129.50
1
0949260004
ref: 1
JET,PILOT
€ 7.50
2
0949400321
ref: 2
JET,NEEDLE
€ 20.50
3
0949162001
ref: 3
09491-62005
JET
€ 10.50
4
1333140600
ref: 4
RING,MAIN JET FIXING
€ 0.00
5
1325216600
ref: 5
FLOAT
€ 17.50
6
1325340200
ref: 6
ARM,FLOAT
€ 10.00
7
1325401010
ref: 7
PIN,FLOAT
€ 3.00
8
1358140200
ref: 8
CONNECTOR
€ 7.00
9
1362940200
ref: 9
COVER,HOLDER
€ 4.00
10
1339410010
ref: 10
CLIP
€ 4.50
11
1338314200
ref: 11
NEEDLE JET
€ 8.50
12
1324740600
ref: 12
PLUG
€ 8.00
13
0928020003
ref: 13
O RING(D:1.5,ID:19.5)
€ 2.50
14
1355114200
ref: 14
VALVE,THROTTLE
€ 84.00
15
1341014100
ref: 15
VALVE ASSEMBLY,STARTER
€ 38.00
16
1325140230
ref: 16
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
17
0211205168
ref: 17
02112-05167
SCREW
€ 2.50
18
0832121058
ref: 18
08321-0105A
LOCK WASHER
€ 2.00
19
1357316601
ref: 19
SPRING
€ 1.50
20
1337339110
ref: 20
PLATE
€ 6.50
21
0211204068
ref: 21
02112-0406B
SCREW 4X6
€ 2.00
22
1357741612
ref: 22
ADJUSTER,CABLE
€ 8.00
23
1366116600
ref: 23
NUT
€ 5.00
24
1368133010
ref: 24
CAP,CABLE ADJUSTER
€ 8.00
25
1326915010
ref: 25
SCREW,PILOT AIR
€ 10.50
26
1326801010
ref: 26
SPRING
€ 3.50
27
0211203088
ref: 27
02112-03087
SCREW
€ 1.50
28
0832121038
ref: 28
09162-03001
LOCK WASHER
€ 1.50
29
1337040230
ref: 29
13370-40600
VALVE ASSEMBLY,NEEDLE
€ 48.50
30
1329515010
ref: 30
09280-08014
O-RING
€ 3.00
31-1
0949160003
ref: 31-1
09491-60007
JET
€ 9.50
31-2
0949164001
ref: 31-2
09491-64002
JET
€ 8.50
31-3
0949166001
ref: 31-3
09491-66002
JET
€ 10.50
31-4
0949168001
ref: 31-4
09491-68002
JET
€ 8.50
31-5
0949170008
ref: 31-5
09491-70011
JET
€ 8.50
