TRANSMISSION (MODEL Z)
RM465 1982 (Z) USA (E03)

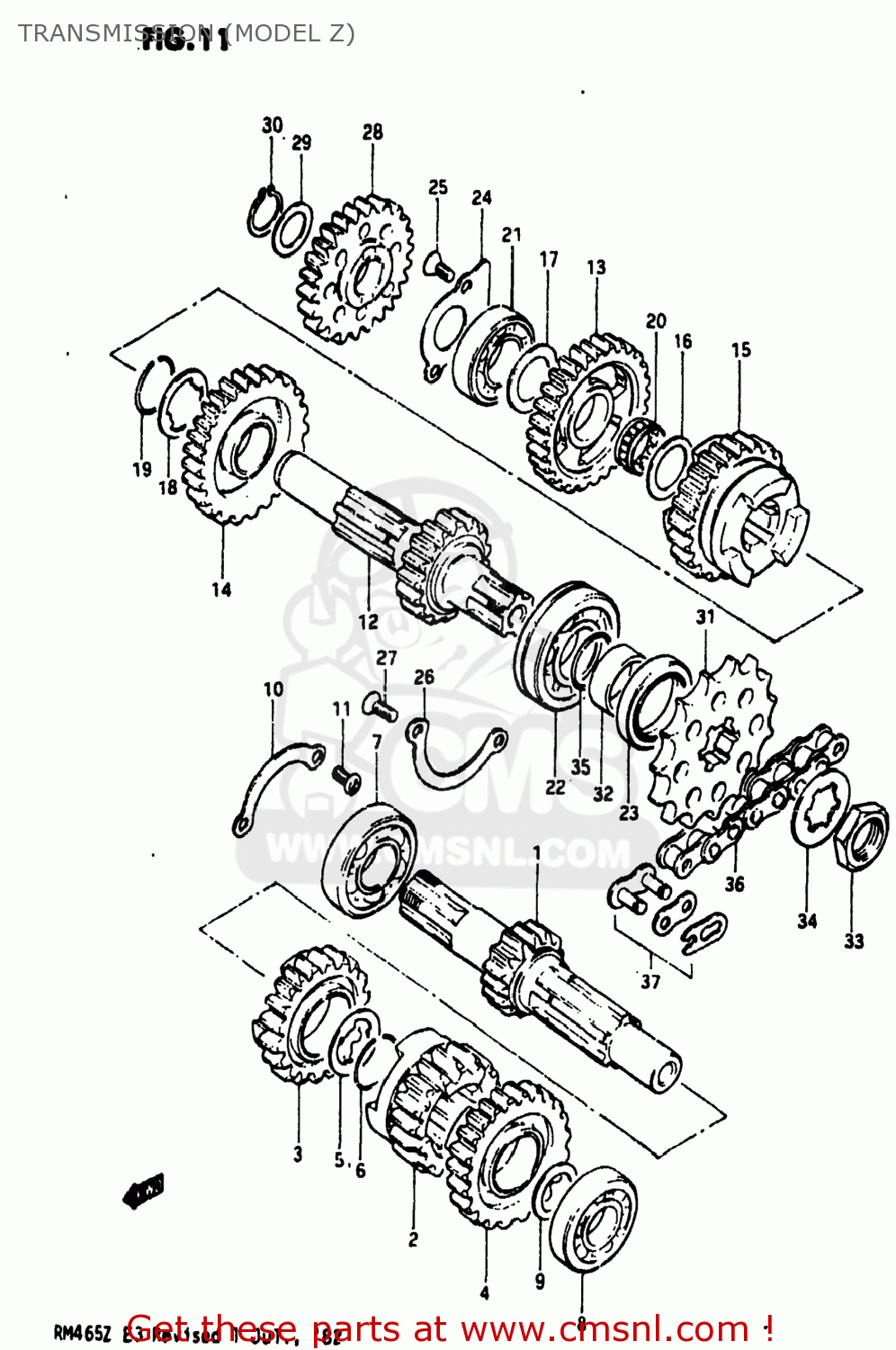

Transmission (model z) diagram RM465 1982 (Z) USA (E03)
TRANSMISSION (MODEL Z) RM465 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412014220
ref: 1
SHAFT,COUNTER
€ 152.50
2
2422114220
ref: 2
GEAR,SECOND DRIVE
€ 51.50
3
2423014220
ref: 3
GEAR,THIRD DRIVE
€ 39.50
4
2424014220
ref: 4
GEAR,FOURTH DRIVE
€ 52.00
5
0821125301
ref: 5
WASHER
€ 3.00
6
0938025003
ref: 6
RING,SNAP
€ 3.00
7
0926222006
ref: 7
09262-22025
BEARING
€ 63.50
8
0811360040
ref: 8
09262-20106
BEARING, LH
€ 20.50
9
0821120283
ref: 9
WASHER
€ 2.50
10
2474114210
ref: 10
RETAINER,BEARING
€ 0.00
11
0211206128
ref: 11
02112-06127
SCREW 6X12
€ 2.00
12
2413014220
ref: 12
SHAFT,DRIVE
€ 102.00
13
2431114220
ref: 13
GEAR,FIRST DRIVEN
€ 51.00
14
2432014220
ref: 14
GEAR,SECOND DRIVEN
€ 42.00
15
2433114220
ref: 15
GEAR,THIRD DRIVEN
€ 68.50
16
0821120301
ref: 16
WASHER
€ 3.00
17
0821120363
ref: 17
WASHER
€ 3.50
18
0916728004
ref: 18
WASHER
€ 0.00
19
0938028004
ref: 19
CIRCLIP
€ 1.50
20
0926320018
ref: 20
BEARING(20X24X10).8
€ 14.00
21
0926420002
ref: 21
BEARING
€ 25.50
22
0926228004
ref: 22
BEARING(28X58X16)
€ 33.00
23
0928335023
ref: 23
SEAL,OIL(35X45X6)
€ 9.50
24
2475114211
ref: 24
24751-14212
RETAINER,DRIVESHAFT
€ 0.00
25
0212206128
ref: 25
02122-06127
SCREW
€ 3.00
26
2475214220
ref: 26
PLATE,DRIVESHAFT BEARING
€ 5.50
27
0212206128
ref: 27
02122-06127
SCREW
€ 3.00
28
2626014200
ref: 28
26260-14201
GEAR,KICK STARTER IDLE
€ 41.00
29
0821120281
ref: 29
09181-20167
WASHER,THRUST
€ 2.50
30
0833111209
ref: 30
08331-3120A
CIRCLIP
€ 2.50
31-1
2751114220
ref: 31-1
SPROCKET,ENGINE (NT:14)
€ 24.50
31-2
2751114230
ref: 31-2
SPROCKET,ENGINE(NT:13)
€ 19.00
31-3
2751114240
ref: 31-3
SPROCKET,ENGINE (NT:15)
€ 21.00
32
0918028003
ref: 32
SPACER(28X35X11.4)
€ 11.50
33
0914028001
ref: 33
09140-28003
NUT
€ 8.00
34
0916728003
ref: 34
WASHER,LOCK
€ 6.50
35
0928028004
ref: 35
O RING(D:1.5,ID:27.7)
€ 7.50
36
2760014252
ref: 36
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
37-1
2762014252
ref: 37-1
JOINT ASSEMBLY,CHAIN
€ 3.00
37-2
2762014261
ref: 37-2
27620-14262
JOINT ASSEMBLY,CHAIN
€ 0.00
