REAR BRAKE
RM465 1982 (Z) USA (E03)

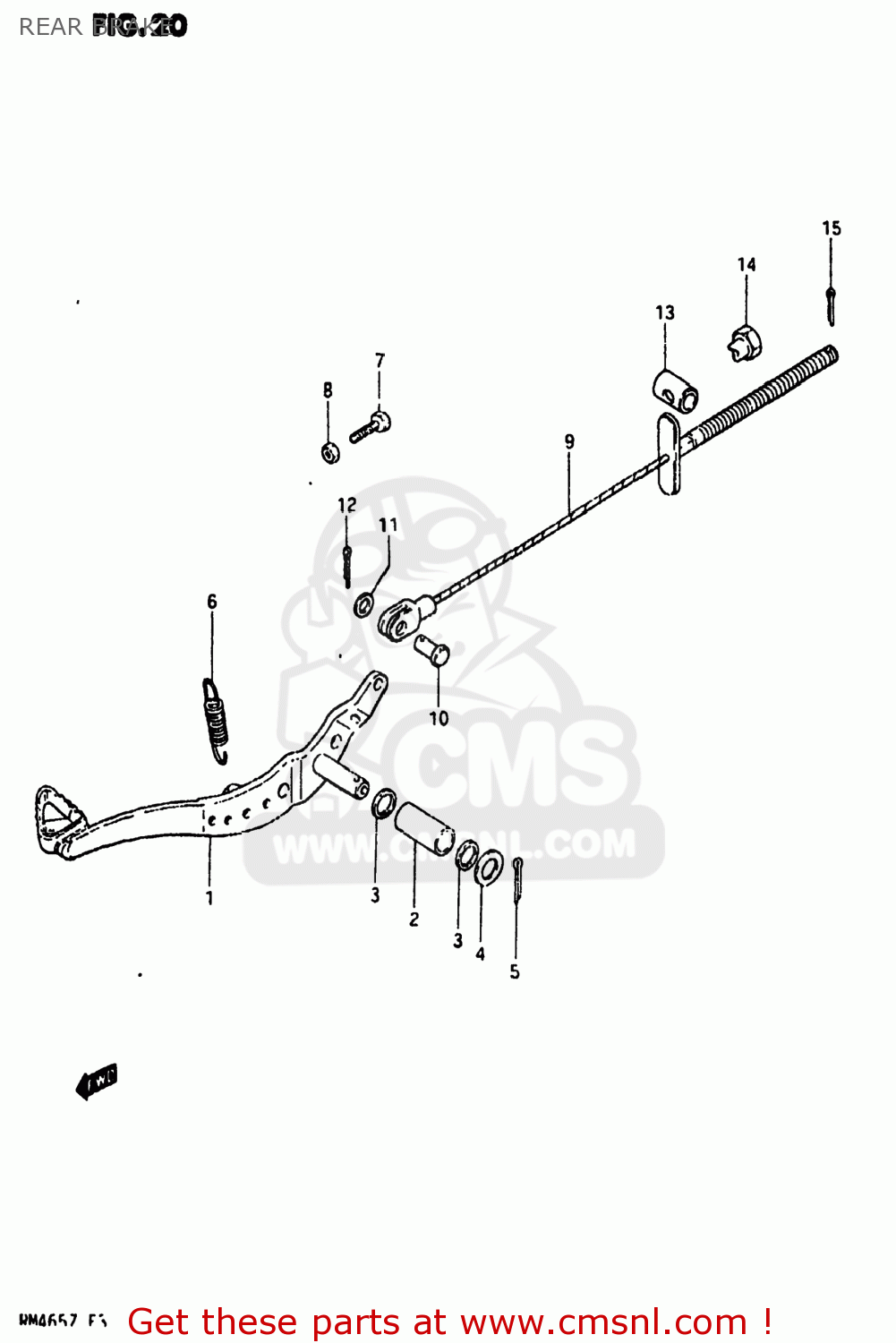

Rear brake diagram RM465 1982 (Z) USA (E03)
REAR BRAKE RM465 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311014201
ref: 1-1
43110-14202
PEDAL,BRAKE
€ 45.50
1-2
4311014202
ref: 1-2
PEDAL,BRAKE
€ 45.50
2
0931912022
ref: 2
BUSHING
€ 19.50
3
0928012006
ref: 3
O RING(D:2.2,ID:11.8)
€ 2.50
4
0821112223
ref: 4
WASHER
€ 2.50
5
0411130208
ref: 5
04111-3020A
PIN 30X20
€ 1.50
6
0944831024
ref: 6
09448-31024-XC0
SPRING
€ 9.00
7-1
0910006009
ref: 7-1
BOLT(6X23)
€ 1.50
7-2
0912806028
ref: 7-2
SCREW(6X23)
€ 2.00
8
0831011068
ref: 8
08310-00067
NUT
€ 2.50
9-1
5851014200
ref: 9-1
58510-14A00
CABLE ASSEMBLY,REAR BRAKE
€ 13.00
9-2
5851014201
ref: 9-2
58510-14A00
CABLE,REAR BRAKE
€ 13.00
10
0920005001
ref: 10
PIN(L:17.5)
€ 1.50
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0411120208
ref: 12
04111-2020A
PIN 20X20
€ 1.50
13
0920913004
ref: 13
PIN
€ 7.50
14
0915006001
ref: 14
09150-06010
NUT
€ 3.50
15
0411120158
ref: 15
04111-2015A
PIN
€ 1.50
