TRANSMISSION (MODEL X)
RM465 1982 (Z) USA (E03)

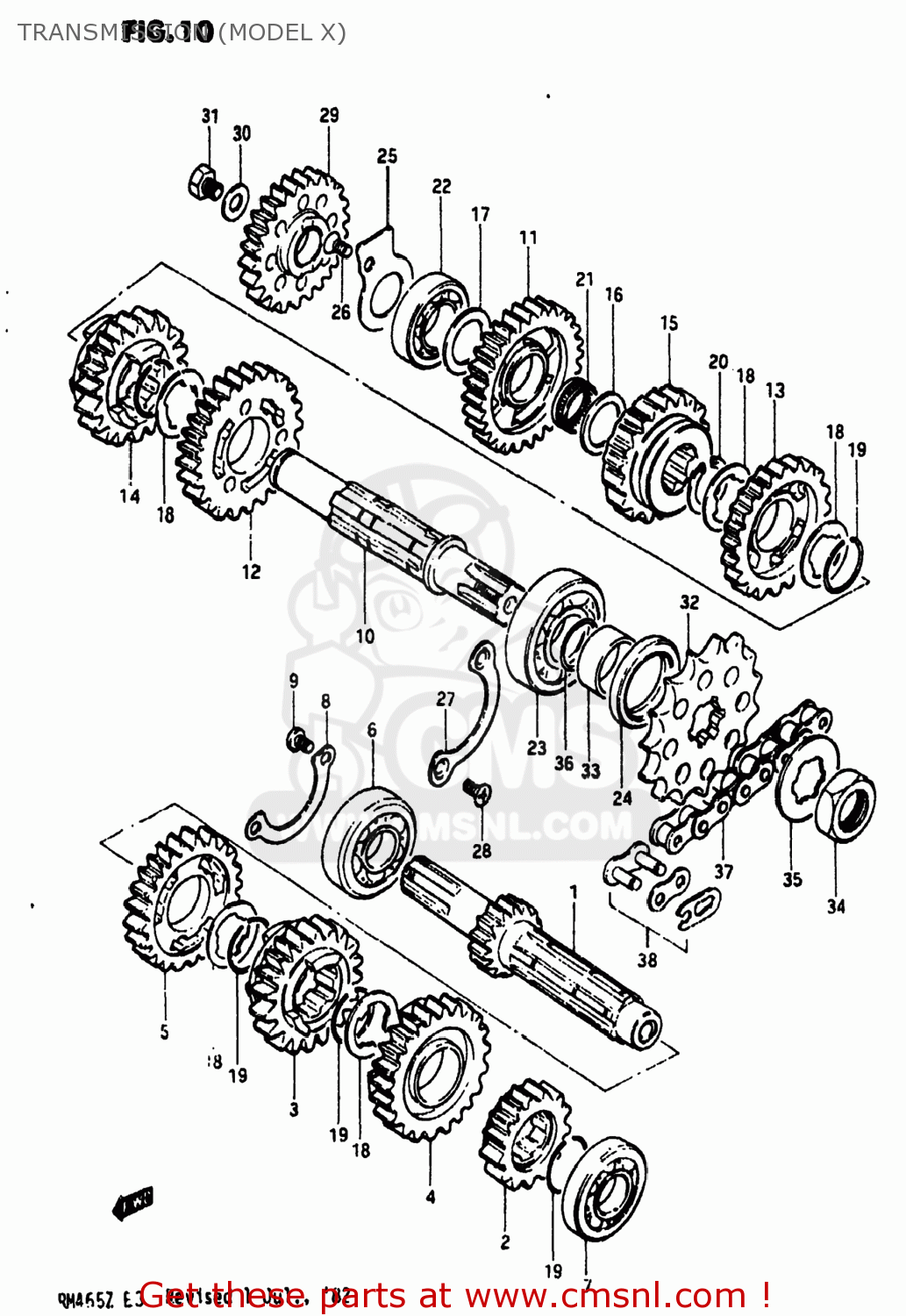

Transmission (model x) diagram RM465 1982 (Z) USA (E03)
TRANSMISSION (MODEL X) RM465 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412014211
ref: 1
SHAFT,COUNTER
€ 95.00
2
2422114211
ref: 2
GEAR,SECOND DRIVE
€ 68.00
3
2423114990
ref: 3
GEAR,THIRD DRIVE
€ 65.00
4
2424014211
ref: 4
GEAR,FOURTH DRIVE
€ 76.00
5
2425114211
ref: 5
GEAR,FIFTH DRIVE
€ 76.00
6
0926222006
ref: 6
09262-22025
BEARING
€ 63.50
7
0811360040
ref: 7
09262-20106
BEARING, LH
€ 20.50
8
2474114210
ref: 8
RETAINER,BEARING
€ 0.00
9
0211206128
ref: 9
02112-06127
SCREW 6X12
€ 2.00
10
2413114990
ref: 10
SHAFT,DRIVE
€ 156.50
11
2431114210
ref: 11
GEAR,FIRST DRIVEN
€ 76.00
12
2432014211
ref: 12
GEAR,SECOND DRIVEN
€ 76.00
13
2433114211
ref: 13
GEAR,THIRD DRIVEN
€ 61.50
14
2434114212
ref: 14
GEAR,FOURTH DRIVEN
€ 59.00
15
2435114211
ref: 15
GEAR,FIFTH DRIVEN
€ 76.00
16
0821120301
ref: 16
WASHER
€ 3.00
17
0821120363
ref: 17
WASHER
€ 3.50
18
0916725012
ref: 18
WASHER,LOCK
€ 3.50
19
0938025006
ref: 19
RING,SNAP
€ 2.00
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21
0926320018
ref: 21
BEARING(20X24X10).8
€ 14.00
22
0926420002
ref: 22
BEARING
€ 25.50
23
0926222013
ref: 23
BEARING(22X56X16)
€ 58.00
24
0928332003
ref: 24
SEAL,OIL(32X42X6)
€ 3.50
25
2475114211
ref: 25
24751-14212
RETAINER,DRIVESHAFT
€ 0.00
26
0212206128
ref: 26
02122-06127
SCREW
€ 3.00
27
2475214210
ref: 27
PLATE,DRIVESHAFT BEARING
€ 3.50
28
0212206128
ref: 28
02122-06127
SCREW
€ 3.00
29
2626014200
ref: 29
26260-14201
GEAR,KICK STARTER IDLE
€ 41.00
30
0821120281
ref: 30
09181-20167
WASHER,THRUST
€ 2.50
31
0110708168
ref: 31
01500-0816B
BOLT
€ 2.00
32-1
2751114210
ref: 32-1
SPROCKET,ENGINE (NT:14)
€ 24.50
32-2
2751141110
ref: 32-2
SPROCKET,ENGINE
€ 25.00
32-3
2751141130
ref: 32-3
SPROCKET,ENGINE
€ 17.50
33
0918022007
ref: 33
SPACER(22X32X11.5)
€ 10.00
34
0914022006
ref: 34
NUT
€ 6.00
35
0916722005
ref: 35
WASHER,LOCK
€ 2.50
36
0928022003
ref: 36
O RING(D:1.7,ID:22)
€ 2.50
37
2760014250
ref: 37
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
38-1
2762014252
ref: 38-1
JOINT ASSEMBLY,CHAIN
€ 3.00
38-2
2762014261
ref: 38-2
27620-14262
JOINT ASSEMBLY,CHAIN
€ 0.00
