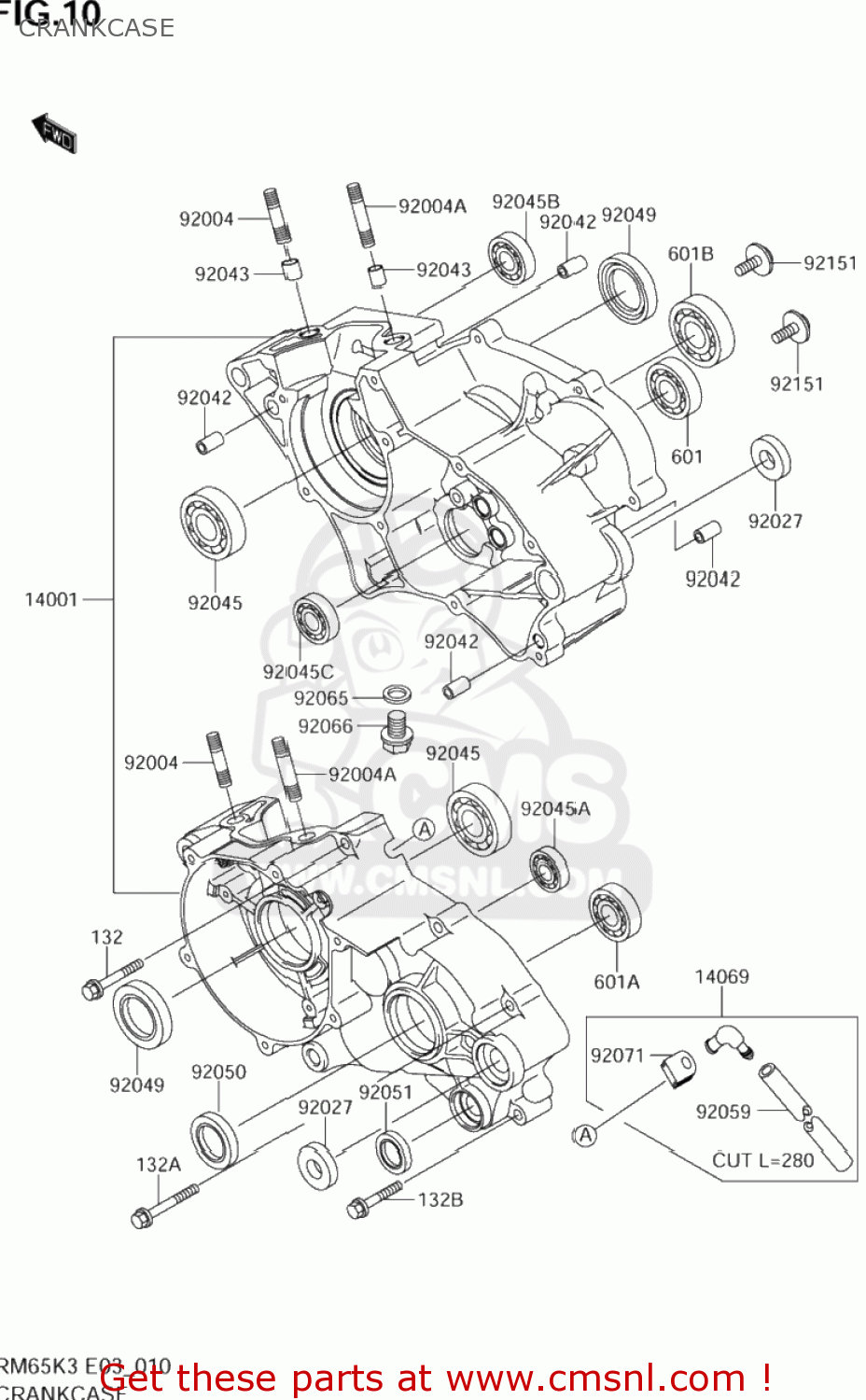

CRANKCASE

ref

part #

description

quantity

132

KK132G0640
ref: 132

BOLT-FLANGED-SMALL,6X40

€ 1.50

132A

KK132G0655
ref: 132A

BOLT FLANGED,S

€ 2.00

132B

KK132V0635
ref: 132B

BOLT,FLANGED S

€ 1.50

601

KK601A6002
ref: 601

BEARING-BALL,#6002

€ 8.50

601A

KK601A6004
ref: 601A

BEARING-BALL,#6004

€ 9.00

601B

KK601A6203
ref: 601B

BEARING-BALL,#6203

€ 12.00

14001

K140011318
ref: 14001

SET CRANKCASE

€ 418.00

14069

K140691001
ref: 14069
K1406-91062

BREATHER

€ 16.00

92004

K920041245
ref: 92004

STUD,8X28.5

€ 3.50

92004A

K920041246
ref: 92004A
K9200-40020

STUD,8X37

€ 3.50

92027

K920271744
ref: 92027

COLLAR,12.1X26X6

€ 6.00

92042

KK92042007
ref: 92042

PIN,DOWEL,6.3X8X14

€ 5.00

92043

K920431264
ref: 92043

PIN,8.2X10X14

€ 2.50

92045

K920451059
ref: 92045

BEARING-BALL,R-6304C3

€ 29.00

92045A

K920451235
ref: 92045A

BEARING-BALL,6001C3ML01

€ 14.00

92045B

K920451304
ref: 92045B

BEARING-BALL,626MC3

€ 10.50

92045C

K920451432
ref: 92045C

BEARING-BALL,6805JRZ

€ 21.00

92049

K920491188
ref: 92049

SEAL-OIL,SD20407GS

€ 15.00

92050

KK92050013
ref: 92050

SEAL-OIL,SC25376

€ 11.50

92051

KK92051005
ref: 92051

SEAL-OIL,TB13225.5

€ 6.50

92059

K920591939
ref: 92059

TUBE,6X9X280

€ 9.00

92065

KK92065058
ref: 92065

GASKET,10.5X16X1 (NAS)

€ 3.50

92066

K920661437
ref: 92066

PLUG,DRAIN

€ 5.50

92071

KK92071042
ref: 92071

GROMMET,BREATHER

€ 2.50

92151

K921511762
ref: 92151

BOLT,6X16

€ 1.50
