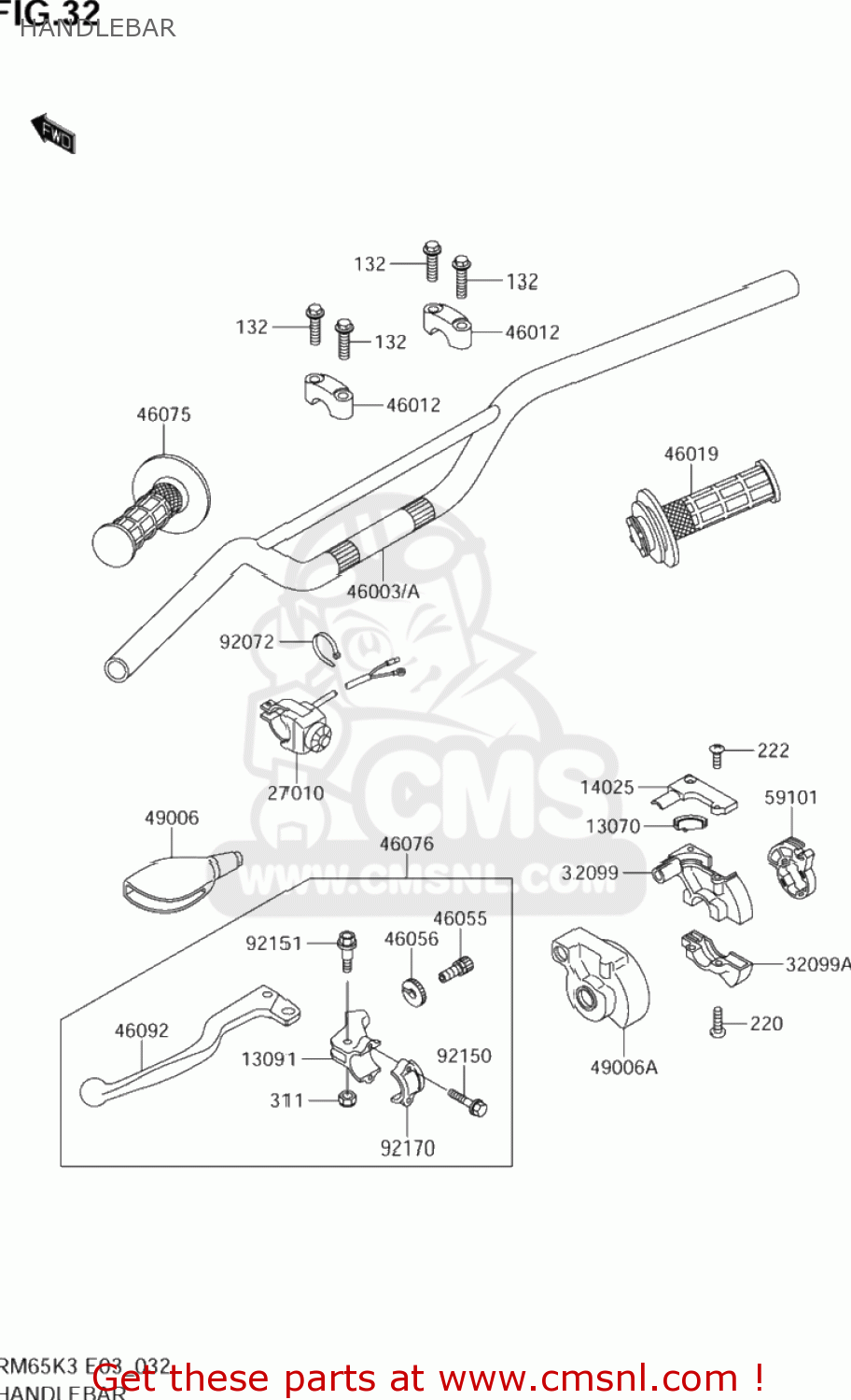

HANDLEBAR

ref

part #

description

quantity

132

KK132G0830
ref: 132
K132B-A0830

BOLT FLANGED,S

€ 1.50

220

KK220C0518
ref: 220
K220A-B0518

SCREW-PAN-CROS,5X18

€ 1.50

222

KK222E0412
ref: 222

SCREW-CSK-RD-CROS

€ 2.00

311

KK311B0500
ref: 311
K311A-A0500

NUT HEX

€ 1.00

13070

K130701074
ref: 13070

GUIDE,THROTTLE

€ 3.50

13091

K130911728
ref: 13091

HOLDER,CLUTCH LEVER

€ 26.50

14025

K140251646
ref: 14025

COVER,THROTTLE CASE UPP

€ 7.50

27010

K270101415
ref: 27010

SWITCH,ENGINE STOP

€ 31.50

32099

K320991036
ref: 32099

CASE,THROTTLE UPP

€ 20.00

32099A

K320991044
ref: 32099A
K3209-90038

CASE,THROTTLE LWR

€ 14.00

46003

KK460030030CE
ref: 46003

HANDLE,SILVER

€ 51.50

46003A

KK460031577CE
ref: 46003A
KK460-03003-0CE

HANDLE,SILVER

€ 51.50

46012

K460121191
ref: 46012

HOLDER-HANDLE,UPP

€ 16.00

46019

K460191054
ref: 46019

GRIP-ASSY,THROTTLE

€ 29.00

46055

KK46055003
ref: 46055

SCREW,CABLE ADJUST,8MM

€ 10.00

46056

KK46056005
ref: 46056

NUT,CABLE ADJUST LOCK,8MM

€ 5.50

46075

K460751024
ref: 46075

GRIP,LH

€ 16.50

46076

K460761241
ref: 46076

LEVE ASSY,GRIP CLUTCH

€ 38.00

46092

K460921165
ref: 46092

LEVER-GRIP,CLUTCH

€ 17.50

49006

K490061017
ref: 49006

BOOT,LEVER HOLDER

€ 17.50

49006A

K490061097
ref: 49006A

BOOT,THROTTLE CASE

€ 17.00

59101

K591011110
ref: 59101

REEL,THROTTLE

€ 6.50

92072

KK92072030
ref: 92072

BAND,L=123

€ 2.50

92150

K921501474
ref: 92150

BOLT

€ 3.00

92151

K921511103
ref: 92151

BOLT,LEVER SET,5MM

€ 5.50

92170

K921701226
ref: 92170

CLAMP,LEVER HOLDER

€ 22.50
