CRANKSHAFT/PISTON
RM65 2004 (K4) USA (E03)

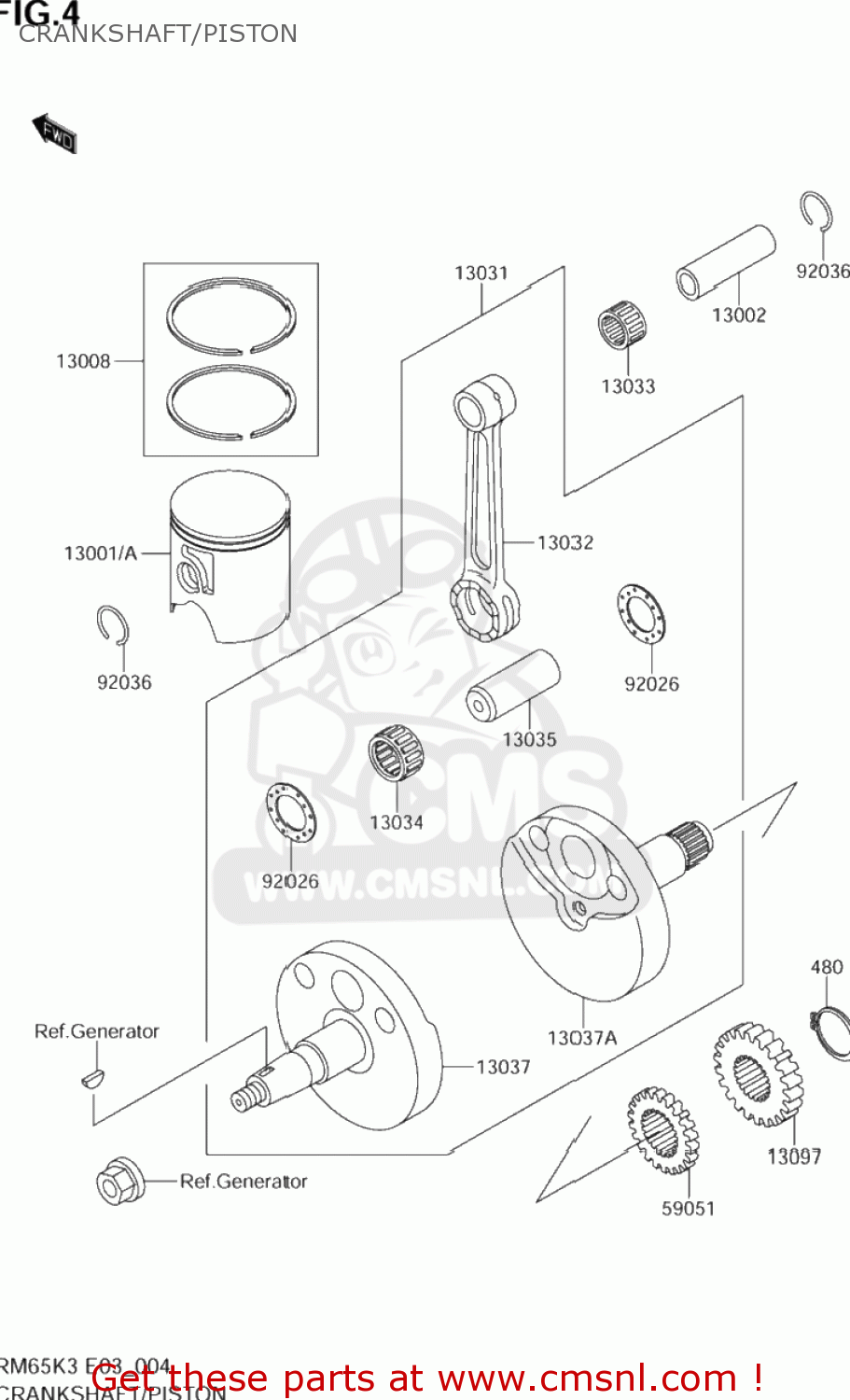

Crankshaft/piston diagram RM65 2004 (K4) USA (E03)
CRANKSHAFT/PISTON RM65 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
480
KK480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
€ 1.50
13001
K130010040
ref: 13001
PISTON-ENGINE,B
€ 55.00
13001A
K130011630
ref: 13001A
PISTON-ENGINE
€ 63.50
13002
K130021119
ref: 13002
PIN-PISTON
€ 11.00
13008
K130081199
ref: 13008
RING-SET-PISTON
€ 53.00
13031
K130311467
ref: 13031
CRANKSHAFT-COMP
€ 314.50
13032
K130321246
ref: 13032
ROD-CONNECTING
€ 24.50
13033
KK13033028
ref: 13033
K1303-30002
BEARING,NEEDLE
€ 13.00
13034
K130341107
ref: 13034
BEARING-BIG END,B4
€ 34.00
13035
K130351002
ref: 13035
PIN-CRANK
€ 14.50
13037
K130371615
ref: 13037
CRANKSHAFT,LH
€ 119.50
13037A
K130371616
ref: 13037A
CRANKSHAFT,RH
€ 119.50
13097
K130971413
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 48.00
59051
K590511146
ref: 59051
GEAR-SPUR,PUMP,23T
€ 17.00
92026
K920261522
ref: 92026
SPACER
€ 5.50
92036
KK92036007
ref: 92036
RING-SNAP,PISTON PIN
€ 3.50
