KICKSTARTER MECHANISM
RM65 2004 (K4) USA (E03)

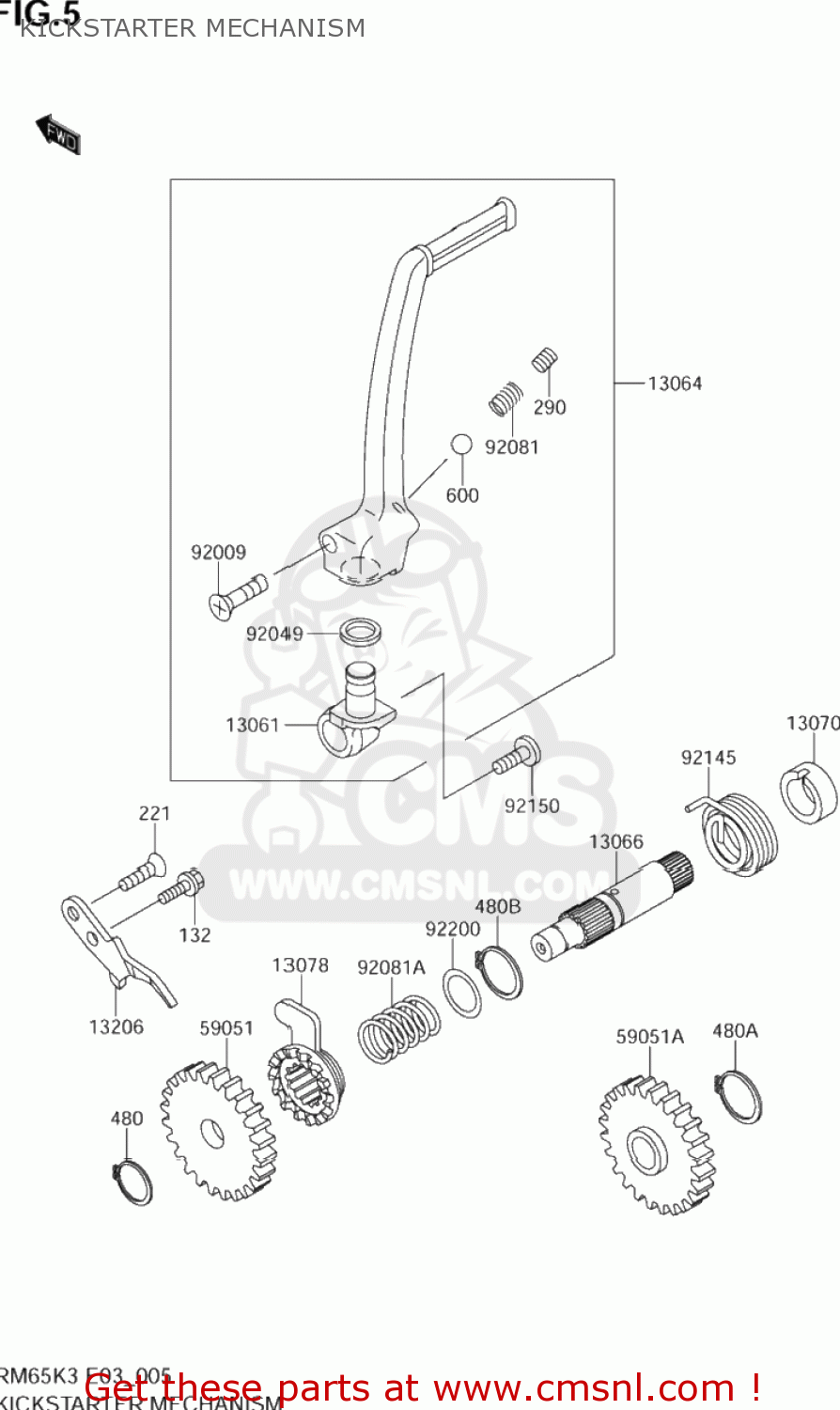

Kickstarter mechanism diagram RM65 2004 (K4) USA (E03)
KICKSTARTER MECHANISM RM65 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
132
KK132G0616
ref: 132
K132B-A0616
BOLT FLANGED S
€ 1.00
221
KK221B0618
ref: 221
SCREW-CSK-CROS,6X18
€ 1.50
290
KK290P0808
ref: 290
K290C-A0808
SCREW SET SOCK
€ 2.50
480
KK480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 1.50
480A
KK480J1500
ref: 480A
CIRCLIP-TYPE-C,15MM
€ 1.00
480B
KK480J1600
ref: 480B
CIRCLIP-TYPE-C,16MM
€ 1.50
600
KK600A0800
ref: 600
BALL-STEEL,1/4
€ 1.50
13061
K130611712
ref: 13061
BOSS,KICK PEDAL
€ 18.50
13064
K130641196
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 89.50
13066
K130661097
ref: 13066
SHAFT KICK
€ 52.50
13070
K130701314
ref: 13070
GUIDE
€ 3.50
13078
K130781004
ref: 13078
RATCHET
€ 28.50
13206
K132061067
ref: 13206
GUIDE-KICK
€ 4.00
59051
K590511026
ref: 59051
GEAR-SPUR,32T
€ 33.00
59051A
K590511027
ref: 59051A
GEAR-SPUR,30T
€ 34.50
92009
K920091607
ref: 92009
SCREW,6X27
€ 5.50
92049
K920491468
ref: 92049
SEAL-OIL,SR12162.5
€ 3.00
92081
KK92081020
ref: 92081
SPRING,KICK PEDAL
€ 3.50
92081A
KK92081122
ref: 92081A
SPRING,RATCHET
€ 5.50
92145
K921451058
ref: 92145
SPRING
€ 8.50
92150
K921501737
ref: 92150
BOLT,SOCKET,6X16
€ 9.00
92200
K922001209
ref: 92200
WASHER,KICKSHAFT
€ 3.50
