CARBURETOR (MODEL E/F)
RM80 1983 (D) USA (E03)

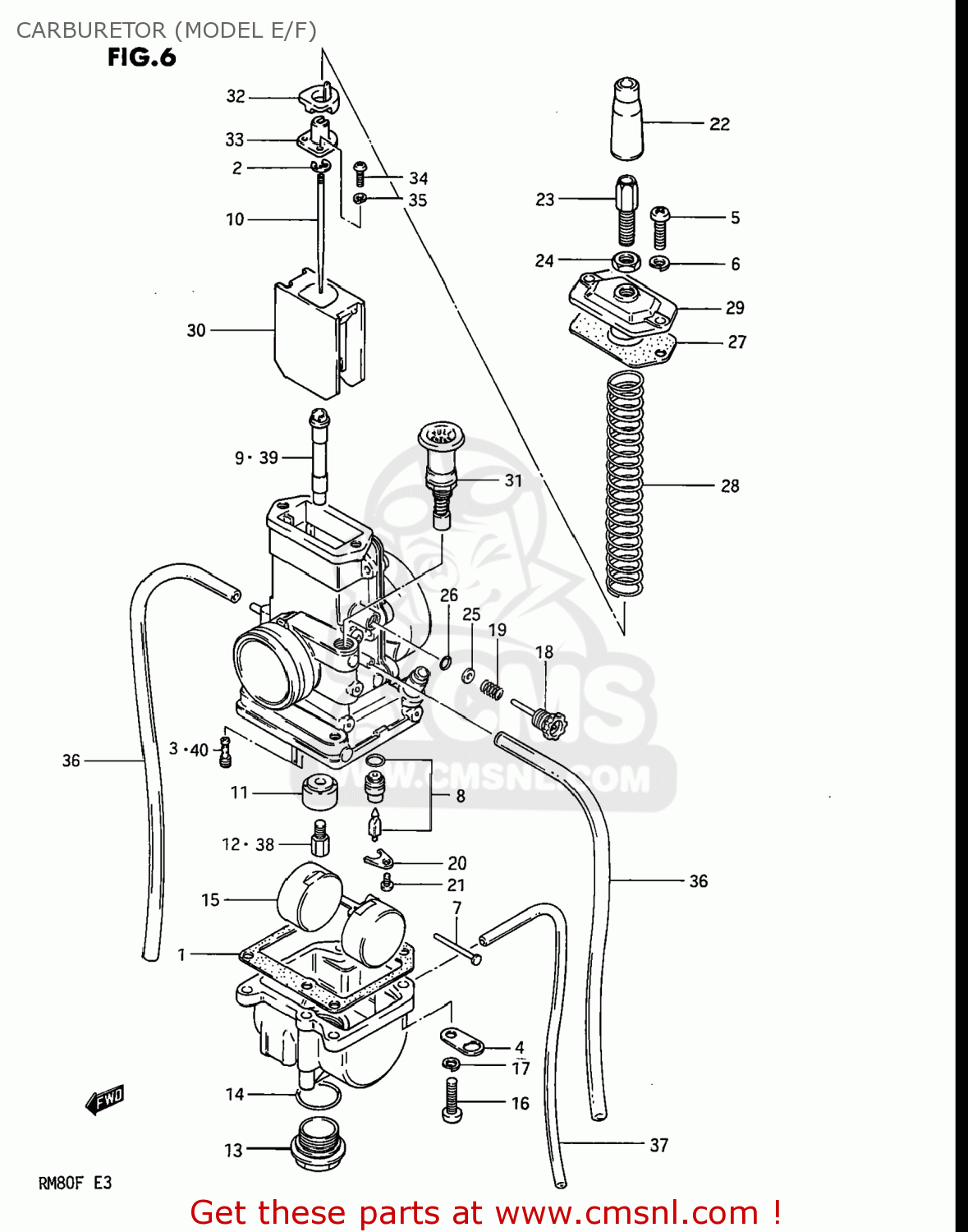

Carburetor (model e/f) diagram RM80 1983 (D) USA (E03)
CARBURETOR (MODEL E/F) RM80 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320020911
ref:
CARBURETOR ASSEMBLY (VM26)
€ 322.00
1
1325129630
ref: 1
GASKET,FLOAT CHAMBER (NAS)
€ 7.00
2
1339410010
ref: 2
CLIP
€ 4.50
3
0949230003
ref: 3
09492-30006
JET
€ 8.50
4
1369336500
ref: 4
PLATE,CARBURETOR
€ 3.50
5
0211204126
ref: 5
02112-0412A
SCREW
€ 1.50
6
0832121046
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337046900
ref: 8
VALVE ASSY,NEEDLE
€ 54.50
9-1
0949400458
ref: 9-1
09494-00466
JET,NEEDLE
€ 0.00
9-2
0949400466
ref: 9-2
JET,NEEDLE
€ 0.00
10
1338346900
ref: 10
NEEDLE,JET(5DP39-4)
€ 11.50
11
1333128710
ref: 11
RING
€ 8.50
12
0949134002
ref: 12
JET,MAIN(170)
€ 7.00
13
1324746900
ref: 13
PLUG
€ 12.50
14
1324629630
ref: 14
O RING
€ 5.00
15
1325229630
ref: 15
FLOAT
€ 22.50
16
0211204168
ref: 16
02112-0416A
SCREW
€ 1.00
17
0832121048
ref: 17
08321-0104A
LOCK WASHER
€ 2.00
18
1326716700
ref: 18
ADJUSTER,THROTTLE STOP
€ 11.00
19
1326835010
ref: 19
SPRING
€ 3.00
20
1337339110
ref: 20
PLATE
€ 6.50
21
0211204086
ref: 21
02112-0408A
SCREW
€ 2.00
22
1368133010
ref: 22
CAP,CABLE ADJUSTER
€ 8.00
23
1357741612
ref: 23
ADJUSTER,CABLE
€ 8.00
24
1366116600
ref: 24
NUT
€ 5.00
25
1329135010
ref: 25
WASHER
€ 2.50
26
1329533010
ref: 26
O RING
€ 4.50
27
1326616700
ref: 27
GASKET,CARBURETOR TOP (NAS)
€ 6.00
28
1357316700
ref: 28
SPRING
€ 6.00
29
1326116700
ref: 29
CAP,CARBURETOR TOP
€ 14.50
30
1355120910
ref: 30
VALVE,THROTTLE
€ 56.50
31
1340020910
ref: 31
13410-26410
VALVE ASSEMBLY,STARTER
€ 36.00
32
1362916700
ref: 32
RING
€ 11.50
33
1339816700
ref: 33
JOINT
€ 7.00
34
0211203106
ref: 34
02112-0310B
SCREW
€ 1.50
35
0832121036
ref: 35
08321-2103B
LOCK WASHER
€ 1.50
36
1368305310
ref: 36
44420-44AR0
HOSE
€ 5.50
37
1368416710
ref: 37
13684-40A00
HOSE
€ 7.50
38-1
0949130003
ref: 38-1
09491-30017
JET
€ 12.00
38-2
0949132002
ref: 38-2
JET,MAIN(160)
€ 6.50
38-3
0949136003
ref: 38-3
09491-36006
JET
€ 15.00
38-4
0949138003
ref: 38-4
09491-38009
JET
€ 10.00
38-5
0949140004
ref: 38-5
09491-40006
JET
€ 11.50
38-6
0949142001
ref: 38-6
09491-42005
JET,MAIN (210)
€ 11.00
39-1
0949400456
ref: 39-1
JET,NEEDLE
€ 0.00
39-2
0949400457
ref: 39-2
JET,NEEDLE
€ 0.00
39-3
0949400461
ref: 39-3
JET,NEEDLE
€ 0.00
40-1
0949225005
ref: 40-1
JET,PILOT(25)
€ 6.50
40-2
0949235004
ref: 40-2
JET,PILOT(35)
€ 7.50
